Name: AMGO BP-9 | 9,000 lb Base Plate Two-Post Lift | Low Ceiling
Brand: AMGO Hydraulics
SKU: BP-9
Price: 2335.0 USD
Availability: InStock

AMGO BP-9 Base Plate Two-Post Lift product view with red columns, yellow lifting arms and base plate floor connection

AMGO BP-9 9,000 lb — The Base Plate Two-Post Built for 9ft Ceiling Garages

The AMGO BP-9 9,000 lb Base Plate Two-Post Lift is built for shops and garages where ceiling height rules out a taller overhead two-post. At 108 inches overall, the BP-9's base plate design delivers shorter columns that fit garages with a ceiling height of 9 feet or higher — without sacrificing the 9,000 lb capacity needed for passenger cars, full-size pickups, and large SUVs.

Four 3-stage symmetric retractable arms cover a wide range of vehicle wheelbases and chassis types through the same bay. AMGO's exclusive dual safety lock structure provides two independent locking mechanisms — a primary lock and a secondary backup — giving the BP-9 a stronger safety stack than a single-lock two-post. A single-point manual release simultaneously unlocks both columns from one side.

Full lift cycle completes in approximately 37 seconds on a 2.0 HP, 220V/60Hz ETL certified power unit.

The BP-9 requires a dedicated 220V/60Hz single-phase circuit. Backed by the AMGO warranty: 5 years on structural components, 3 years on hydraulic components, bronze bushings and sliders, and 2 years on electrical components, sync cable, and lock release cable.

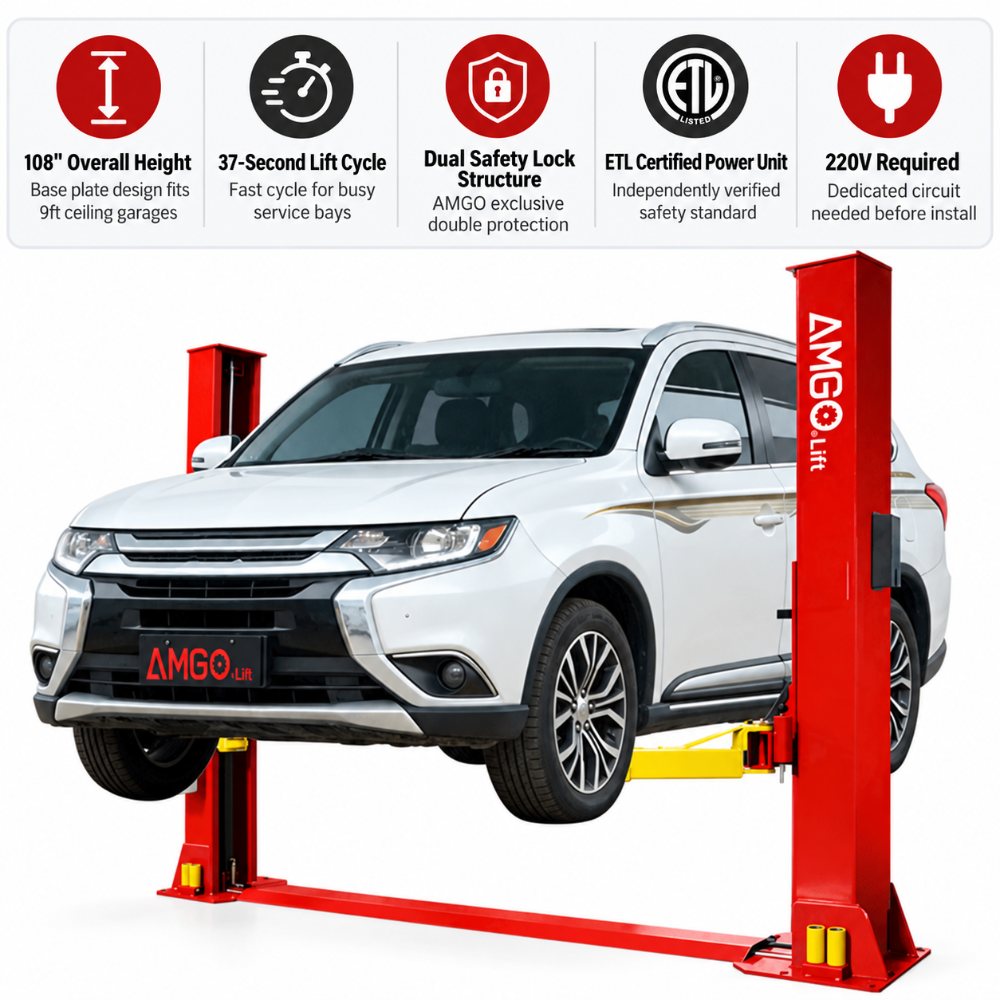

AMGO BP-9 Base Plate Two-Post Lift lifting an SUV with feature bar highlighting 108 inch overall height, 37-second lift cycle, dual safety lock structure, ETL certified power unit and 220V requirement

Why Buy From Bay One Auto Equipment?

Price Match Guarantee

Best Prices Online, Guaranteed

30 Day Easy Returns

No Questions Asked

Expert Support

Real People, Real Answers

Satisfaction Guaranteed

Quality Products, Backed by Us

What Makes the AMGO BP-9 Base Plate Two-Post Lift Stand Out

✔ 108" Overall Height — Fits 9ft Ceiling Garages

Base plate design delivers shorter columns at 108 inches overall — built for garages and shops with a ceiling height of 9 feet or higher. Measure your ceiling against 108 inches plus the roof of your tallest vehicle at full lift height before ordering.

✔ AMGO Exclusive Dual Safety Lock Structure

A primary lock and a secondary backup work together — two independent locking mechanisms holding 9,000 lbs at height rather than relying on a single system.

✔ Four 3-Stage Symmetric Retractable Arms — Wide Vehicle Range

Four 3-stage symmetric retractable arms cover a wide range of vehicle wheelbases and chassis types — from compact cars to full-size pickups and large SUVs within the rated capacity.

✔ 37-Second Lift Cycle — Fast Bay Turnaround

Full lift cycle in approximately 37 seconds — keeps the bay moving between vehicles without waiting on the lift.

✔ ETL Certified Power Unit — Chain-Drive Hydraulic Cylinder

2.0 HP ETL certified power unit with chain-drive hydraulic cylinder for reliable, consistent lifting throughout the cycle.

✔ Single-Point Manual Safety Lock Release

Simultaneously unlocks both columns from one side. Load rests on mechanical locks rather than hydraulic pressure throughout the lift cycle.

✔ 3 5/16" Minimum Pad Height — Clears Low-Profile Vehicles

At 3 5/16 inches, the BP-9 clears low-profile passenger cars, sports coupes, and vehicles with front lips without ramps or blocks.

✔ Self-Lubricating UHMW Polyethylene Sliders

No greasing required — quieter travel and longer service life throughout the lifting range.

✔ Automatic Arm Restraints

Locks the arms in position once placed — no arm movement during the lift cycle.

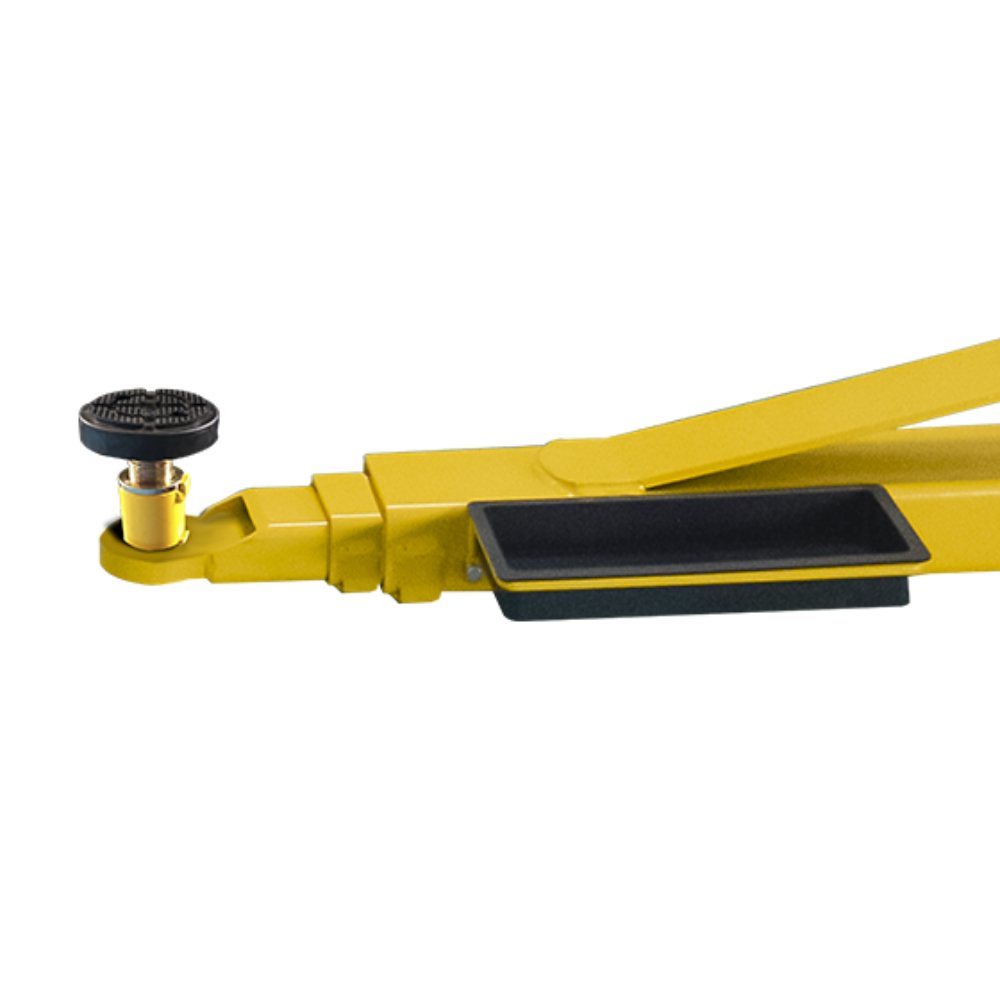

✔ Single-Screw Rubber Pad, 3" Extension Adapters, Toe Guard, and Tool Tray Included

Single-screw rubber pad (pin dia 1 1/2") and 3-inch extension adapters for higher-clearance vehicles. Toe guard and tool tray ship standard at no extra charge.

✔ Aero Sync Cables

Reliable, consistent synchronization between both columns throughout the lift cycle.

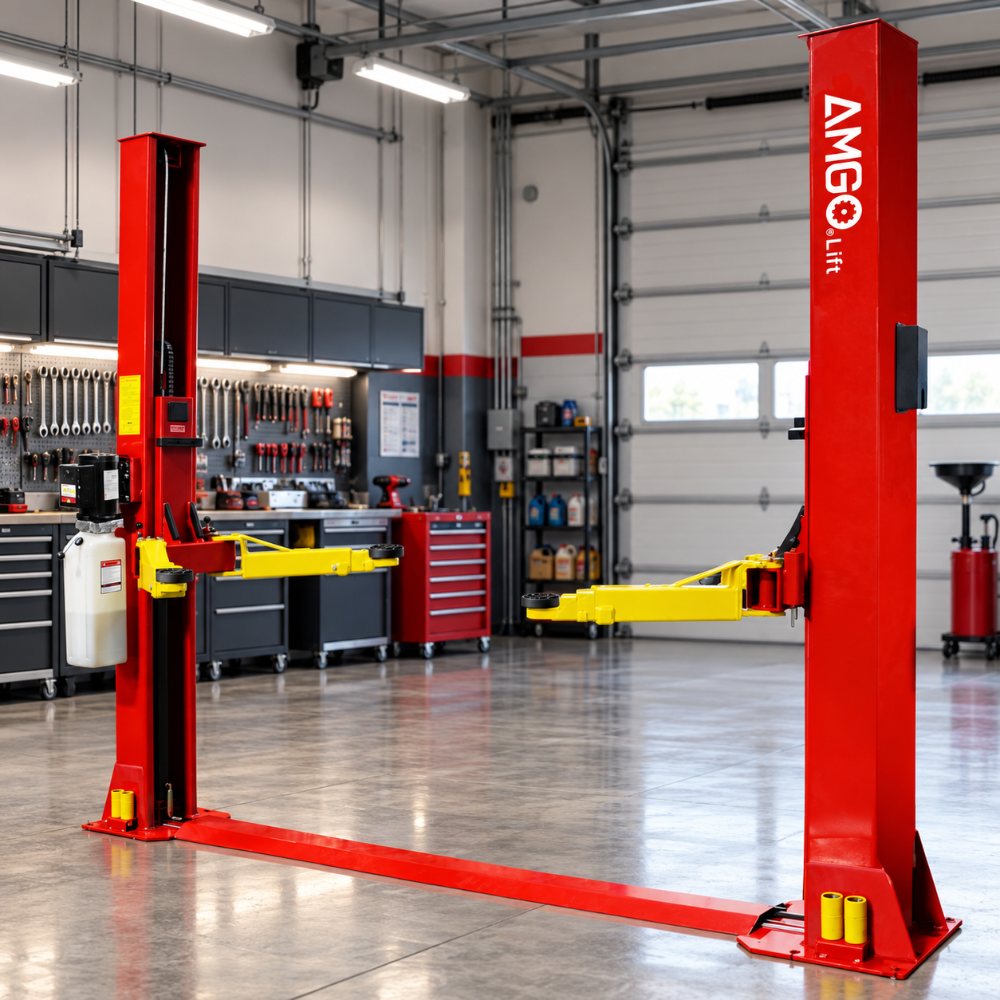

AMGO BP-9 Base Plate Two-Post Lift installed in a professional automotive garage with red columns and yellow lifting arms

AMGO BP-9 Base Plate Two-Post Lift feature details showing single-point manual safety lock release, ETL power unit, chain-drive hydraulic cylinder, arm restraints, retractable arms and adapters

AMGO BP-9 Shipping Information

What's Included With Your AMGO BP-9

Everything you need is included with your AMGO BP-9 Two-Post Lift

AMGO BP-9 Base Plate Two-Post Lift
ETL Certified Power Unit
Four 3-Stage Symmetric Retractable Arms
Single-Screw Rubber Pads
3" Extension Adapters

Detachable Toe Guard
Tool Tray
Aero Sync Cables
Automatic Arm Restraints
Comprehensive Warranty Coverage

AMGO BP-9 | 9,000 lb Base Plate Two-Post Lift Technical Specifications

Model	BP-9
Lifting Capacity	9,000 lbs
Lifting Time	37 seconds
Max Lifting Height without adapter (A)	71 1/4"–72 1/2"
Max Lifting Height with adapter (A)	74 3/16"–75 1/2"
Max Lock Height without adapter (A)	69 5/8"–70 15/16"
Max Lock Height with adapter (A)	72 5/8"–73 7/8"
Overall Height (B)	108"
Overall Width (C)	131 7/8"
Drive-Thru Clearance (D)	99"
Width Between Columns (E)	109 7/16"
Minimum Pad Height (F)	3 5/16"
Motor	2.0 HP, 220V/60Hz, Single Phase
Gross Weight	1,321 lbs
Warranty — Structural	5 Years
Warranty — Hydraulic, Bushings, Sliders, Plastic	3 Years
Warranty — Electrical, Sync Cable, Lock Release Cable	2 Years

AMGO BP-9 Base Plate Two-Post Lift technical dimensions diagram showing overall height, width, lifting height and arm reach

AMGO BP-9 Base Plate Two-Post Lift Product Manuals

AMGO BP-9 Base Plate Two-Post Lift - Installation and Service Manual

AMGO BP-9 Base Plate Two-Post Lift - Product Brochure

AMGO BP-9 9,000 lb Base Plate Two-Post Lift — FAQs

What is the difference between the BP-9 and the OH-9?

Both are 9,000 lb two-post lifts requiring 220V, but they differ in design and overall height. The BP-9 is a base plate lift at 108 inches overall — built for garages with a 9ft ceiling or higher. The OH-9 is a clear floor overhead lift at 142 1/2 or 150 1/2 inches overall — the floor between the columns is completely clear. The BP-9 has a base plate on the floor between the columns; the OH-9 does not. Choose based on your ceiling height and floor preference.

What voltage does the BP-9 require?

The BP-9 requires a dedicated 220V/60Hz single-phase circuit for its 2.0 HP motor. Book the electrician before the lift arrives — not after delivery.

What concrete does the BP-9 require?

AMGO's installation manual covers the concrete and anchoring requirements for this lift. Request a copy before ordering and confirm your slab meets the requirements before delivery arrives.

What vehicles will fit on the BP-9?

The BP-9 supports most passenger cars, full-size pickups, large SUVs, and light commercial vehicles up to 9,000 lbs. The 3 5/16-inch minimum pad height handles low-profile vehicles without ramps. Included 3-inch extension adapters reach the lift points on higher-clearance vehicles.

How is the AMGO BP-9 delivered?

The BP-9 ships at approximately 1,321 lbs via standard freight. The freight carrier will contact you to schedule delivery, but the driver does not unload the lift. Plan for appropriate unloading equipment at your delivery address before placing your order.
