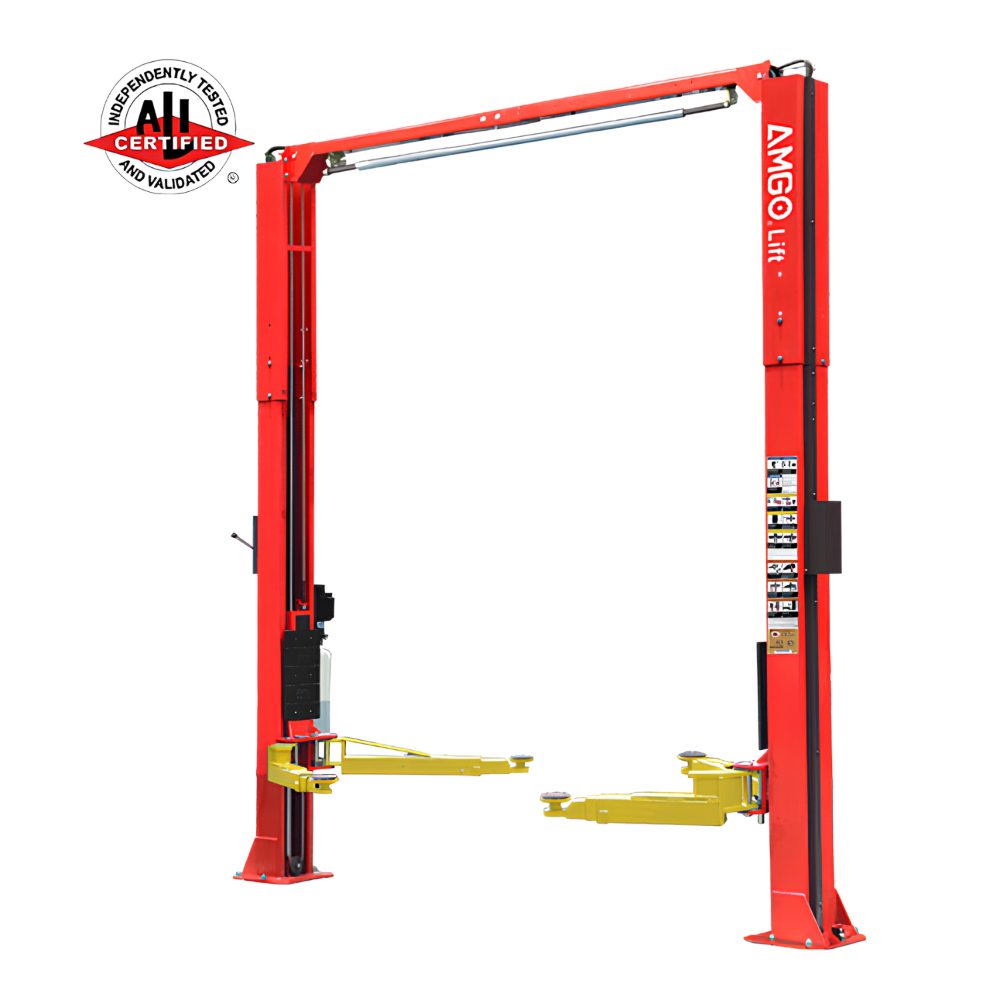

✔ ALI Certified — Industry-Recognized Safety Standard
The OH-10 carries ALI certification from the Automotive Lift Institute — the North American industry standard for automotive lift safety and performance. Commercial insurance policies, fleet and municipal operations, and professional service centers that require a named certification will find it here.
✔ Super Asymmetric Arms — Symmetric or Asymmetric Loading
AMGO's Super Asymmetric arms allow the operator to load the vehicle in either a symmetric or asymmetric configuration. Asymmetric sets the vehicle further back for door clearance; symmetric centers it for jobs where that position works better. One lift, both options.
✔ 10,000 lb Capacity — Cars to Light Commercial Vehicles
Handles passenger cars, full-size pickups, large SUVs, and light commercial vehicles up to 10,000 lbs.

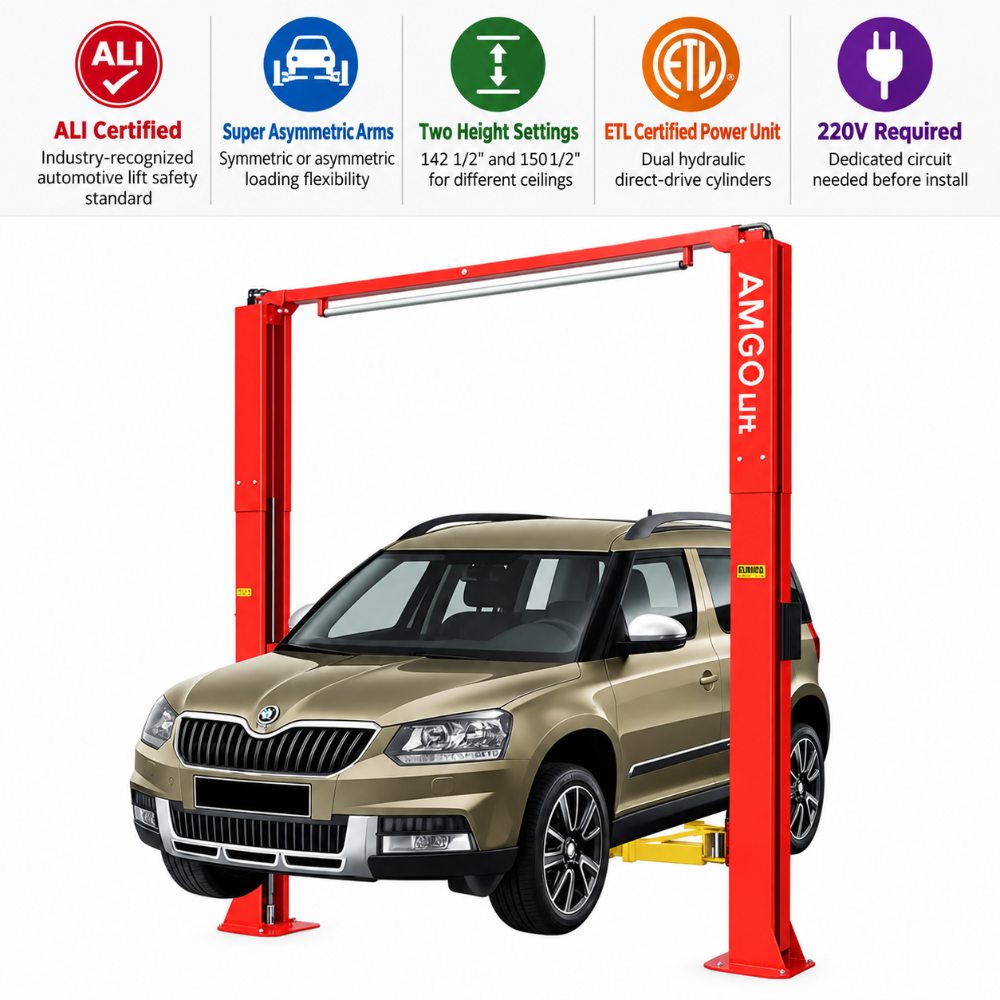

✔ Two Height Settings — Fits Different Ceiling Heights
Two standard height settings — 142 1/2 inches (low) and 150 1/2 inches (high) — selected during installation to match the ceiling height available.
✔ Clear Floor Overhead Design — Unobstructed Workspace
No base plate, no floor obstruction between the columns. A transmission jack, oil drain, or creeper rolls straight through. Hydraulic lines and sync cables run in the overhead crossbar — out of the working area.

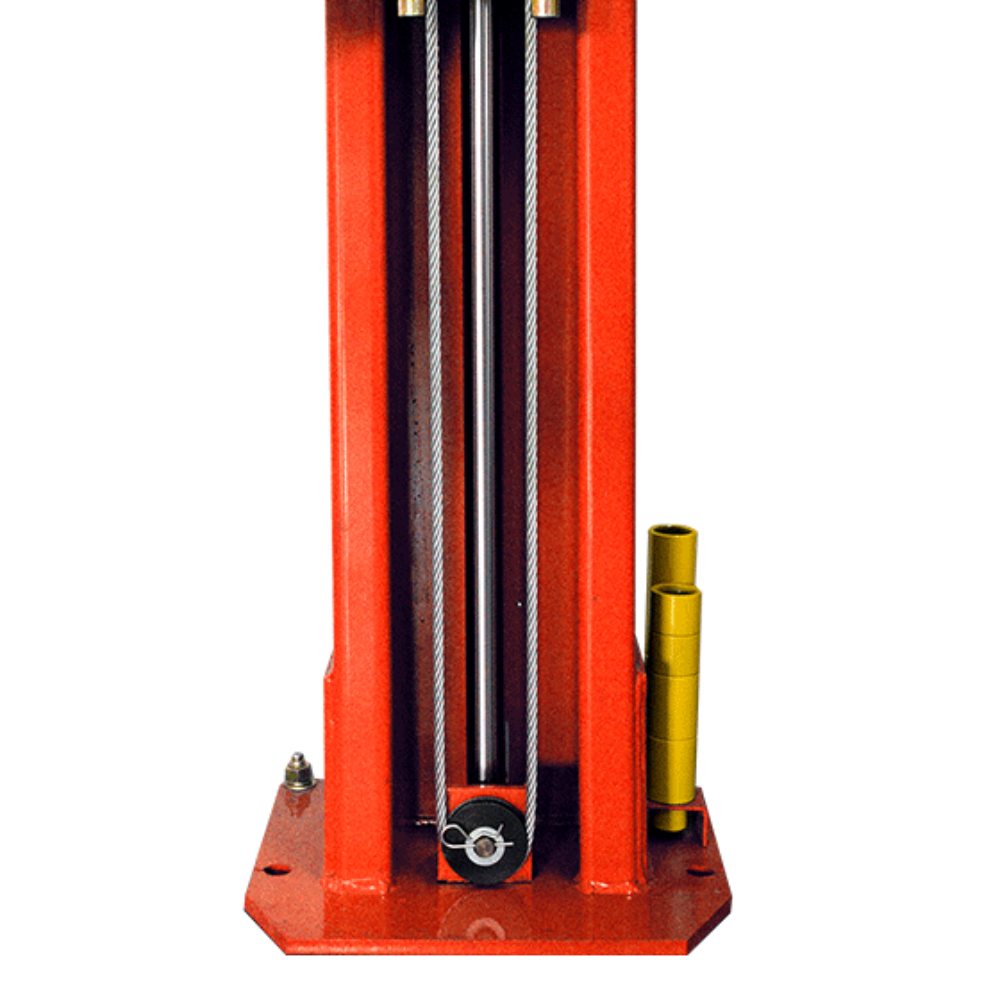

✔ ETL Certified Power Unit — Dual Hydraulic Direct-Drive Cylinders
2.0 HP ETL certified power unit with dual hydraulic direct-drive cylinders for smooth, synchronized lifting. Full lift cycle in approximately 57 seconds.
✔ Overhead Safety Shutoff Device
Stops carriage travel automatically before a tall vehicle reaches the top of its range — no operator intervention needed.
✔ Single-Point Manual Safety Release
Simultaneously unlocks both columns from one side. Load rests on mechanical locks rather than hydraulic pressure throughout the lift cycle.
✔ Stackable Rubber Pads and 1.5", 2.5", 5" Adapters Included
Three adapter heights — 1.5, 2.5, and 5 inches — cover a wider range of vehicle lift point heights than a single adapter size. Stack them to reach whatever the vehicle needs.
✔ Self-Lubricating UHMW Polyethylene Sliders
No greasing required — quieter travel and longer service life throughout the lifting range.
✔ Automatic Arm Restraints
Locks the arms in position once placed — no arm movement during the lift cycle.
✔ Toe Guard, Tool Tray, and Aero Sync Cables Included
Detachable toe guard and tool tray ship standard. Aero sync cables ensure reliable, consistent synchronization between both columns.
