Name: AMGO OH-12 | 12,000 lb Clear Floor Two-Post Lift
Brand: AMGO Hydraulics
SKU: OH-12
Price: 4950.0 USD
Availability: InStock

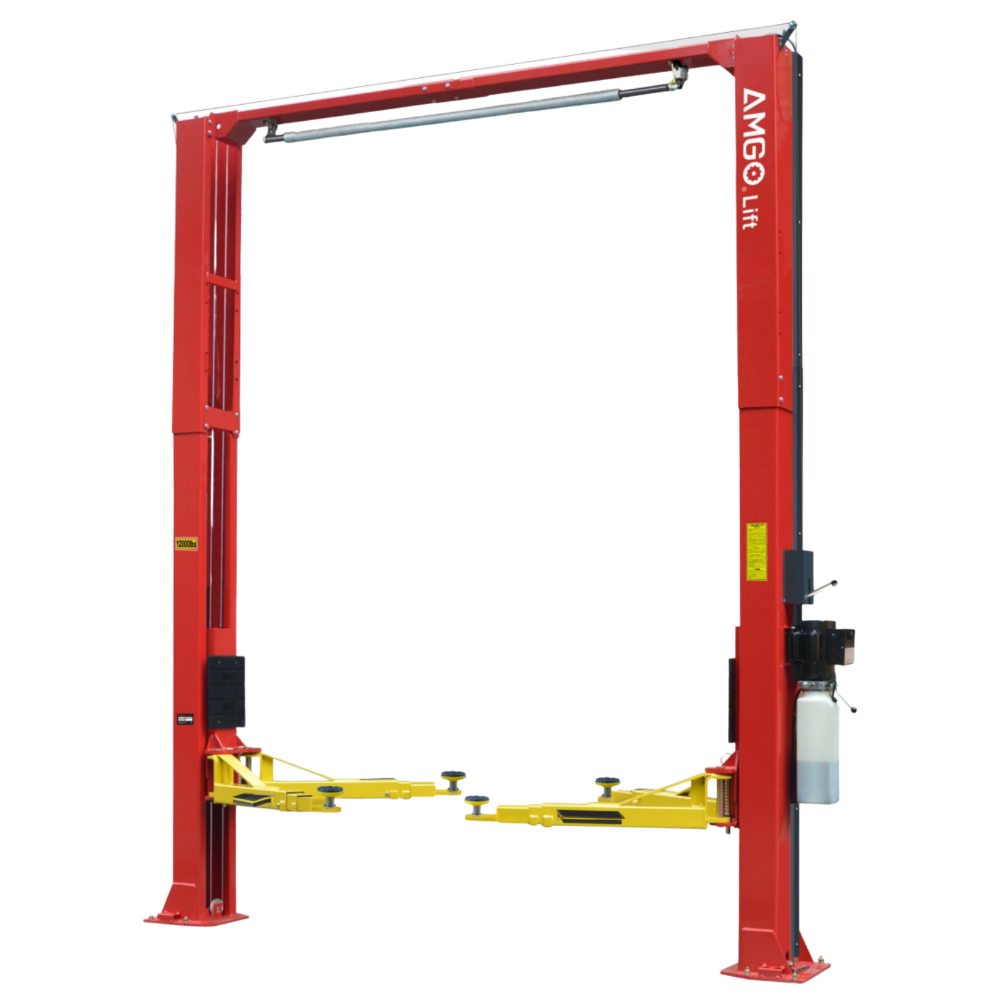

AMGO OH-12 Clear Floor Two-Post Lift with red overhead columns, yellow three-stage arms and hydraulic power unit

AMGO OH-12 12,000 lb — The Clear Floor Two-Post With Three Height Settings for Any Ceiling

The AMGO OH-12 12,000 lb Clear Floor Two-Post Lift is a commercial-grade overhead two-post built for shops that need heavy-duty lifting capacity across a range of ceiling heights. Its defining feature is AMGO's 3-in-1 technology — three adjustable height settings at 174 inches (low), 186 inches (medium), and 198 inches (high) — letting the OH-12 fit ceiling heights that a fixed-height overhead two-post cannot accommodate.

The setting also determines the effective lifting height, ranging from 72 1/2 to 73 7/8 inches without extension adapters and 81 9/16 to 82 7/8 inches with the included adapters.

Four three-stage arms cover the full range of wheelbases — from short-wheelbase compact cars to long-wheelbase full-size pickups and vans — on the same lift without arm changes. The clear floor overhead design keeps the floor between the columns completely unobstructed. An overhead safety shutoff device stops carriage travel automatically.

A detachable toe guard and tool tray ship standard — practical shop details that most two-post lifts charge extra for or leave out entirely.

The OH-12 requires a dedicated 220V/60Hz single-phase circuit. Backed by the AMGO warranty: 5 years on structural components, 3 years on hydraulic components, bronze bushings and sliders, and 2 years on electrical components, sync cable, and lock release cable.

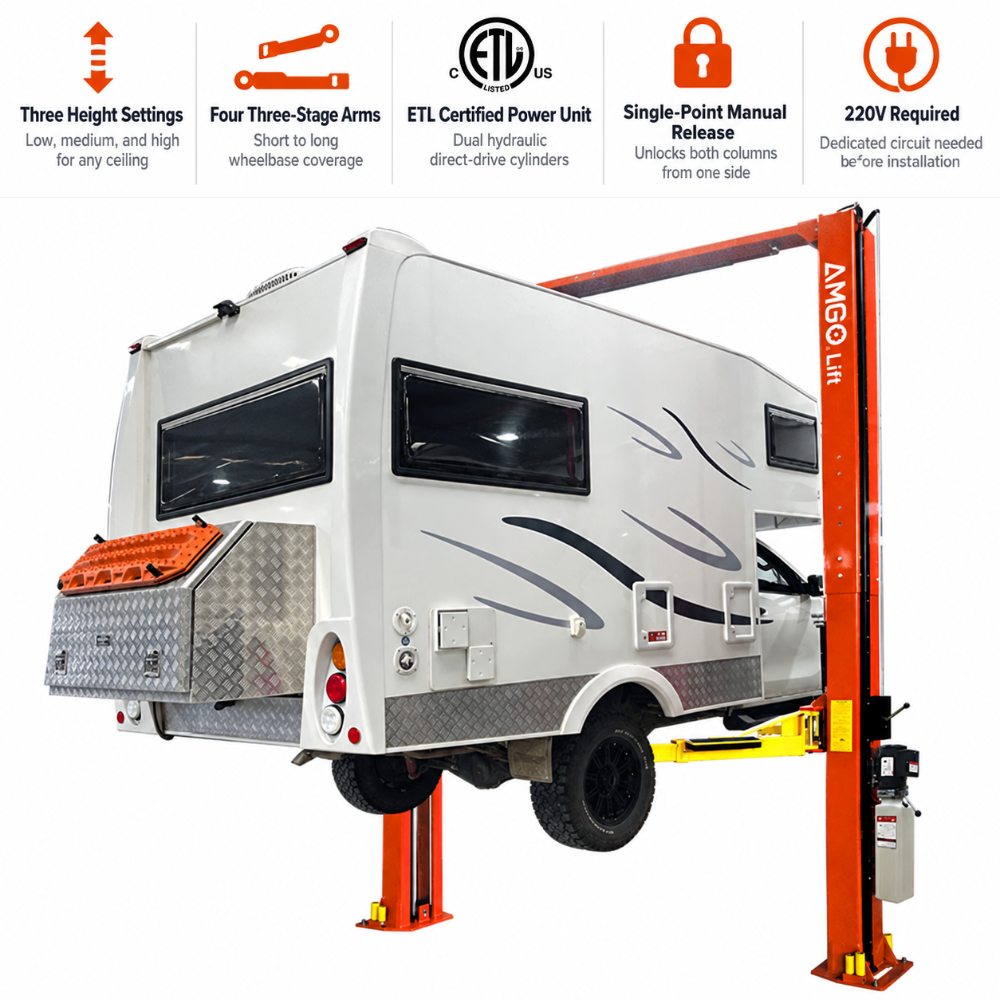

AMGO OH-12 Clear Floor Two-Post Lift raising an RV with three height settings, four three-stage arms and single-point manual release

Why Buy From Bay One Auto Equipment?

Price Match Guarantee

Best Prices Online, Guaranteed

30 Day Easy Returns

No Questions Asked

Expert Support

Real People, Real Answers

Satisfaction Guaranteed

Quality Products, Backed by Us

What Makes the AMGO OH-12 Clear Floor Two-Post Lift Stand Out

✔ Three Height Settings — Fits Different Ceiling Heights

Three adjustable height settings — 174 inches (low), 186 inches (medium), and 198 inches (high). Select the setting that matches your ceiling height before installation. Each setting also determines the effective lifting height.

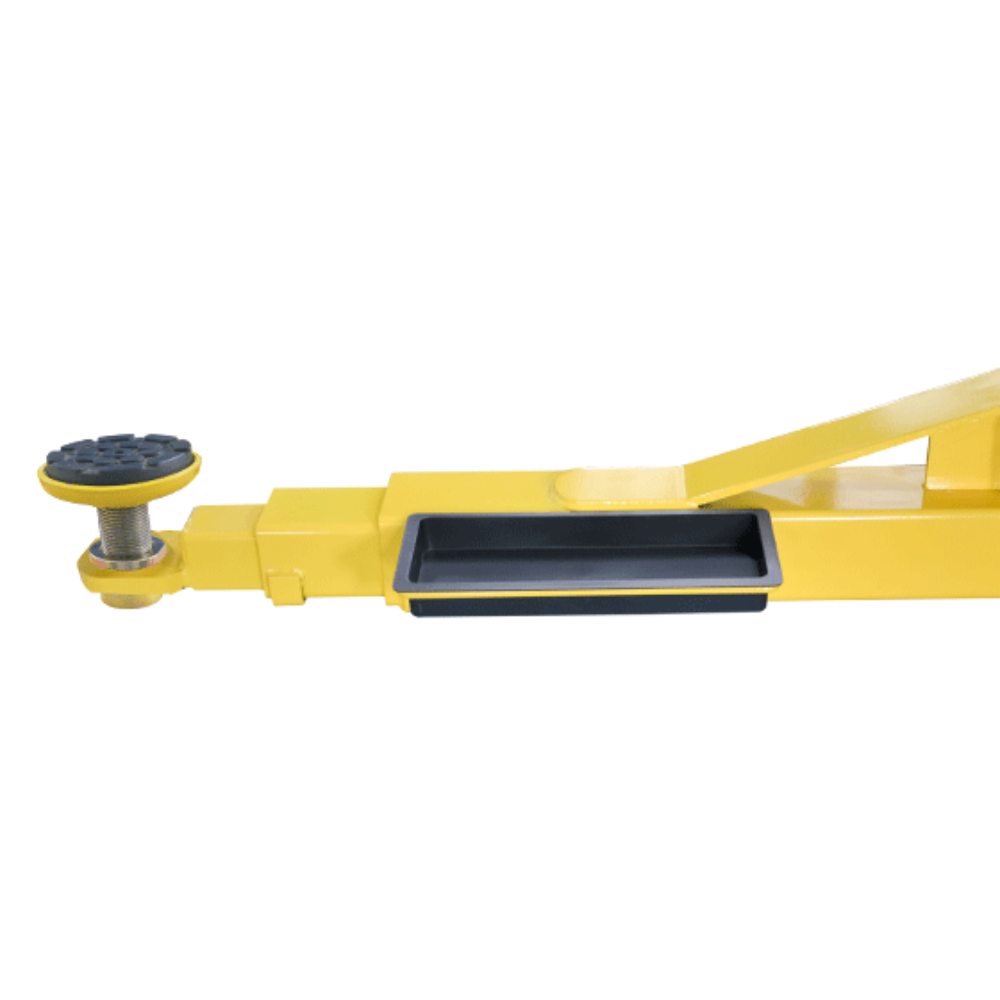

✔ Four Three-Stage Arms — Short to Long Wheelbase

Four heavy-duty three-stage arms cover the full wheelbase range — extended for long-wheelbase vans and full-size pickups, retracted for compact cars. Four contact points for a wider range of vehicle support positions.

✔ 12,000 lb Capacity — Heavy-Duty Commercial Range

Handles passenger cars, full-size pickups, large SUVs, vans, and light commercial vehicles up to 12,000 lbs.

✔ Clear Floor Overhead Design — Unobstructed Workspace

No base plate, no floor obstruction between the columns. A transmission jack, oil drain, or creeper rolls straight through. Hydraulic lines and sync cables run in the overhead crossbar — out of the working area.

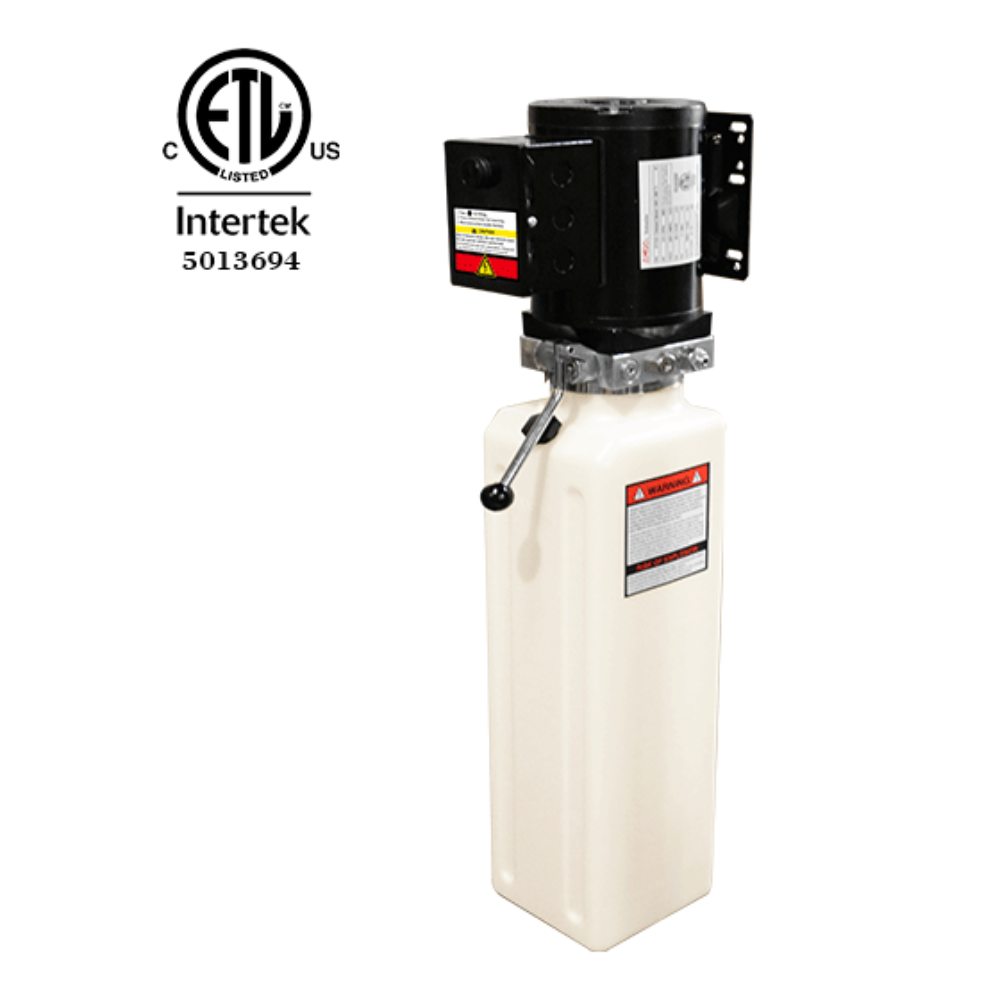

✔ ETL Certified Power Unit — Dual Hydraulic Direct-Drive Cylinders

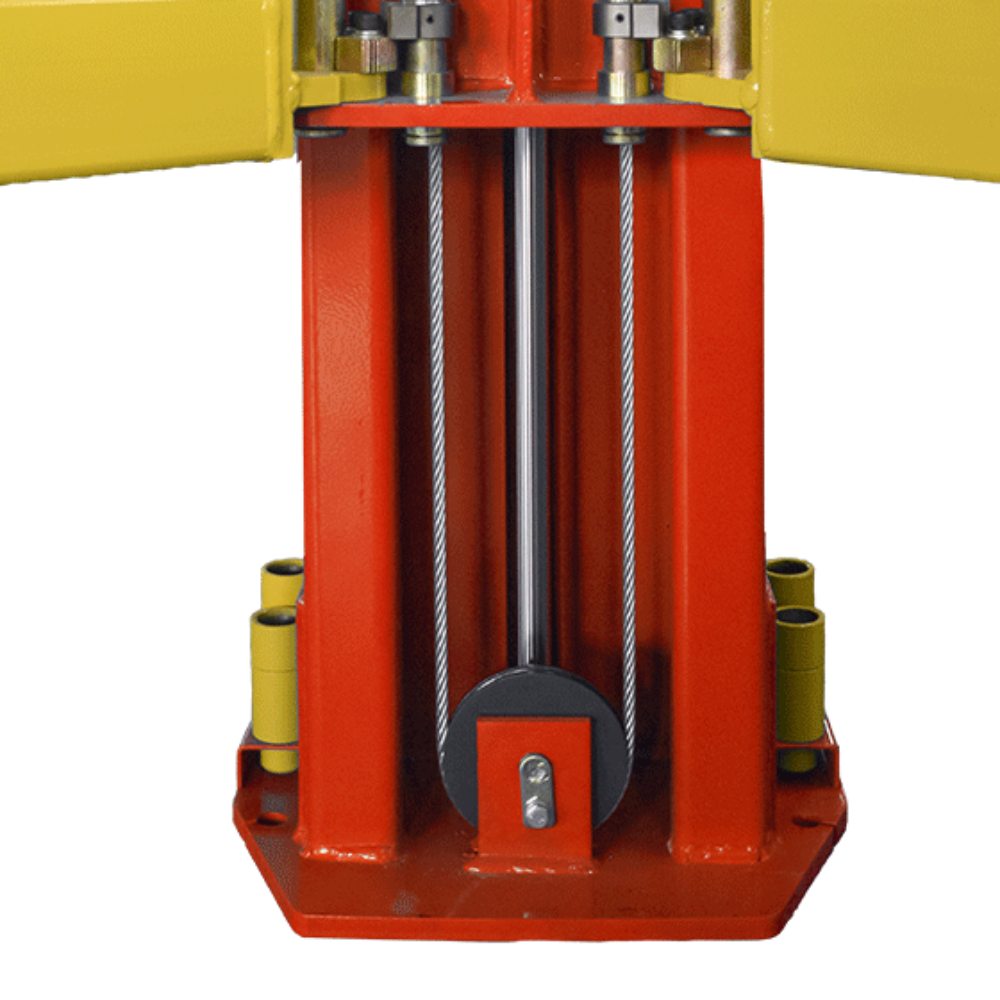

2.0 HP ETL certified power unit with dual hydraulic direct-drive cylinders for smooth, synchronized lifting. Full lift cycle in approximately 69 seconds.

✔ Overhead Safety Shutoff Device

Stops carriage travel automatically before a tall vehicle reaches the top of its range — no operator intervention needed.

✔ Single-Point Manual Safety Lock Release

Simultaneously unlocks both columns from one side. Load rests on mechanical locks rather than hydraulic pressure throughout the lift cycle.

✔ Self-Lubricating UHMW Polyethylene Sliders

Reduces friction and wear throughout the lifting range — no greasing required, quieter travel, longer service life.

✔ Automatic Arm Restraints

Locks the arms in position once placed — no arm movement during the lift cycle.

✔ 3" and 6" Extension Adapters, Toe Guard, and Tool Tray Included

Extension adapters reach lift points on full-size pickups and higher-clearance vehicles. Detachable toe guard and tool tray ship standard at no extra charge.

✔ Aero Sync Cables

Aero standard sync cables ensure reliable, consistent synchronization between both columns.

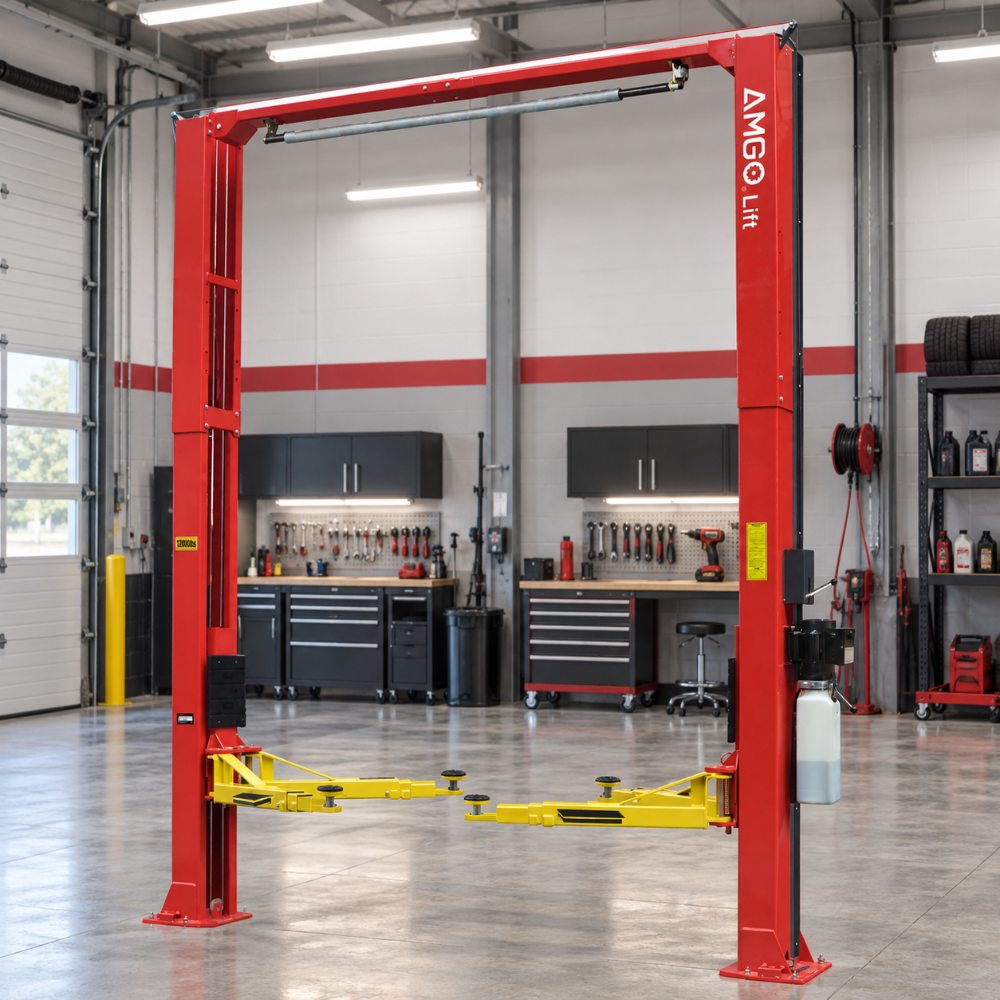

AMGO OH-12 Clear Floor Two-Post Lift installed in a professional automotive garage with clear floor design and overhead structure

AMGO OH-12 Clear Floor Two-Post Lift feature details showing single-point safety release, ETL power unit, dual hydraulic cylinders, arm restraints, lifting pads and extension adapters

AMGO OH-12 Shipping Information

What's Included With Your AMGO OH-12

Everything you need is included with your AMGO OH-12 Two-Post Lift

AMGO OH-12 Clear Floor Two-Post Lift
ETL Certified Power Unit
Four Heavy-Duty Three-Stage Arms
Single-Screw Rubber Pads and Saddle Adapter
3" and 6" Extension Adapters

Detachable Toe Guard
Tool Tray
Aero Sync Cables
Automatic Arm Restraints
Comprehensive Warranty Coverage

AMGO OH-12 | 12,000 lb Clear Floor Two-Post Lift Technical Specifications

Model	OH-12
Lifting Capacity	12,000 lbs
Lifting Time	69 seconds
Max Lifting Height without adapters (A)	72 1/2"–73 7/8"
Max Lifting Height with adapters (A)	81 9/16"–82 7/8"
Max Lock Height without adapters (A)	70 9/16"–71 7/8"
Max Lock Height with adapters (A)	79 9/16"–80 15/16"
Overall Height low setting (B)	174"
Overall Height medium setting (B)	186"
Overall Height high setting (B)	198"
Overall Width (C)	150 3/4"
Drive-Thru Clearance (D)	109 3/4"
Width Between Columns (E)	123 1/2"
Minimum Pad Height (F)	4 1/2"
Motor	2.0 HP, 220V/60Hz, Single Phase
Gross Weight	2,436 lbs
Warranty — Structural	5 Years
Warranty — Hydraulic, Bushings, Sliders, Plastic	3 Years
Warranty — Electrical and Cables	2 Years

AMGO OH-12 Clear Floor Two-Post Lift technical dimensions diagram showing overall height, width, clear floor area and arm reach

AMGO OH-12 Clear Floor Two-Post Lift Product Manuals

AMGO OH-12 Clear Floor Two-Post Lift - Installation and Service Manual

AMGO OH-12 Clear Floor Two-Post Lift - Product Brochure

AMGO OH-12 12,000 lb Clear Floor Two-Post Lift — FAQs

What are the three height settings on the OH-12?

The OH-12 offers three adjustable height settings using AMGO's 3-in-1 technology — low at 174 inches, medium at 186 inches, and high at 198 inches overall height. The setting is selected during installation to match your ceiling height. Each setting also determines the effective lifting height — ranging from 72 1/2 to 73 7/8 inches without extension adapters and 81 9/16 to 82 7/8 inches with the included adapters.

What voltage does the OH-12 require?

The OH-12 requires a dedicated 220V/60Hz single-phase circuit for its 2.0 HP motor. Book the electrician before the lift arrives — not after delivery.

What vehicles will fit on the OH-12?

The OH-12 supports most passenger cars, full-size pickups, large SUVs, vans, and light commercial vehicles up to 12,000 lbs. The 109 3/4-inch drive-thru clearance and four three-stage arms handle the full wheelbase range from compact cars to long-wheelbase full-size pickups. Included 3-inch and 6-inch extension adapters reach the lift points on higher-clearance vehicles.

Are the extension adapters, toe guard, and tool tray included?

Yes. 3-inch and 6-inch extension adapters, a detachable toe guard, and a tool tray all ship standard with the OH-12 at no extra charge.

How is the AMGO OH-12 delivered?

The OH-12 ships at approximately 2,436 lbs via standard freight. The freight carrier will contact you to schedule delivery, but the driver does not unload the lift. Plan for appropriate unloading equipment at your delivery address before placing your order.
