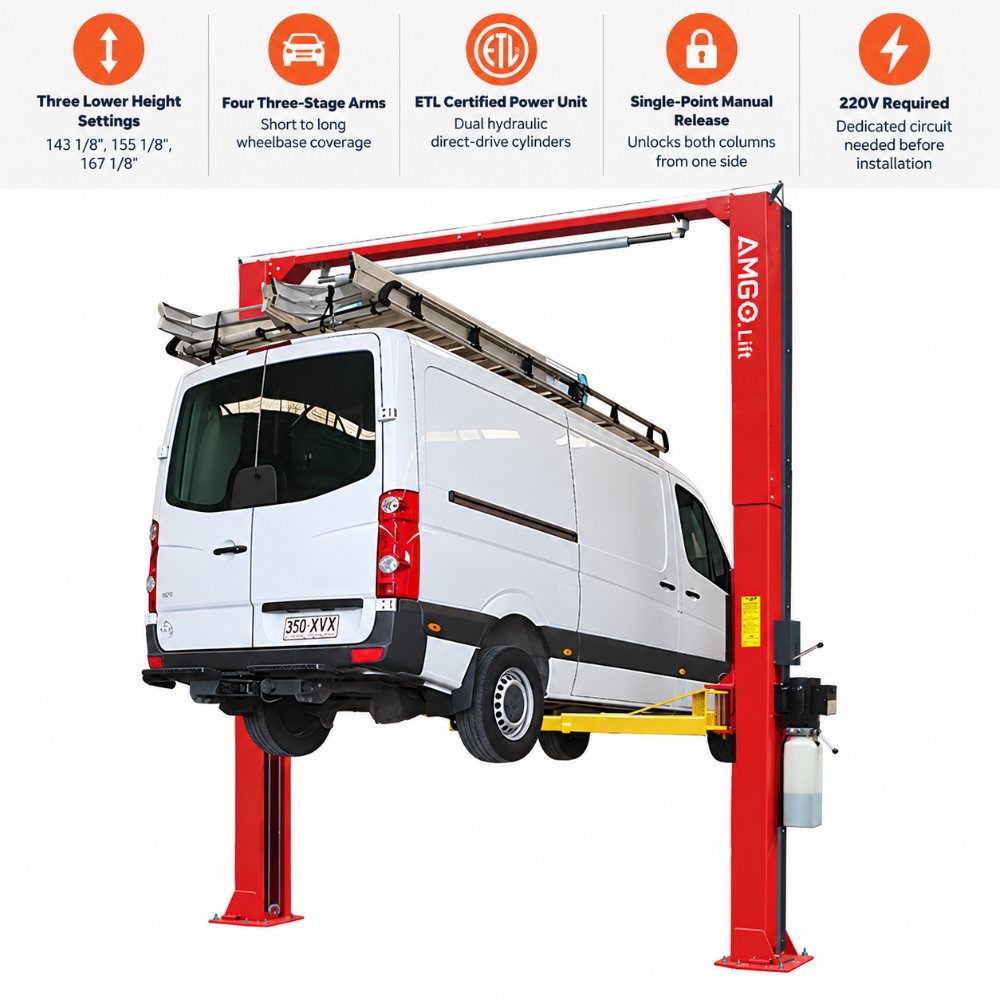

✔ Three Lower Height Settings — Built for Restricted Ceilings
Three adjustable height settings — 143 1/8 inches (low), 155 1/8 inches (medium), and 167 1/8 inches (high) — selected during installation to match the ceiling height available. The OH-12S fits ceiling heights that the OH-12's minimum 174-inch setting will not. Same capacity, same arms, same drive-thru — in a shorter column package.

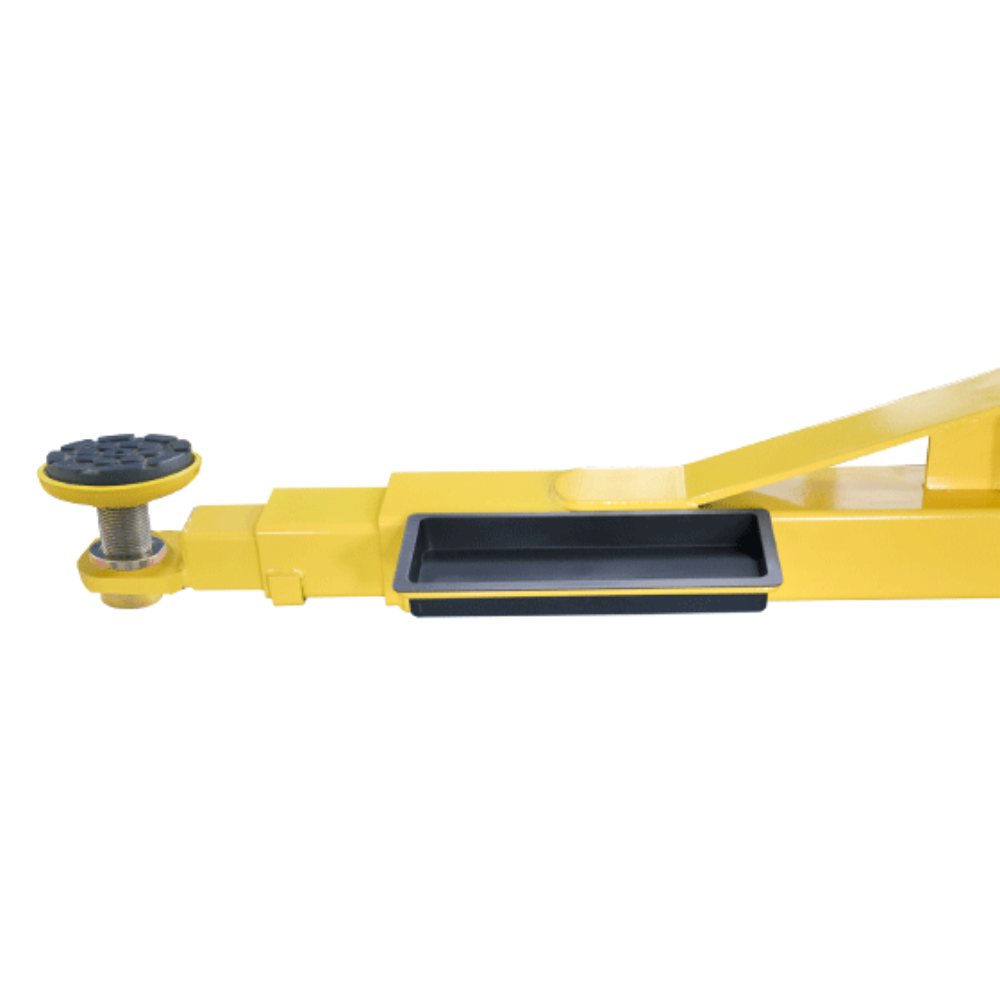

✔ Four Three-Stage Arms — Short to Long Wheelbase
Four heavy-duty three-stage arms telescope through three sections — extended for long-wheelbase vans and full-size pickups, retracted for compact cars. Four contact points for a wider range of vehicle support positions across the full wheelbase range.
✔ 12,000 lb Capacity — Heavy-Duty Commercial Range
Handles passenger cars, full-size pickups, large SUVs, vans, and light commercial vehicles up to 12,000 lbs.
✔ Clear Floor Overhead Design — Unobstructed Workspace
No base plate, no floor obstruction between the columns. A transmission jack, oil drain, or creeper rolls straight through. Hydraulic lines and sync cables run in the overhead crossbar — out of the working area.

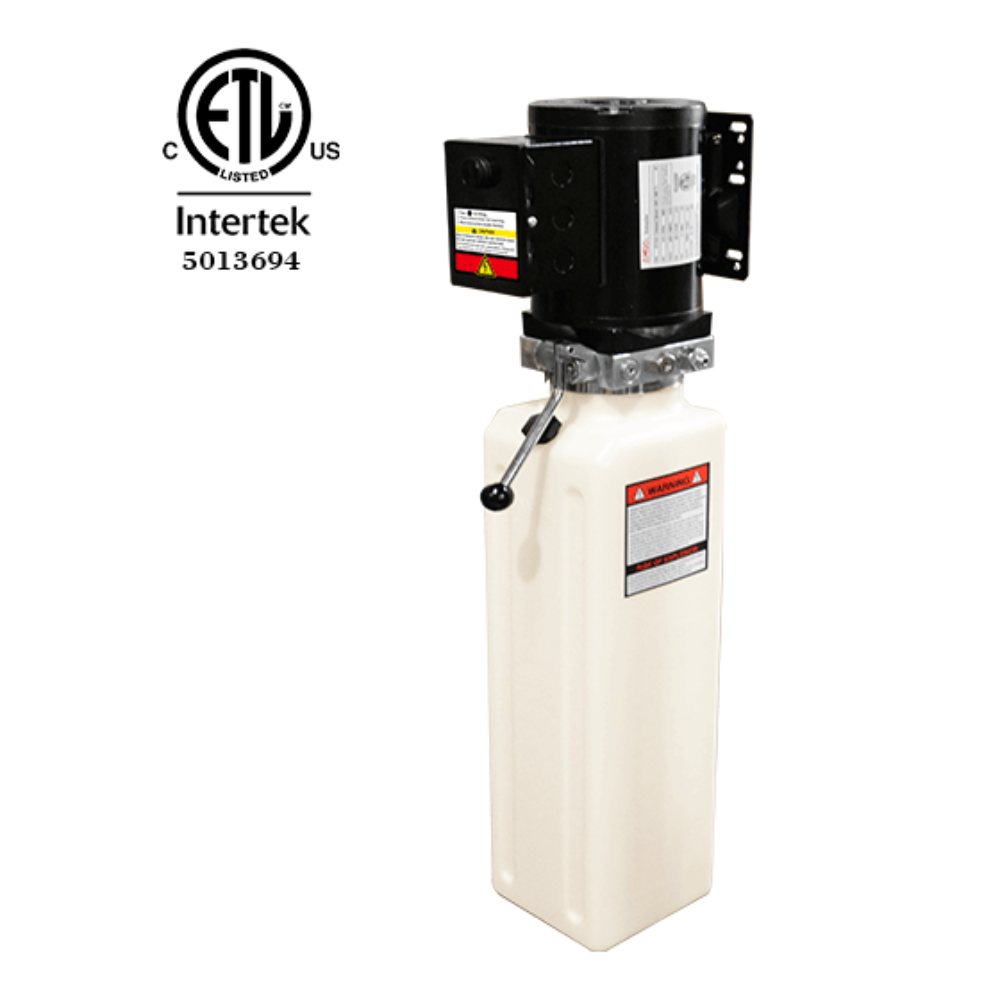

✔ ETL Certified Power Unit — Dual Hydraulic Direct-Drive Cylinders
2.0 HP ETL certified power unit with dual hydraulic direct-drive cylinders for smooth, synchronized lifting. Full lift cycle in approximately 69 seconds.
✔ Overhead Safety Shutoff Device
Stops carriage travel automatically before a tall vehicle reaches the top of its range — no operator intervention needed.
✔ Single-Point Manual Safety Lock Release
Simultaneously unlocks both columns from one side. Load rests on mechanical locks rather than hydraulic pressure throughout the lift cycle.
✔ Self-Lubricating UHMW Polyethylene Sliders
No greasing required — quieter travel and longer service life throughout the lifting range.
✔ Automatic Arm Restraints
Locks the arms in position once placed — no arm movement during the lift cycle.
✔ 3" and 6" Extension Adapters, Toe Guard, and Tool Tray Included
Extension adapters reach lift points on full-size pickups and higher-clearance vehicles. Detachable toe guard and tool tray ship standard at no extra charge.
✔ Aero Sync Cables
Reliable, consistent synchronization between both columns throughout the lift cycle.
