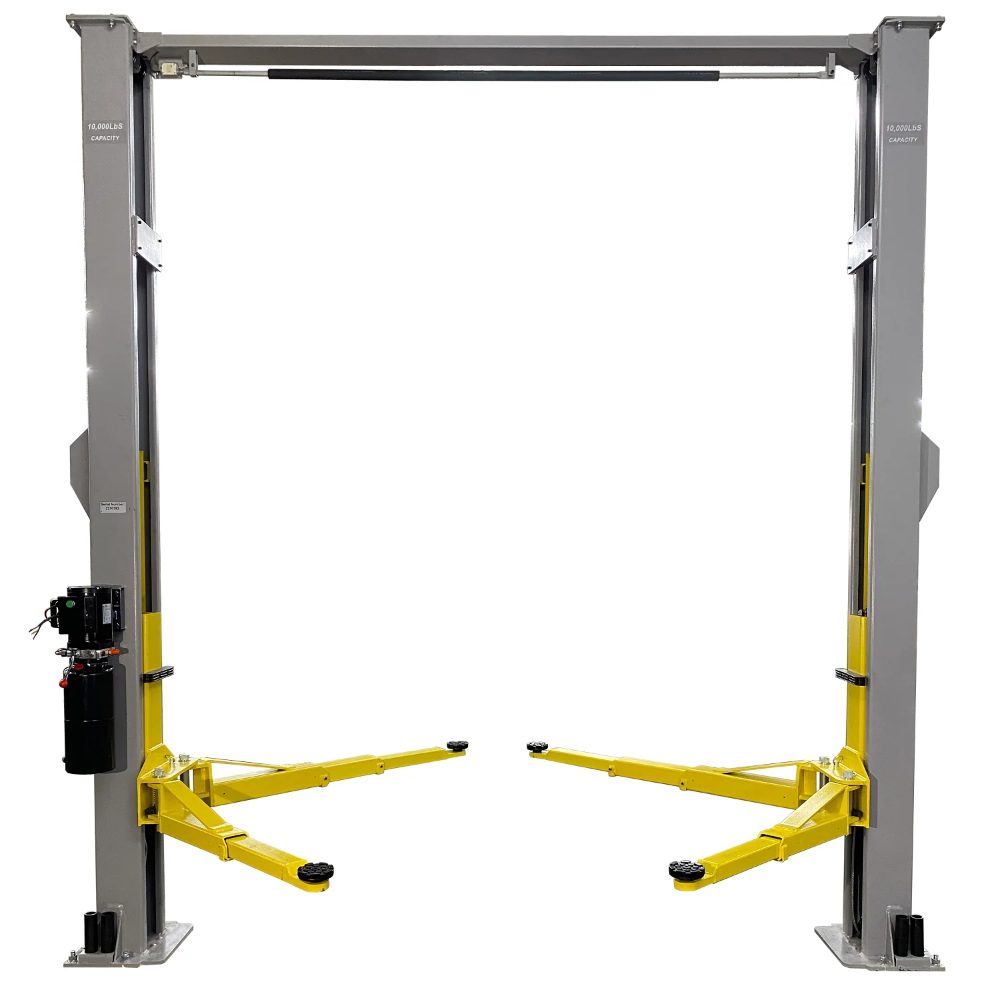

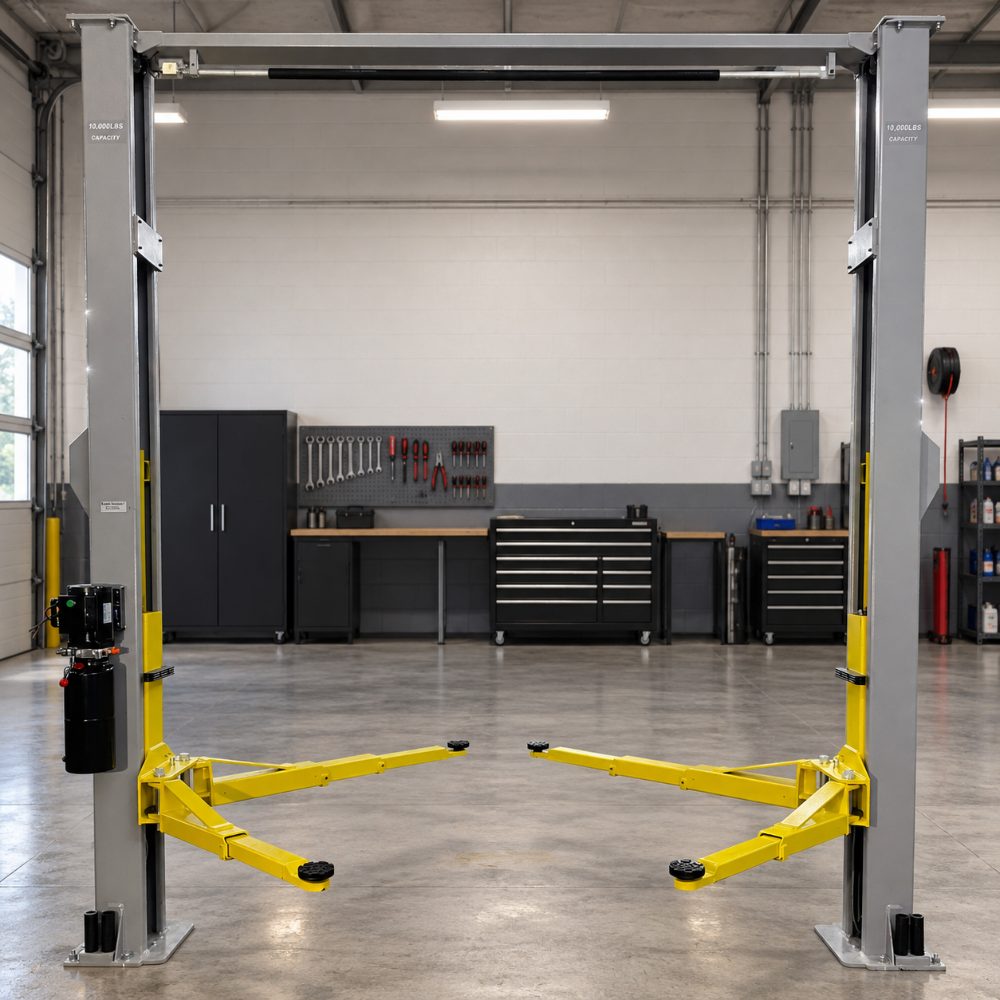

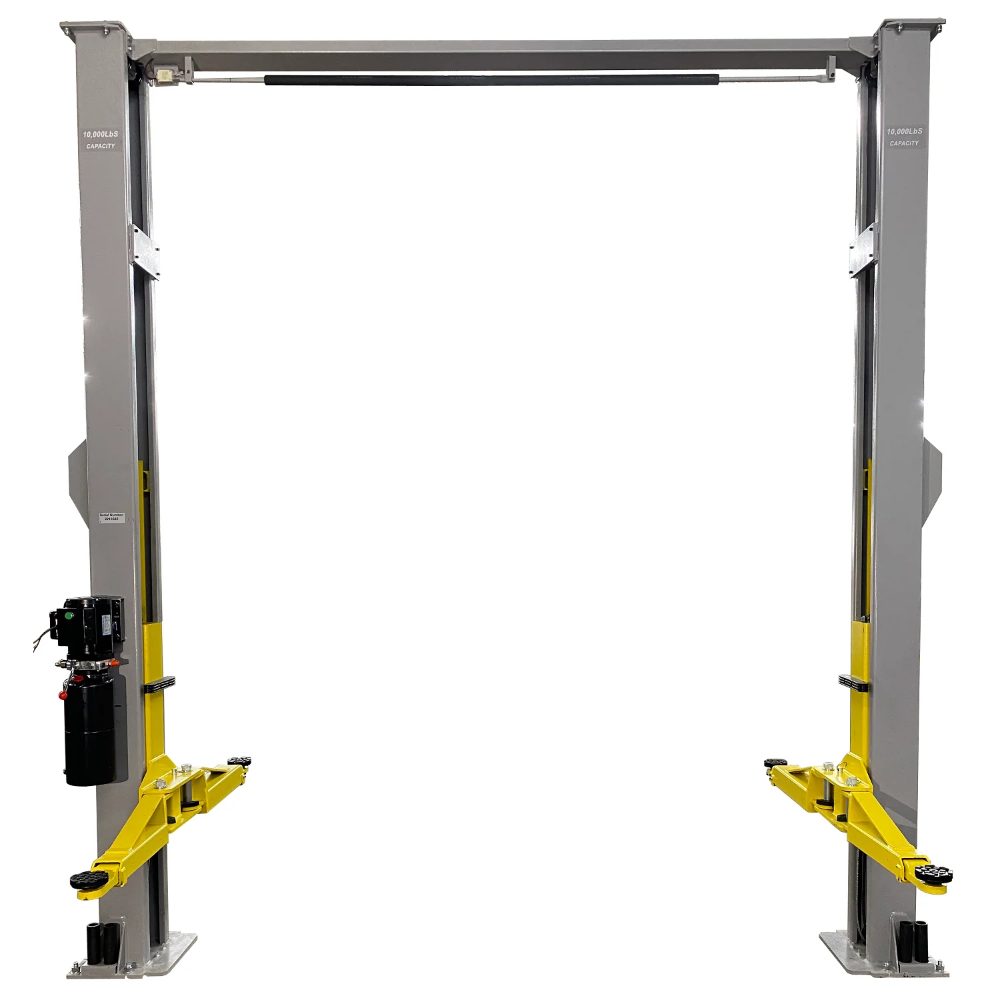

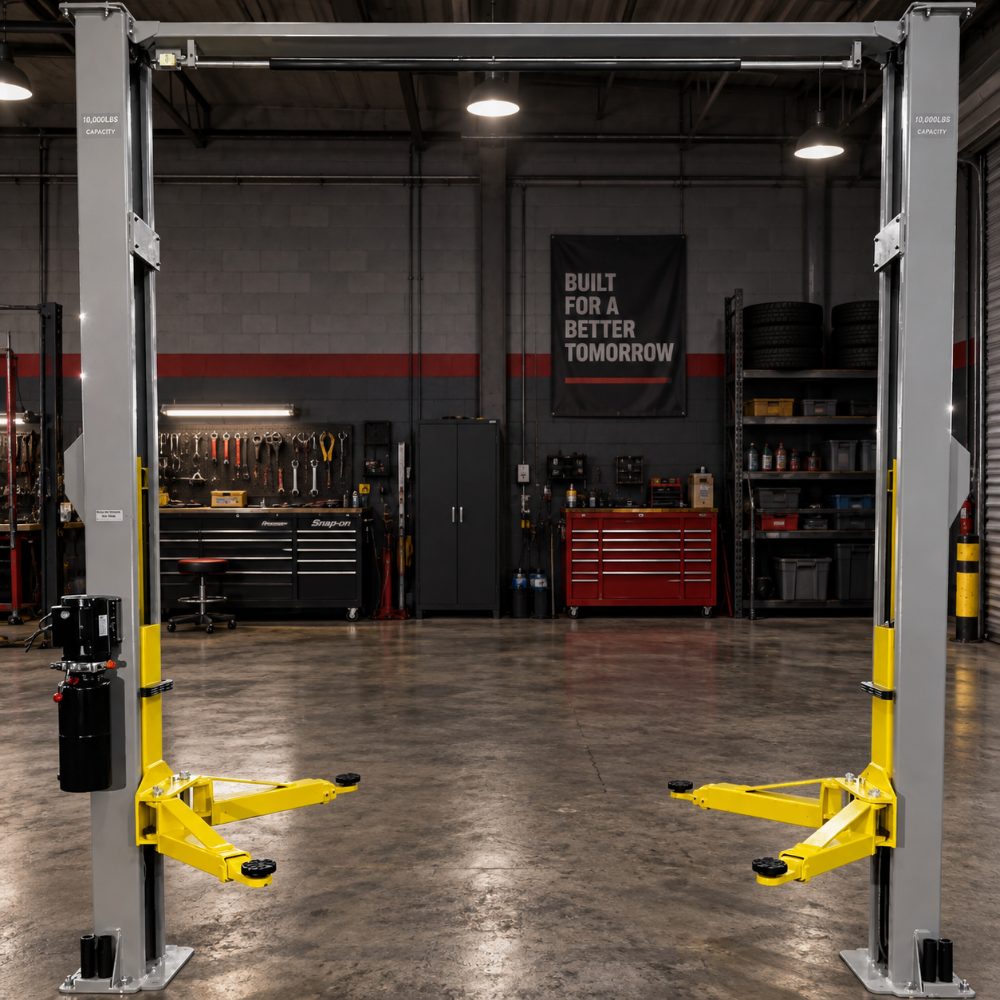

✔ Overhead Design — Floor Completely Clear Between Columns

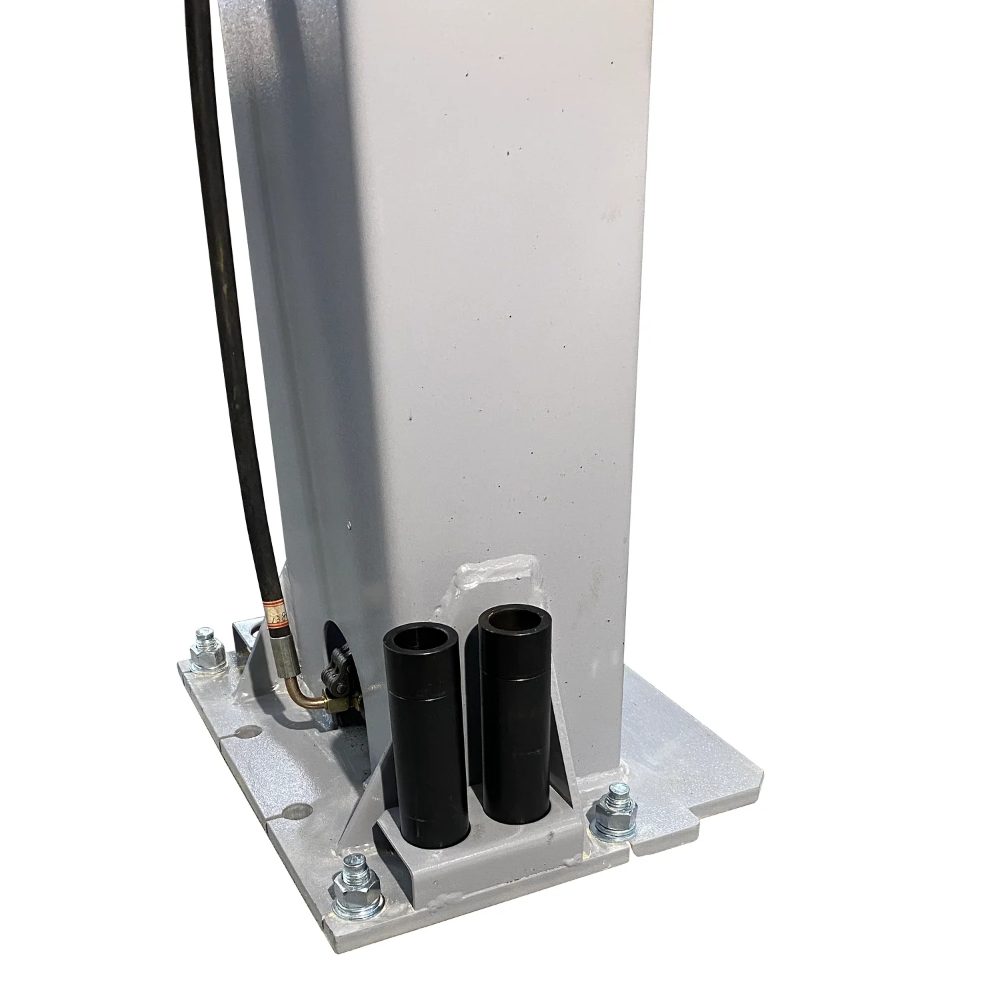

The NTO-10A's drive structure sits at the top of the lift, not at floor level. The floor between the columns carries no base plate and no obstructions — a transmission jack, an oil drain, or a creeper rolls straight through without stepping over anything. The hydraulic lines and equalisation cables run in the overhead crossbar, out of the working area. Each column anchors through an 18 x 17-inch base plate, spreading the anchor load across the slab.

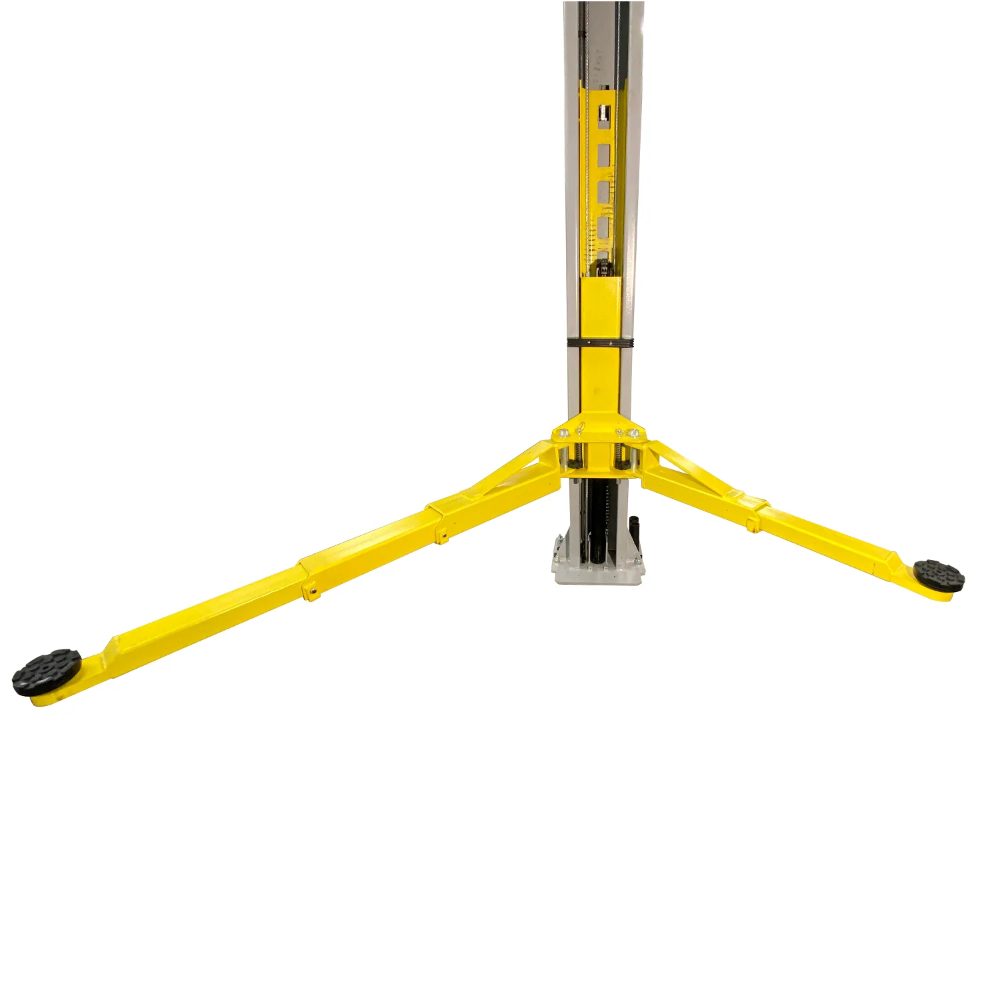

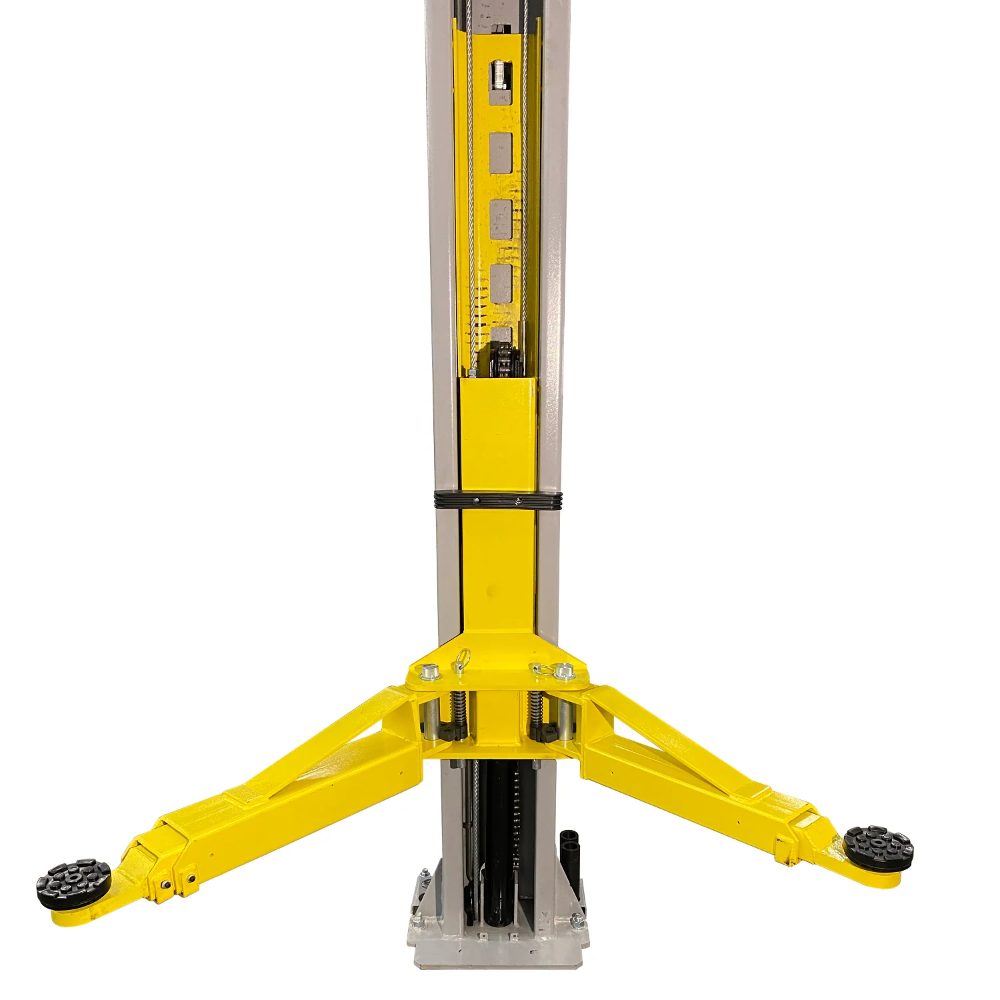

✔ Three-Stage Front Arms — Reaches Short and Long Wheelbases
Two three-stage front arms telescope through three sections rather than two. Extended, they reach the frame rails of a long-wheelbase van or crew-cab pickup. Retracted, they fold short enough to reach under a compact car at the manufacturer's designated lift points. Two two-stage rear arms support the back of the vehicle across the same range. One lift, one arm set, the full range of wheelbases — without compromising pad placement on any of them.
✔ 10,000 lb Capacity — Passenger Cars to Light Commercial Vehicles
At 10,000 lbs, the NTO-10A handles the full range of passenger cars, full-size pickups, large SUVs, vans, and light commercial vehicles up to its rated capacity.
✔ Electric Safety Cutoff — Carriage Stops Automatically
An overhead automatic electric safety cutoff stops carriage travel before a tall vehicle reaches the crossbar. The lift does not rely on an operator watching the column at the top of travel — the cutoff is built into the control system.

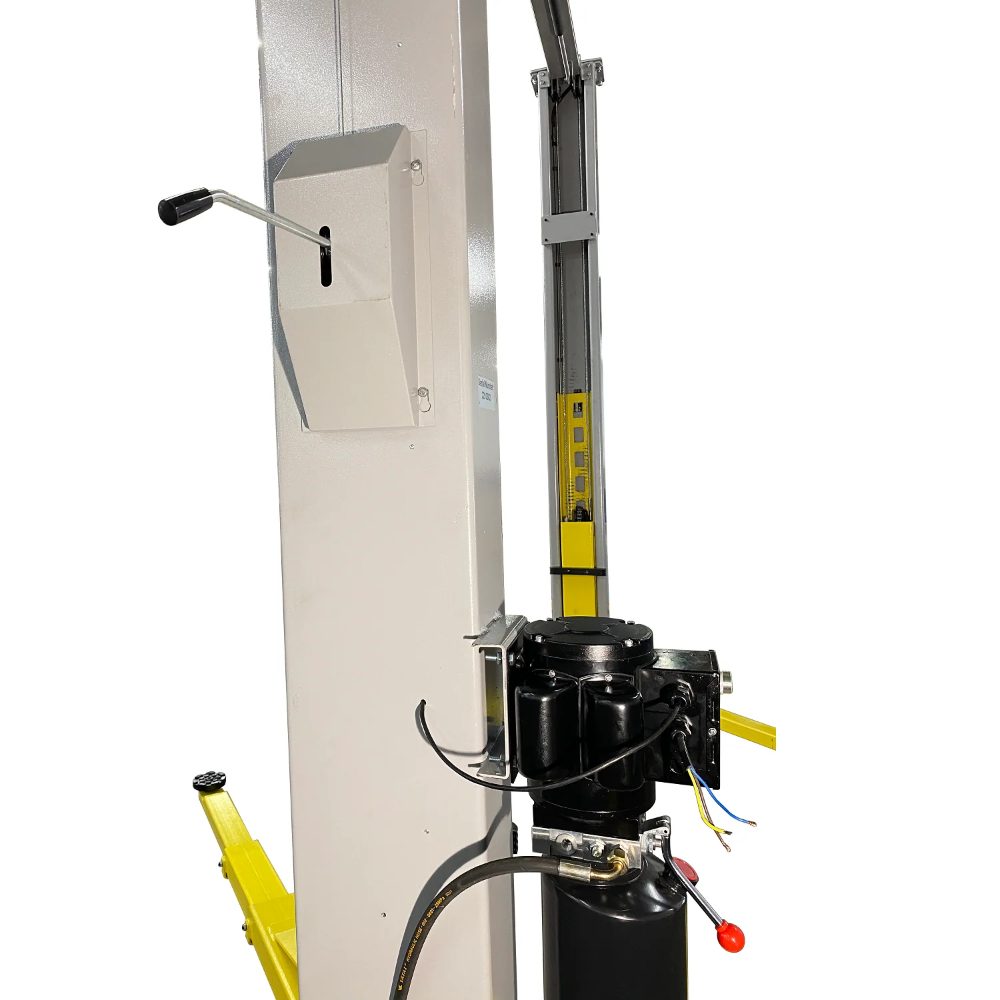

✔ Single-Point Safety Release — One Lever, Both Columns
A single-point release disengages both column locks from one location. The sequence is raise slightly, release, lower — no walking around a loaded lift to reach a second lever on the far column.

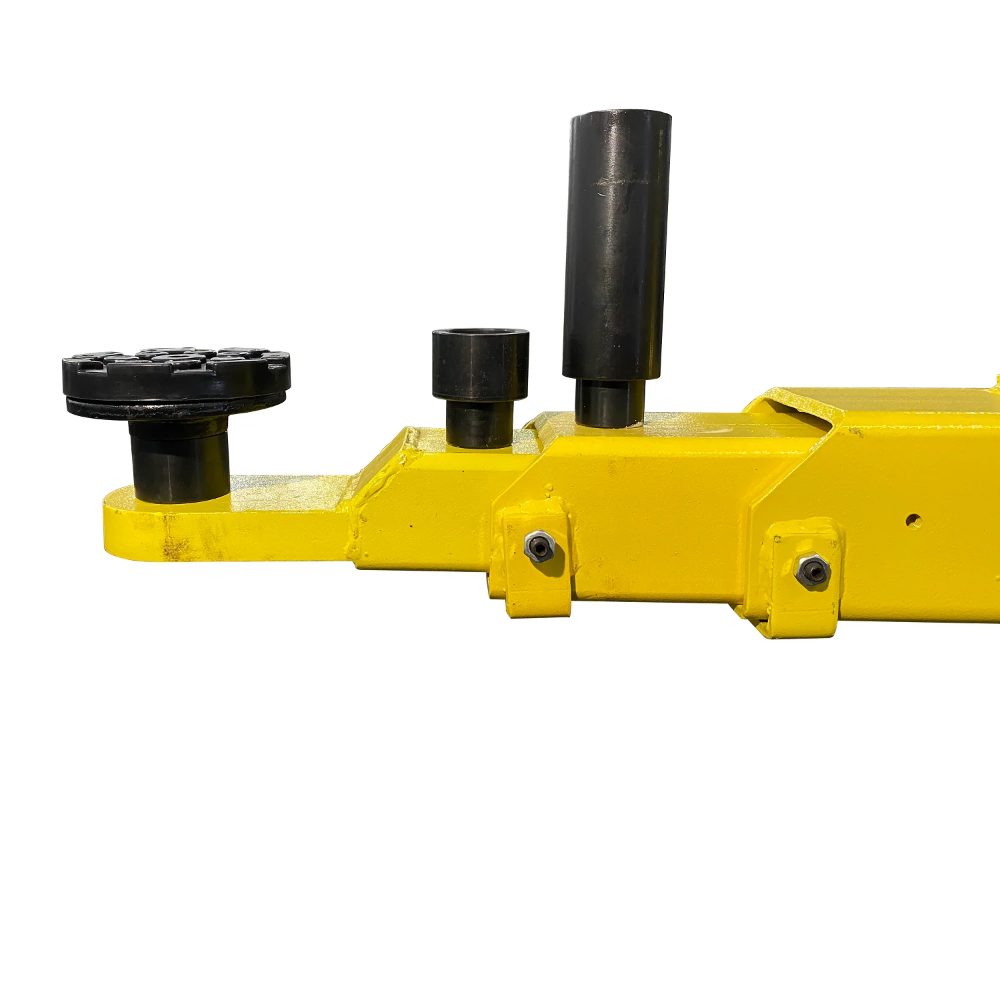

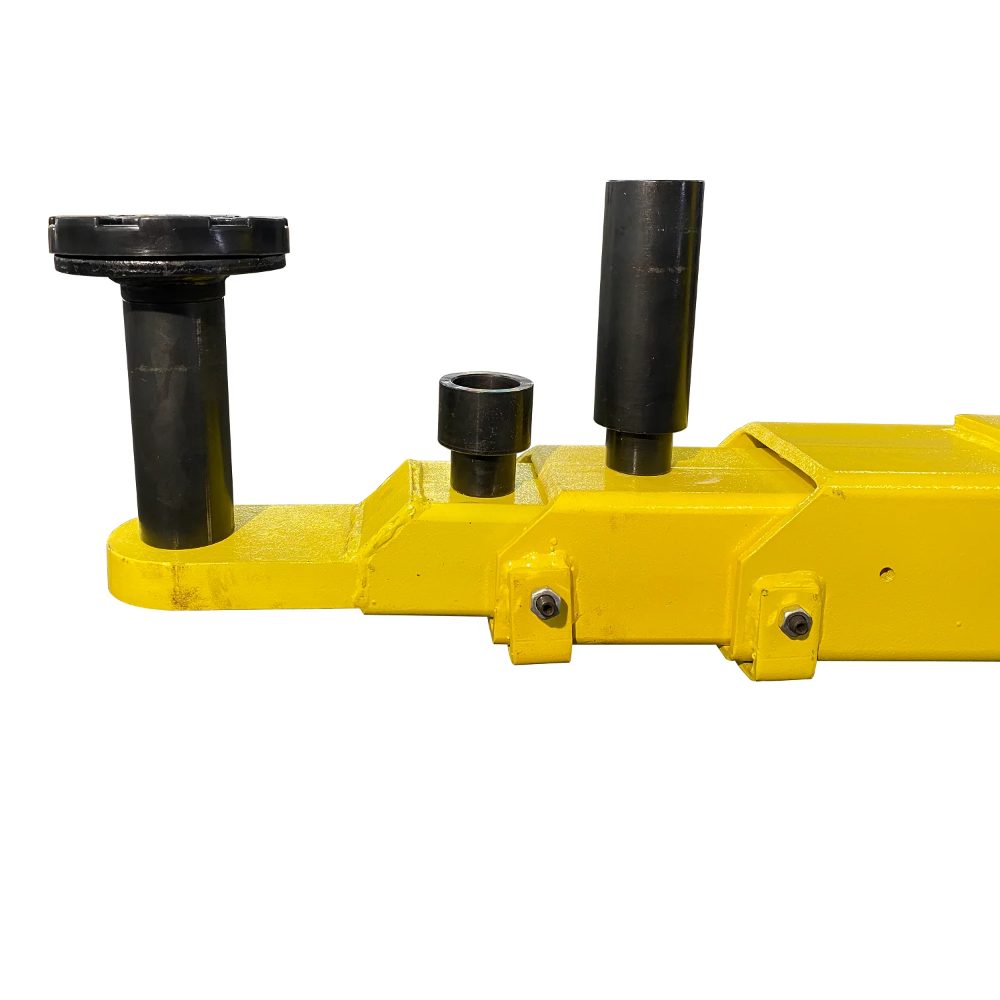

✔ Drop-In Truck Adapters in Three Heights — 1.5", 3", and 6"
Three adapter heights ship in the box at no extra charge — 1.5-inch, 3-inch, and 6-inch drop-in adapters raise the contact point to reach the lift points on full-size pickups, large SUVs, and higher-clearance vehicles. Stack them to reach whatever the vehicle needs.
✔ Rubber Door Protectors — Both Columns
Column-mounted rubber door protectors shield vehicle doors during loading and unloading. A small detail that prevents paint chips and door dings on every vehicle that passes through the bay.

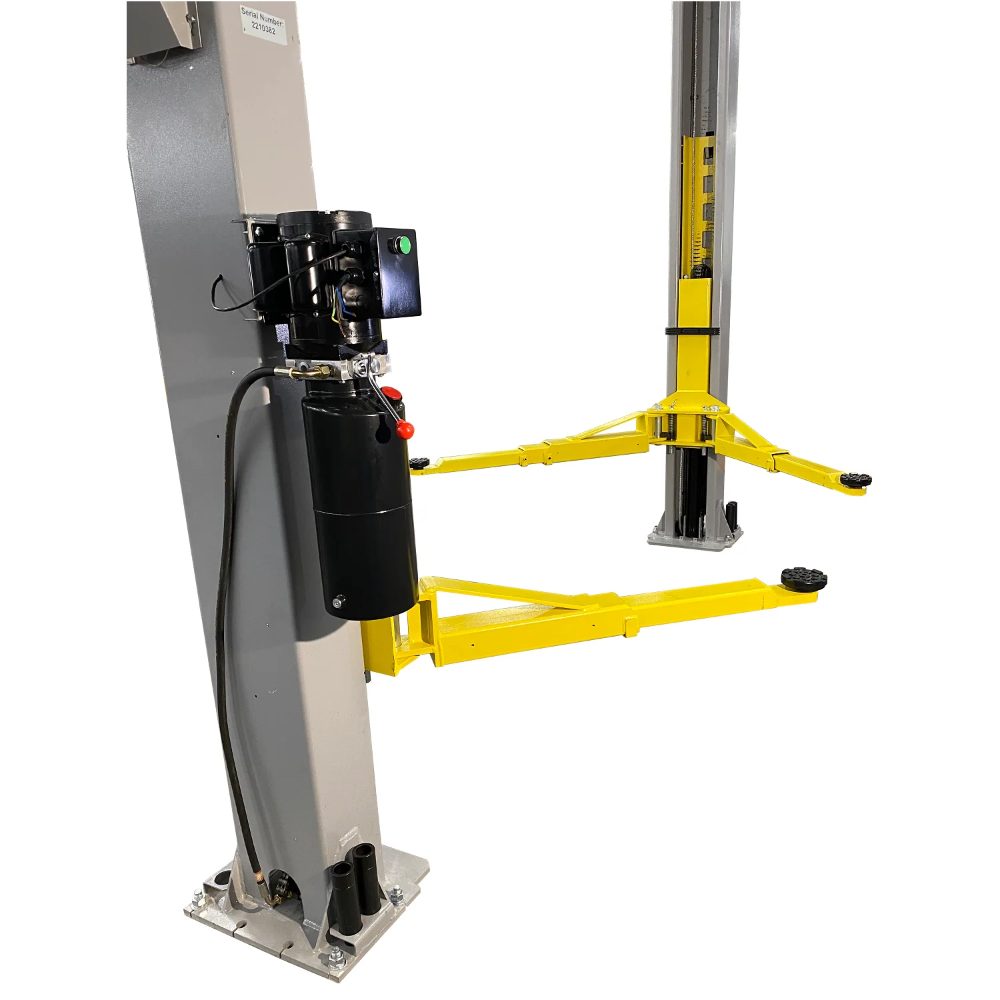

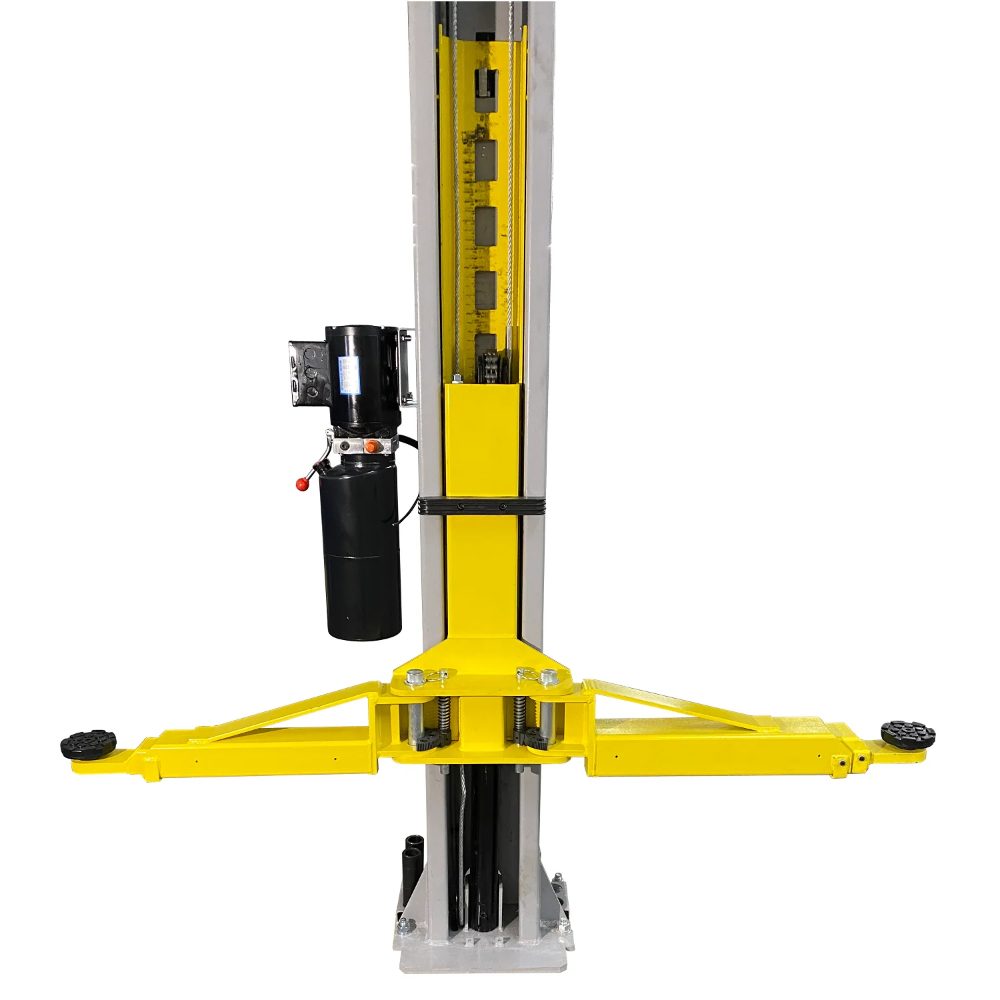

✔ 220V, 3 HP Power Unit — Column Mounted
The 3 HP, 220V single-phase power unit mounts on the column for easy access. Steel-tank reservoir. Full lift cycle completes in approximately 40 seconds.
