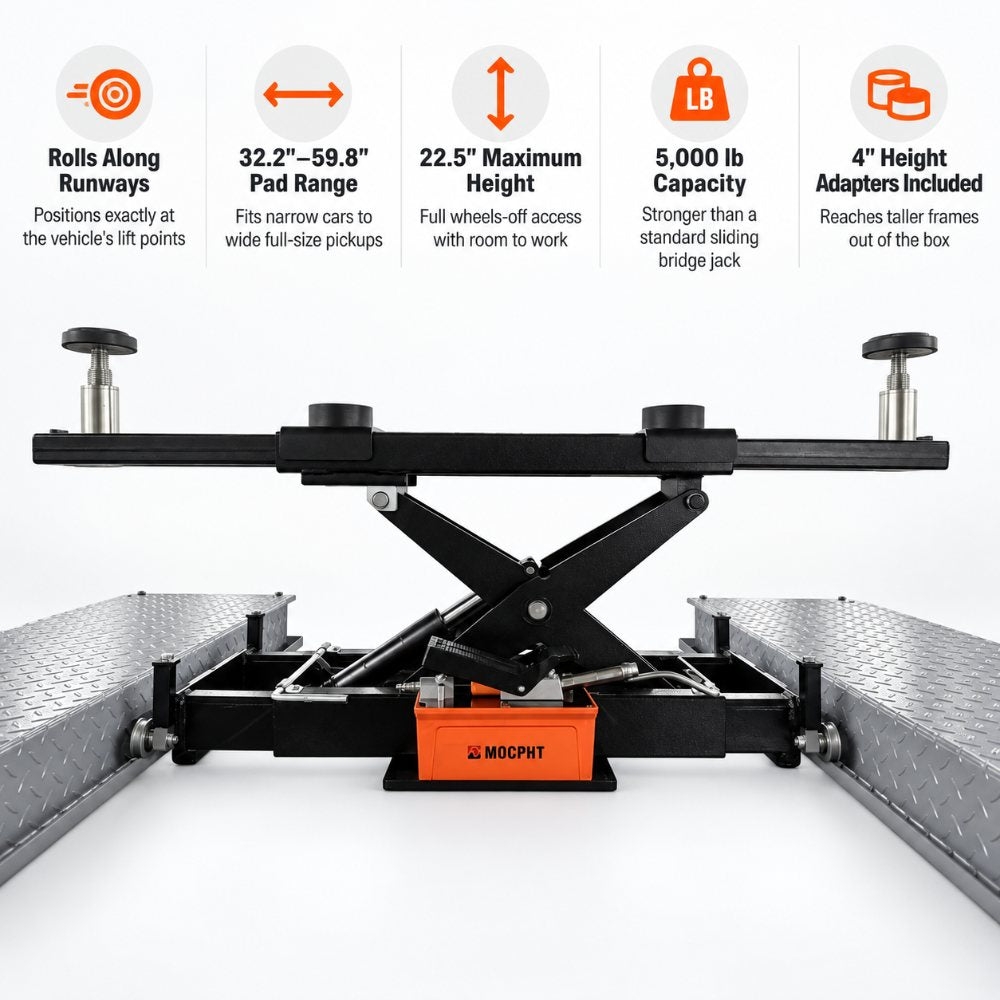

✔ Rolls Along the Runways — Positions at the Lift Points

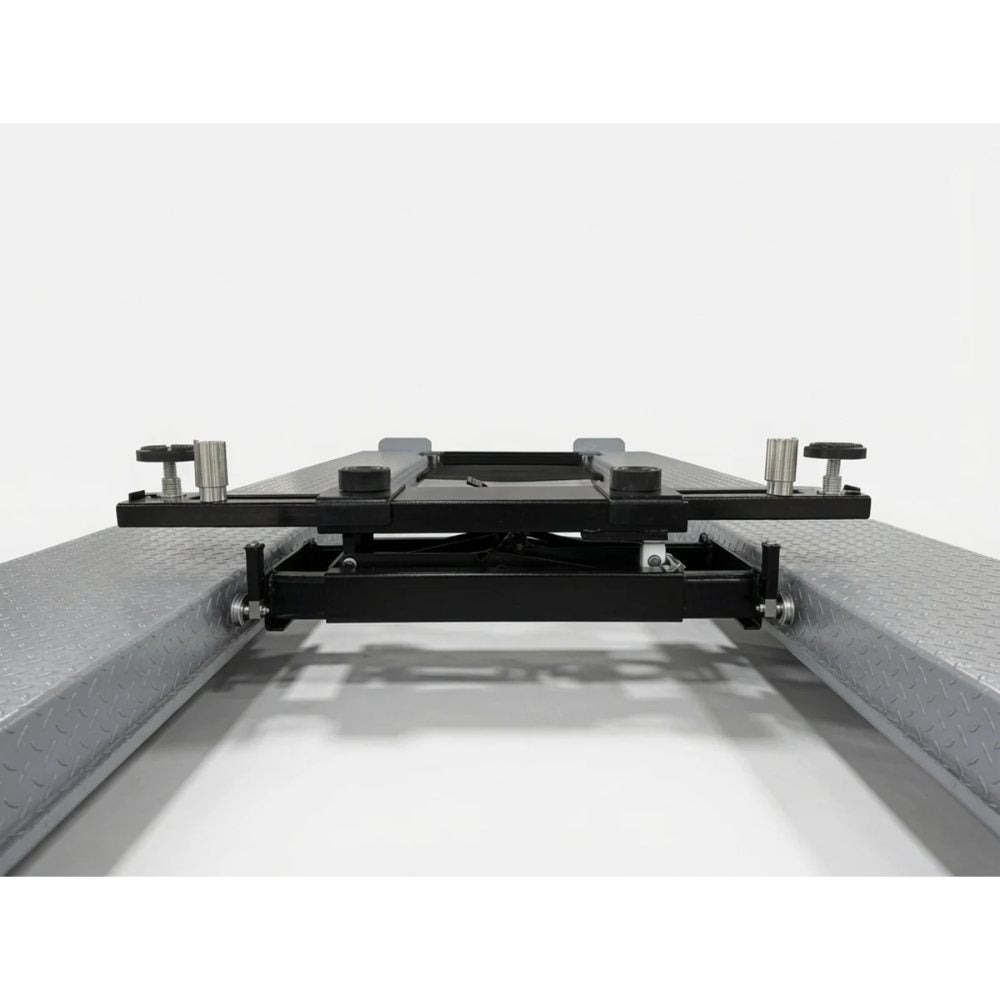

The RJ-5000 rides along the lift runways on end rollers. Roll it to the exact position under the axle or cross-member — not close enough, not settled for. On a job where you are lifting one end, moving the jack, and lifting the other, precise positioning saves time on every vehicle and protects the chassis from pad placement that misses the designed lift point.
✔ 5,000 lb Capacity — Wheels-Off at the Axle End
At 5,000 lbs, the RJ-5000 handles the axle-end load on most passenger cars, full-size pickups, and large SUVs within a compatible four-post lift's rated capacity. That is the figure that matters on a wheels-free jack — not total vehicle weight but the load at the end being lifted.

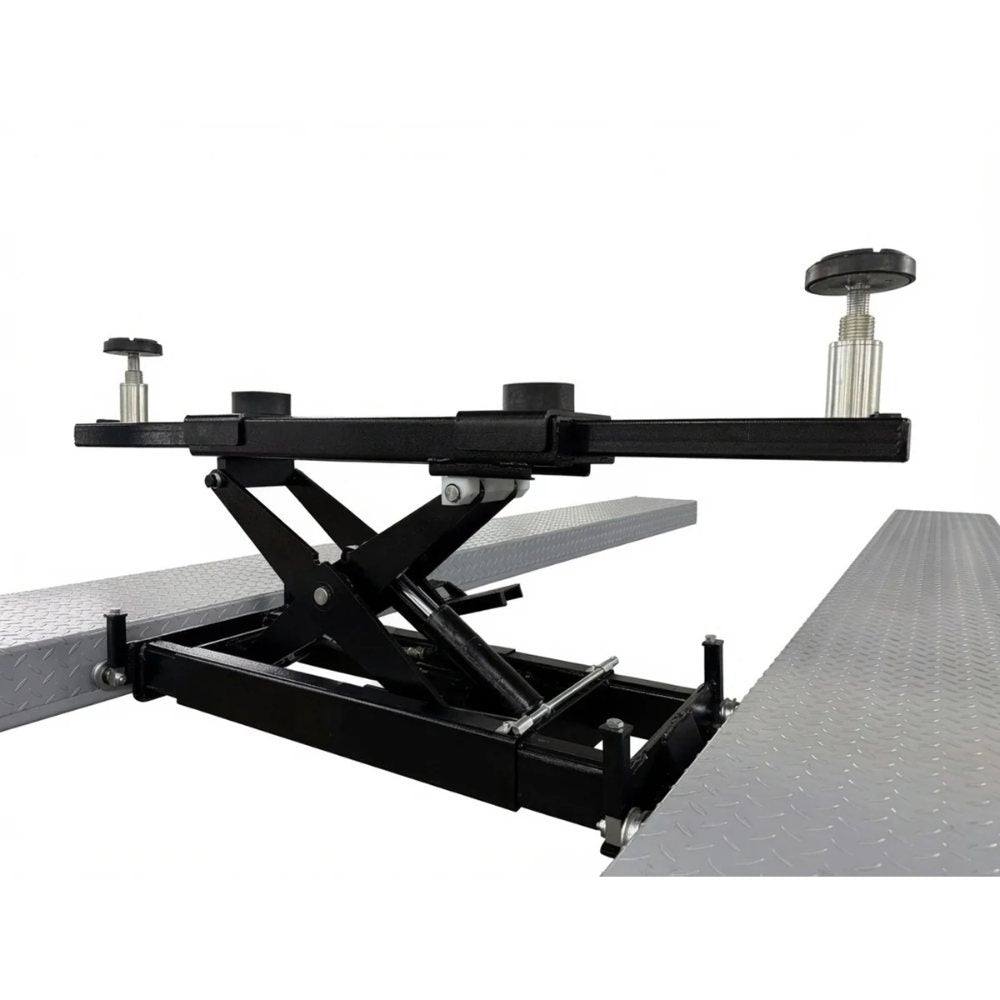

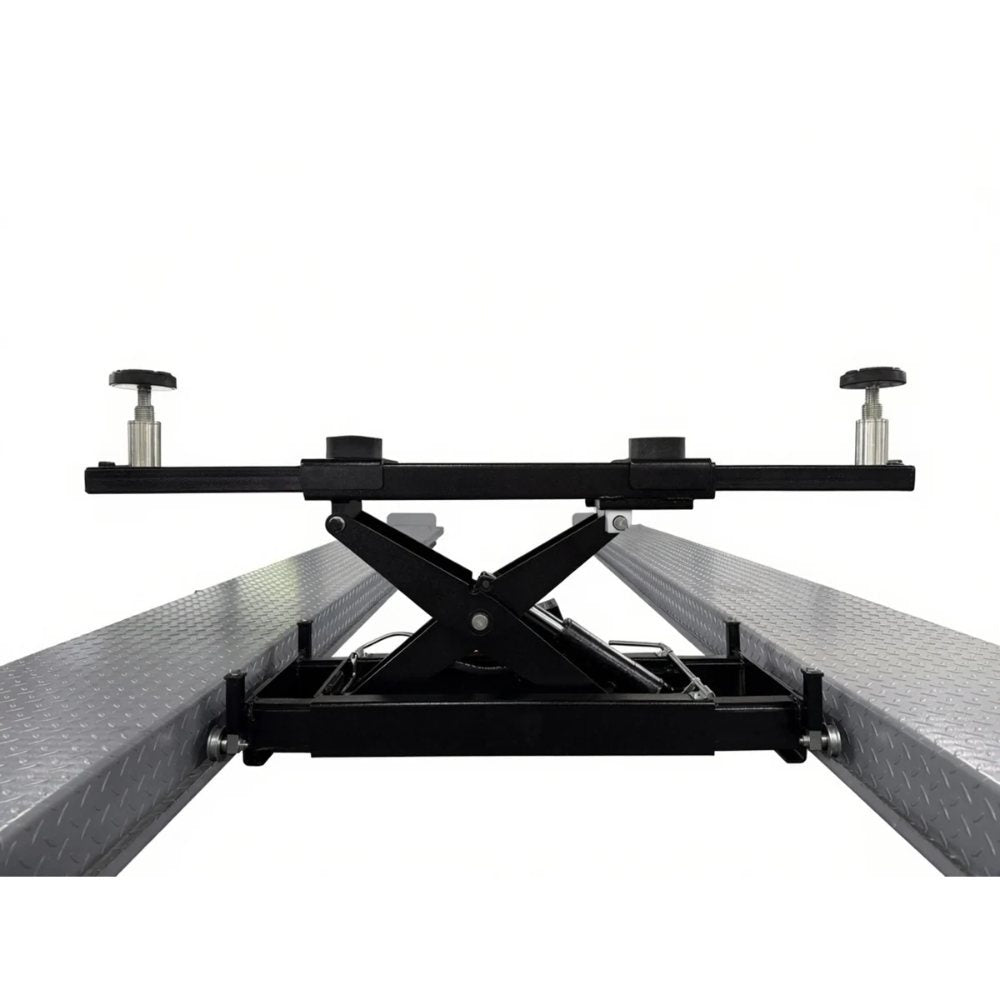

✔ 32.2"–59.8" Adjustable Pad Range
The pad beam adjusts from 32.2 inches to 59.8 inches across — from the narrow lift points on a compact car to the wide frame rails on a full-size pickup. Both rubber pads and two threaded saddle posts on the cross-beam adjust to meet the vehicle's designated lift points across that range.

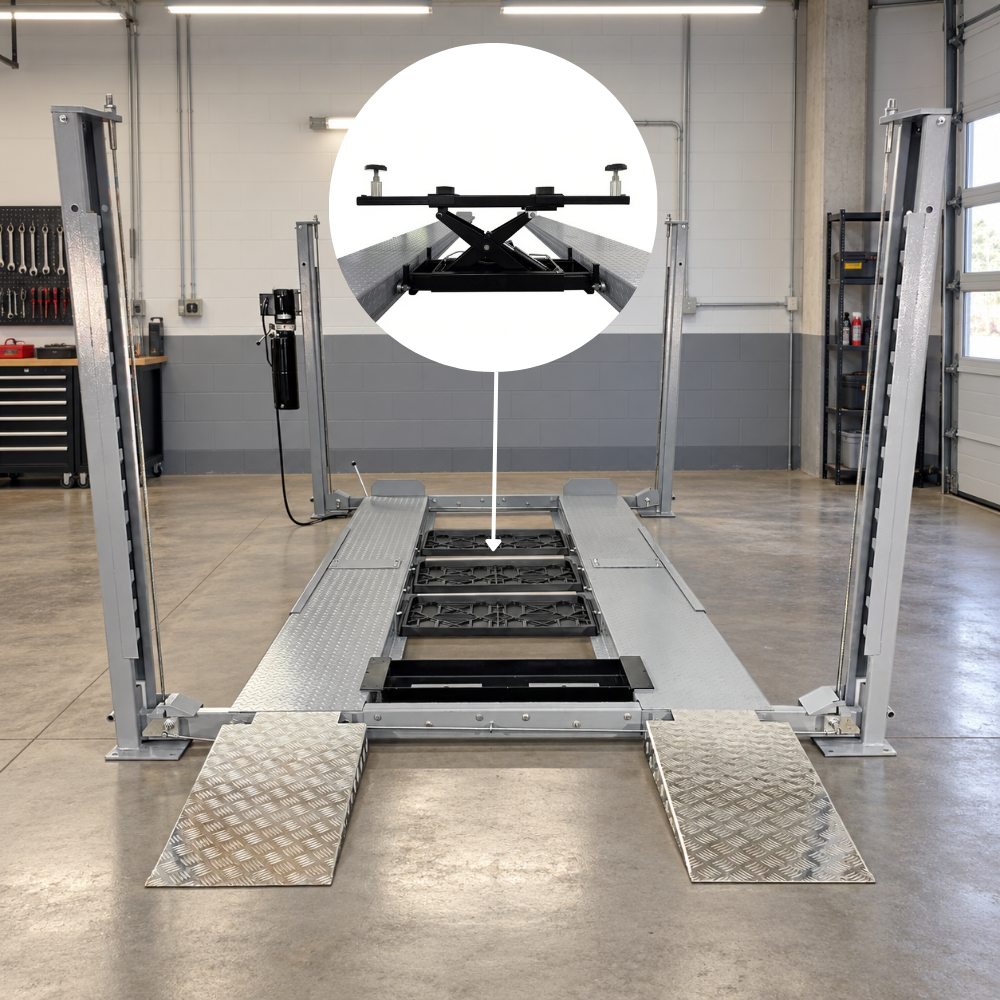

✔ 31.4"–47.2" Runway Span — Fits a Broad Range of Four-Post Lifts
The RJ-5000 spans runway spacings from 31.4 to 47.2 inches — a broader range than a single-model bridge jack. Confirm your lift's runway spacing falls within that range before ordering. If your runway spacing is outside that range, no adapter corrects it.

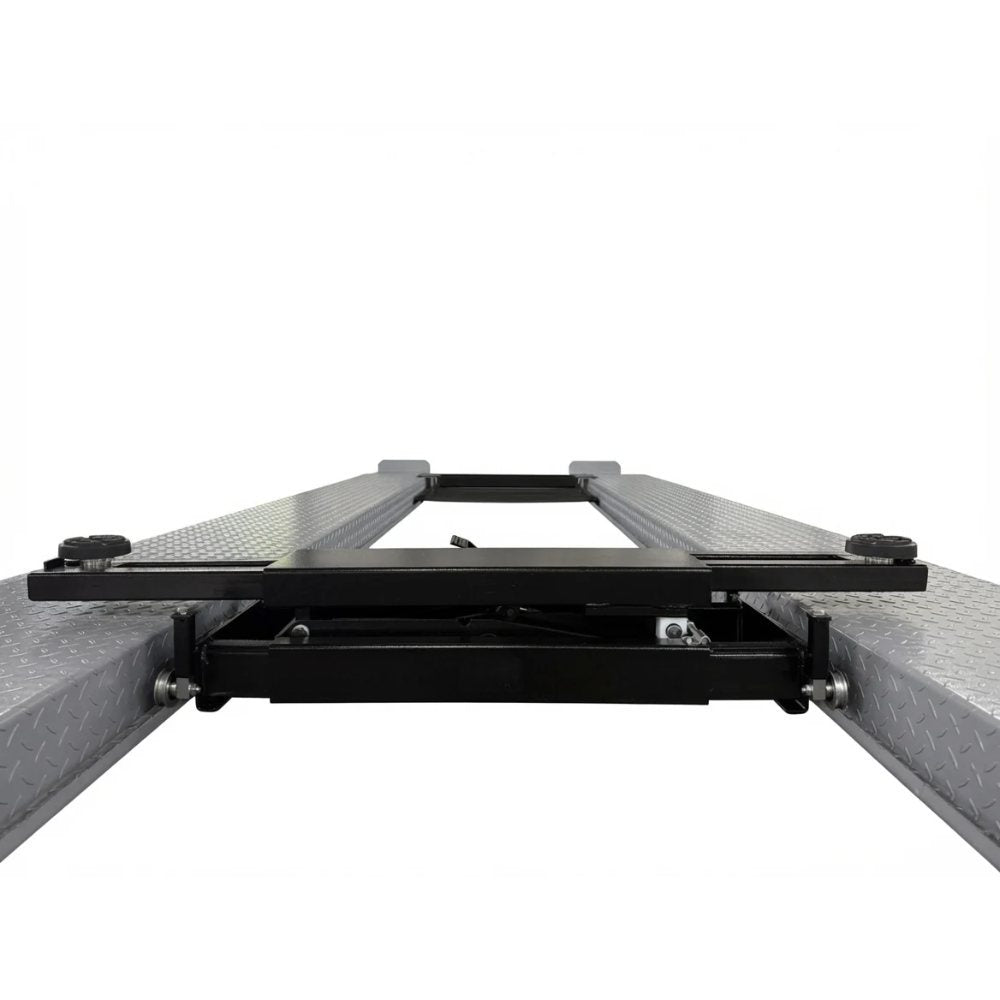

✔ 8.6" Collapsed Height — Check Low Vehicles Before Ordering
The RJ-5000 collapses to 8.6 inches — the height a vehicle has to clear as the jack rolls underneath it. Check this against any vehicle with a low exhaust, a belly pan, or an aftermarket ride height before ordering.

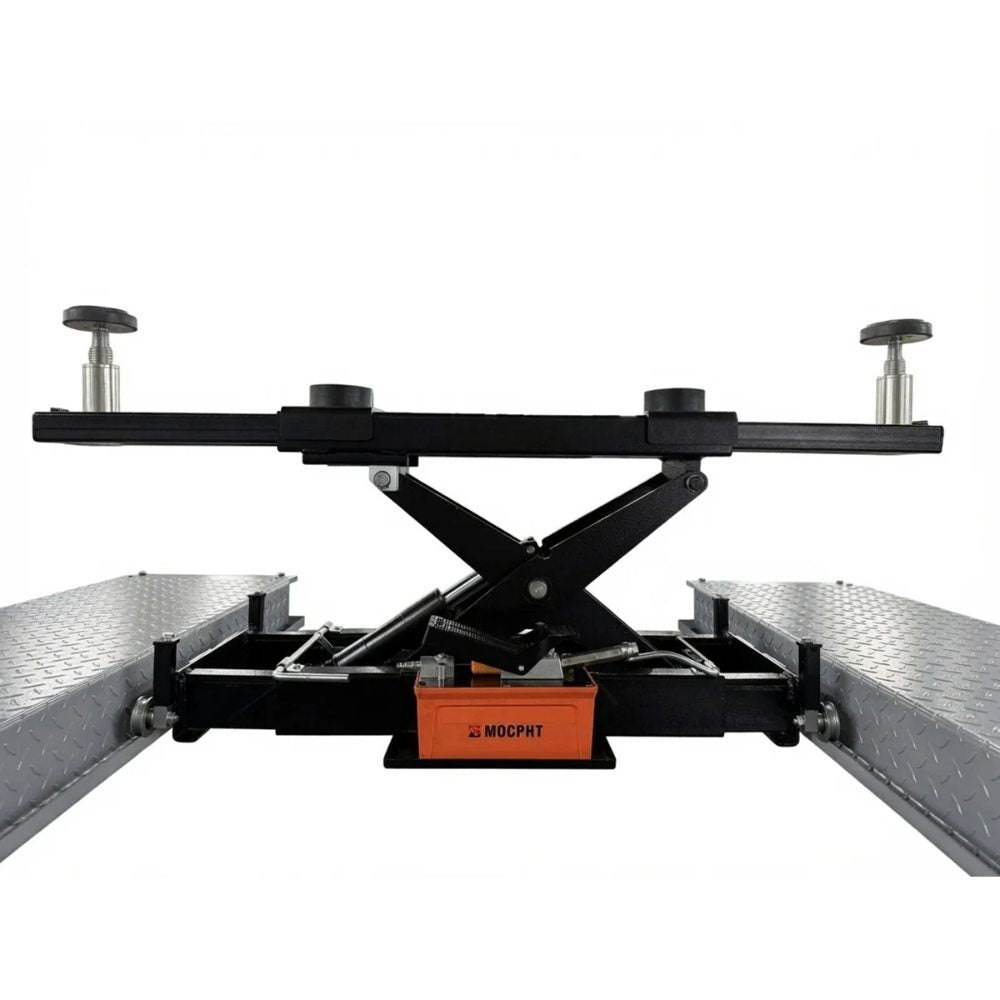

✔ 22.5" Maximum Lift Height — Full Wheels-Off Access
The RJ-5000 raises to 22.5 inches at the pad — enough to bring a wheel fully clear of the runway with room to work on brakes, rotors, bearings, and suspension. One set of 4-inch height adapters is included for vehicles whose lift points sit higher above the runway.

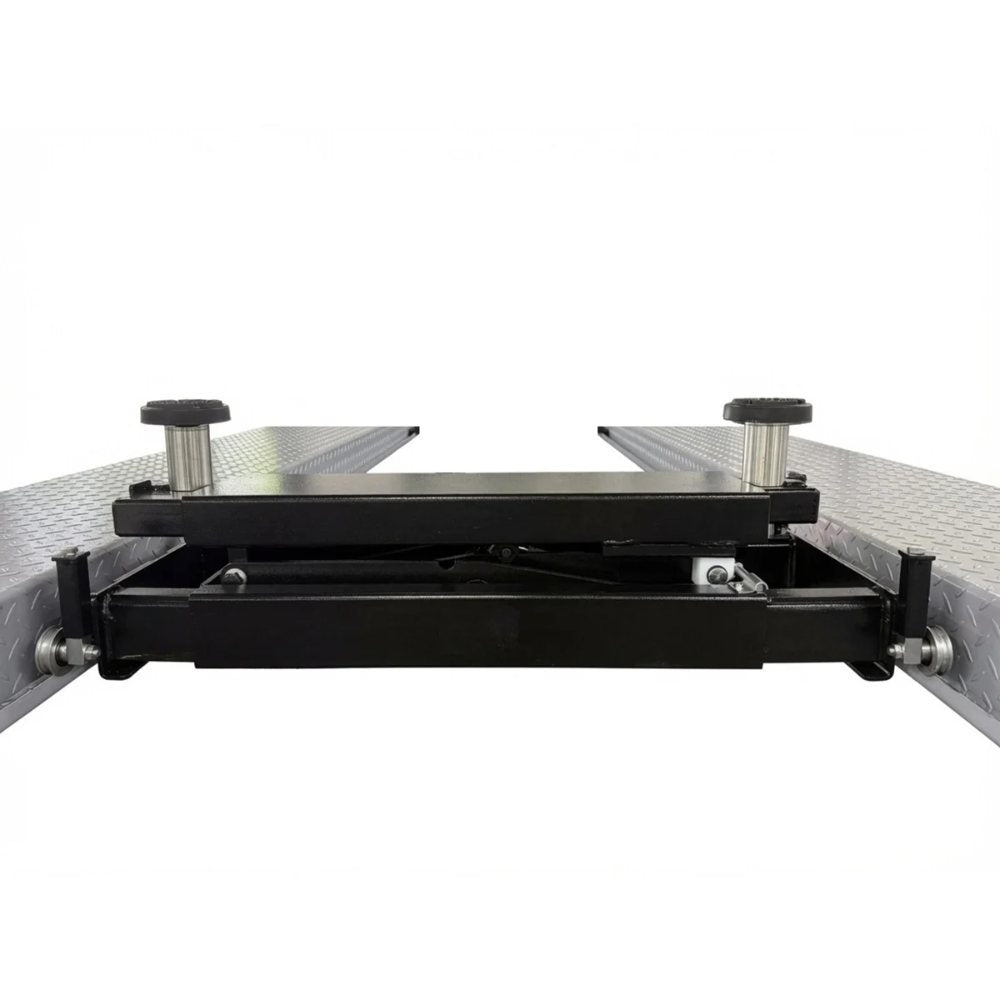

✔ 4" Height Adapters Included — Reaches Taller Frames
One set of 4-inch height adapters ships in the box. These extend the pads upward for full-size pickups, large SUVs, and anything with meaningful ground clearance whose lift points sit higher above the runway. Adapters are a common line item buyers discover is extra after delivery — here they are included.
✔ 1-Year Parts Warranty
The RJ-5000 comes backed by a 1-year parts warranty from Triumph.
