✔ Outside-Slider Column Design — Rigid and Stable
The NOS10000 uses an outside-slider column design — 4.75 x 4.75-inch posts running inside 6.5 x 6.5-inch slide collars. Combined with boxed runway tracks, the entire structure works as one rigid unit rather than four posts that happen to be joined. That rigidity is what makes a 10,000 lb lift stable under an uneven load.
✔ 14 Locking Positions — Manual Deadbolt with Secondary Redundant Safety
Fourteen locking positions — more than any other lift in the Triumph four-post range — engage via manual deadbolt locks with an oversized release linkage. A deliberate, firm movement is required to release the load, not a nudge. Behind the primary locks sits a secondary redundant safety system, so the NOS10000 is not relying on a single mechanism to hold 10,000 lbs. A single-point release drops all four columns together from one control.
✔ 87 Inches of Lift Height — 81.5 Inches of Working Clearance
Lift height at the top of the runway is 87 inches — how far the vehicle travels up. Height under the runway is 81.5 inches — the space you actually stand in with the deck over your head. At 81.5 inches, most adults work upright underneath the vehicle without stooping.

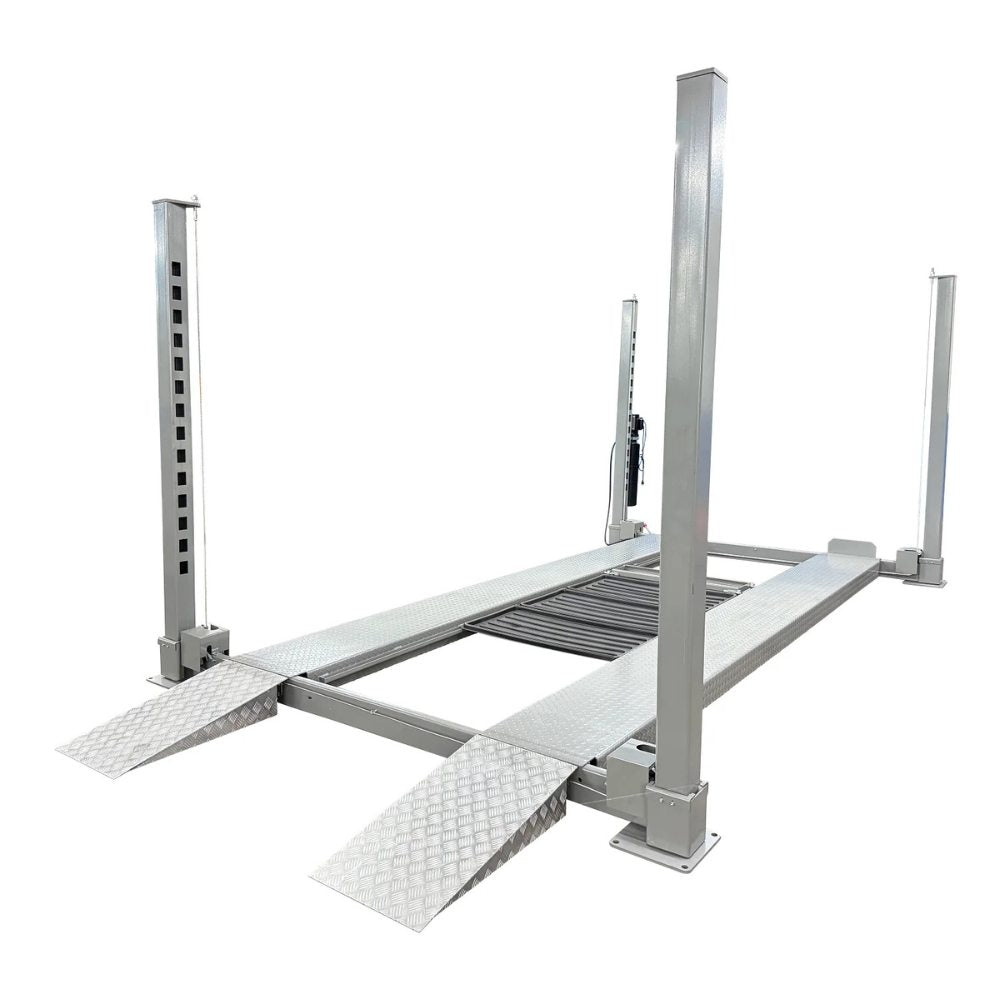

✔ 29 lb Aluminum Ramps — One Person Can Move Them
The approach ramps are aluminum, 36 inches long, and weigh 29 lbs each. That is the kind of detail that matters every time the ramps come off the lift. Steel ramps of that length are a two-hand, bad-back proposition. At 29 lbs, one person carries a ramp in one hand — a meaningful difference on a lift that gets repositioned or set up by a single operator.
✔ 109-Inch Drive-Thru Width — Full-Size Pickups and Large SUVs
The drive-thru opening between the columns is 109 inches on a 123-inch overall frame. Full-size pickups, large SUVs, and extended-cab vehicles drive straight on without the tight positioning a narrower four-post demands.
✔ 110V Plug-In Operation — No Electrical Upgrade Needed
Despite its 10,000 lb capacity, the NOS10000 runs on standard 110V household power. No three-phase service, no electrician, no dedicated circuit required before delivery.
✔ Complete Accessory Package Included
The NOS10000 ships with everything needed for immediate use — drip trays to protect the lower vehicle from fluid drips, a rolling jack tray for one-end service with a bottle or floor jack, heavy-duty poly-coated casters for repositioning the empty lift, wheel chocks to secure the upper vehicle, and anchor bolts for optional permanent installation.
✔ Cable Keepers — Prevents Cable Run-Off
Cable keepers hold the lift cables in their sheaves and prevent run-off — a small but important detail that prevents a genuinely disruptive failure, particularly on a lift used for long-term storage.
