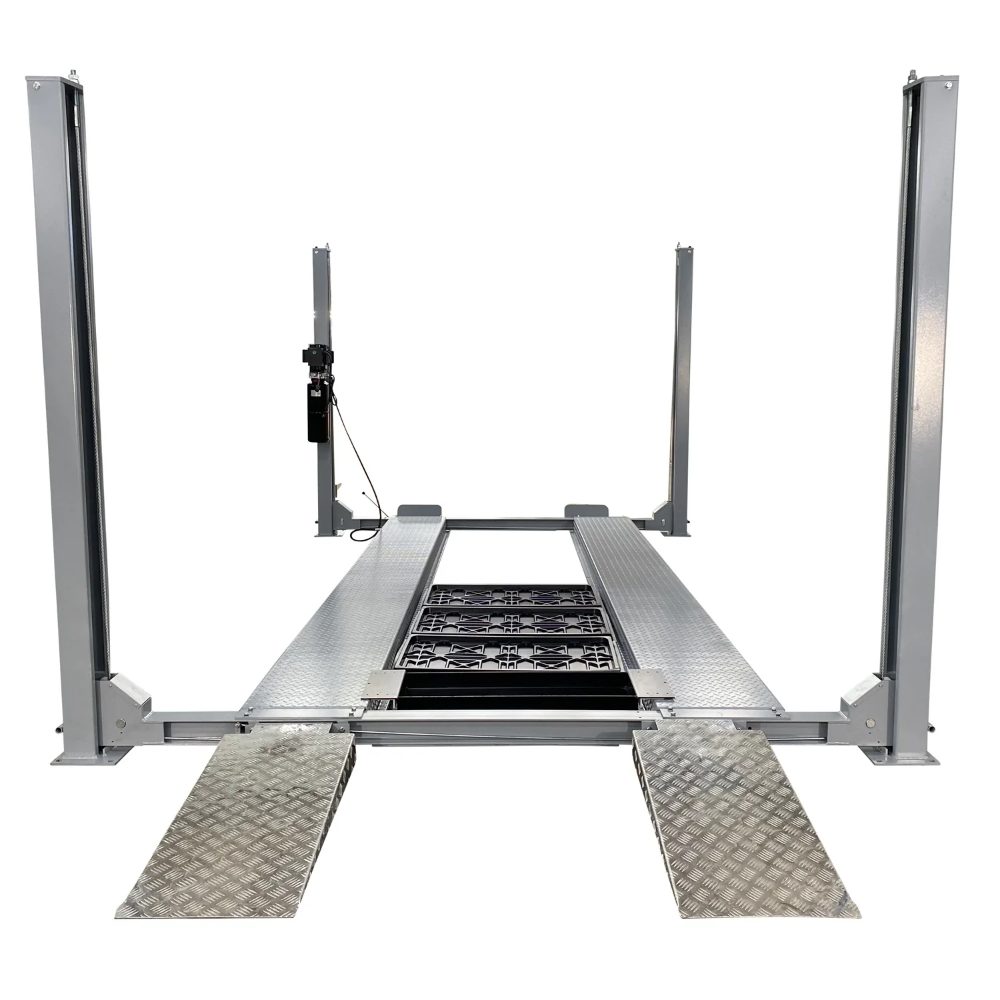

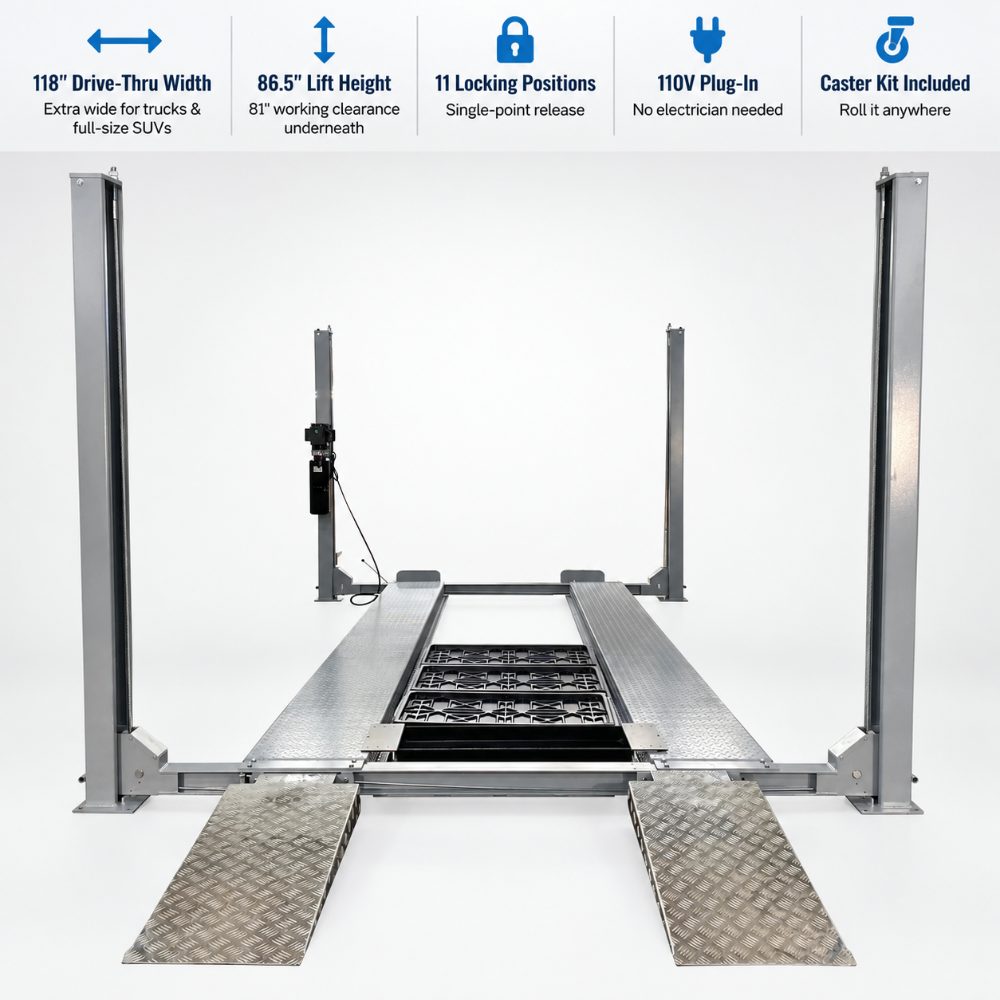

✔ 118-Inch Drive-Thru Width — Built for Full-Size Trucks and SUVs
The NSS-11 has a 118-inch drive-thru width on a 130-inch overall frame. Full-size pickups, crew cabs, wide-body SUVs, and extended-cab trucks drive straight on without the tight positioning a narrower four-post demands. If the vehicles you own are the reason you need a wider lift, this is the spec that decides it.
✔ 11,000 lb Capacity — Cars, Trucks, and Light Commercial Vehicles
At 11,000 lbs, the NSS-11 handles the full range of passenger cars, full-size trucks, SUVs, and light commercial vehicles. A meaningful step up from the 8,000 lb NSS-8 range for owners whose vehicles regularly push the upper end of a standard four-post capacity rating.

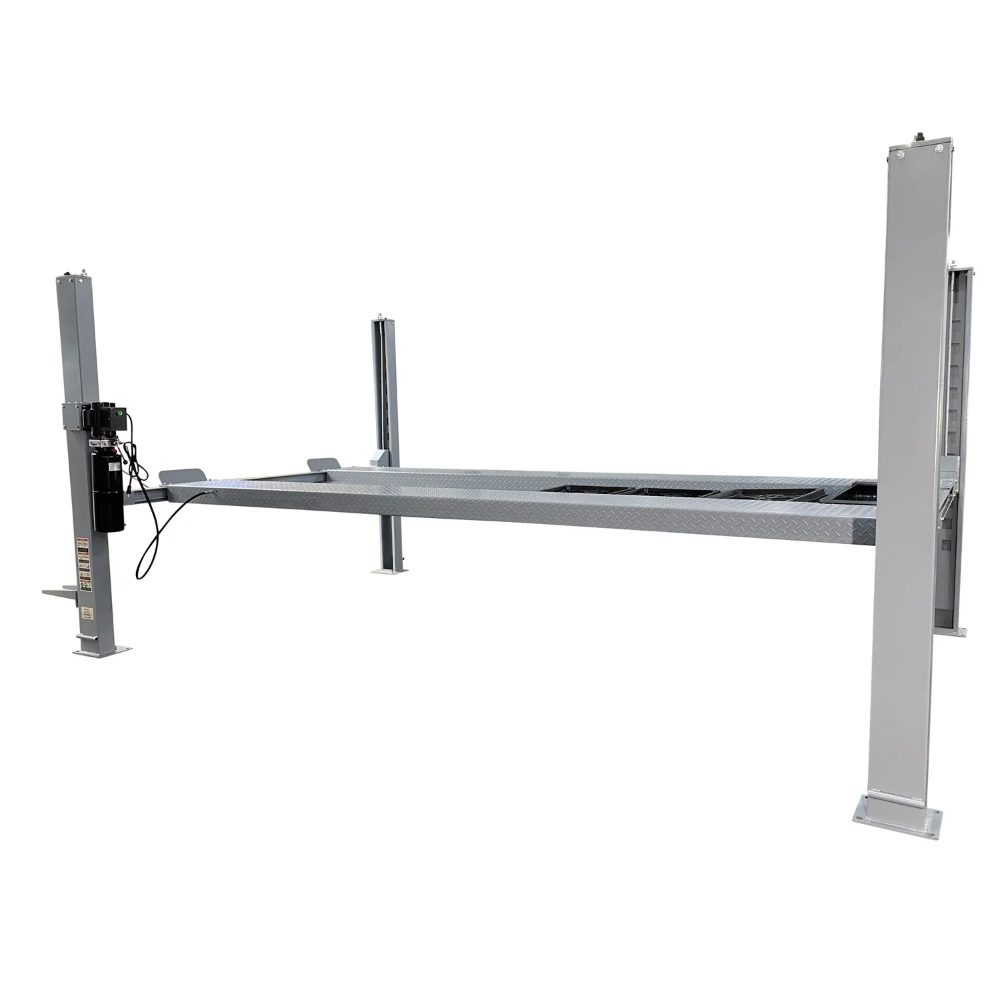

✔ 81 Inches of Working Clearance Under the Runway
Lift height at the top of the runway is 86.5 inches — how far the vehicle travels up. Height under the runway is 81 inches — the space you actually stand in with the deck over your head. At 81 inches, most adults work upright underneath the vehicle without stooping.
✔ 11 Locking Positions — Single-Point Release
Eleven automatic locking positions engage as the vehicle rises — one more than the standard NSS-8 range. A raised vehicle rests on steel mechanical locks rather than hydraulic pressure, making it safe to leave a vehicle stored at height for an extended period. A single-point release drops all four columns together from one control — no walking around the lift to free each post individually.

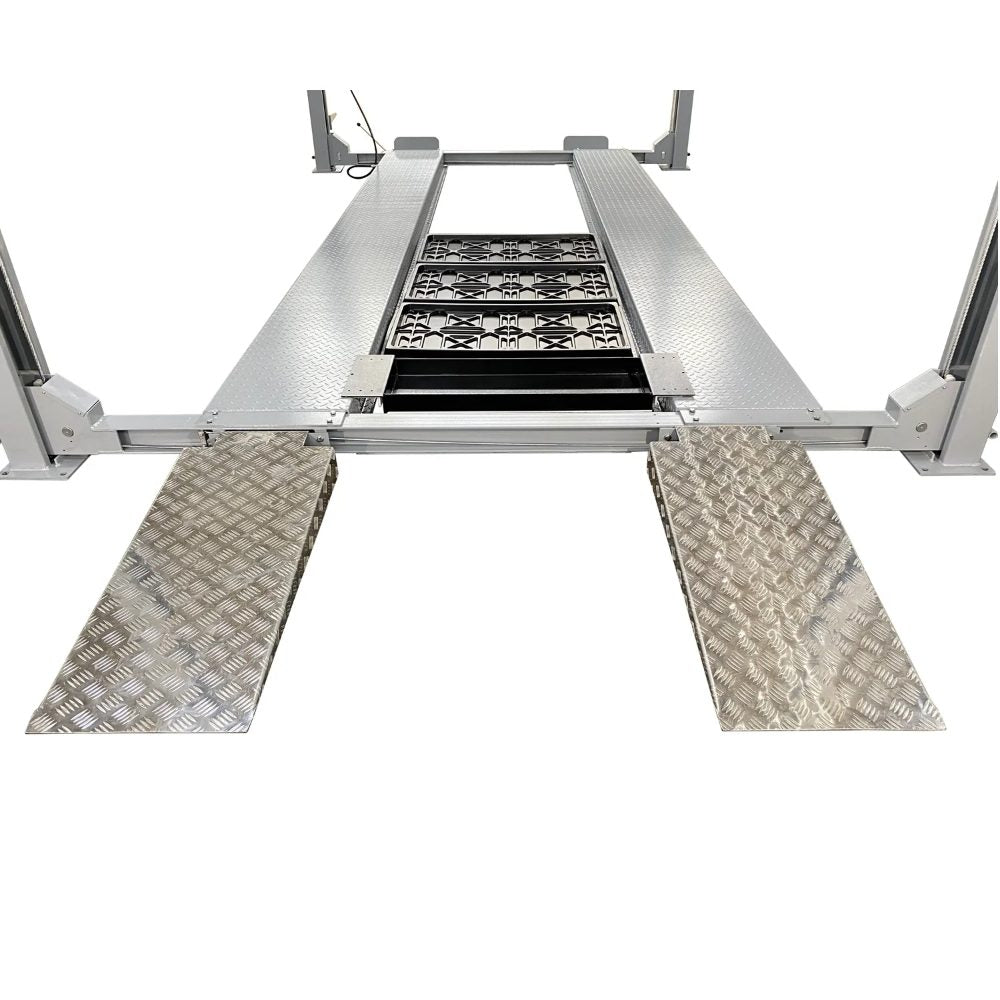

✔ Adjustable Runway Spacing — 39" or 44.5" Between Runways
The NSS-11 offers two runway spacing settings — 39 inches or 44.5 inches between runways. Adjust to suit the vehicles you lift most. The 19.5-inch runway width provides a stable, generous platform for a wide range of vehicle track widths.

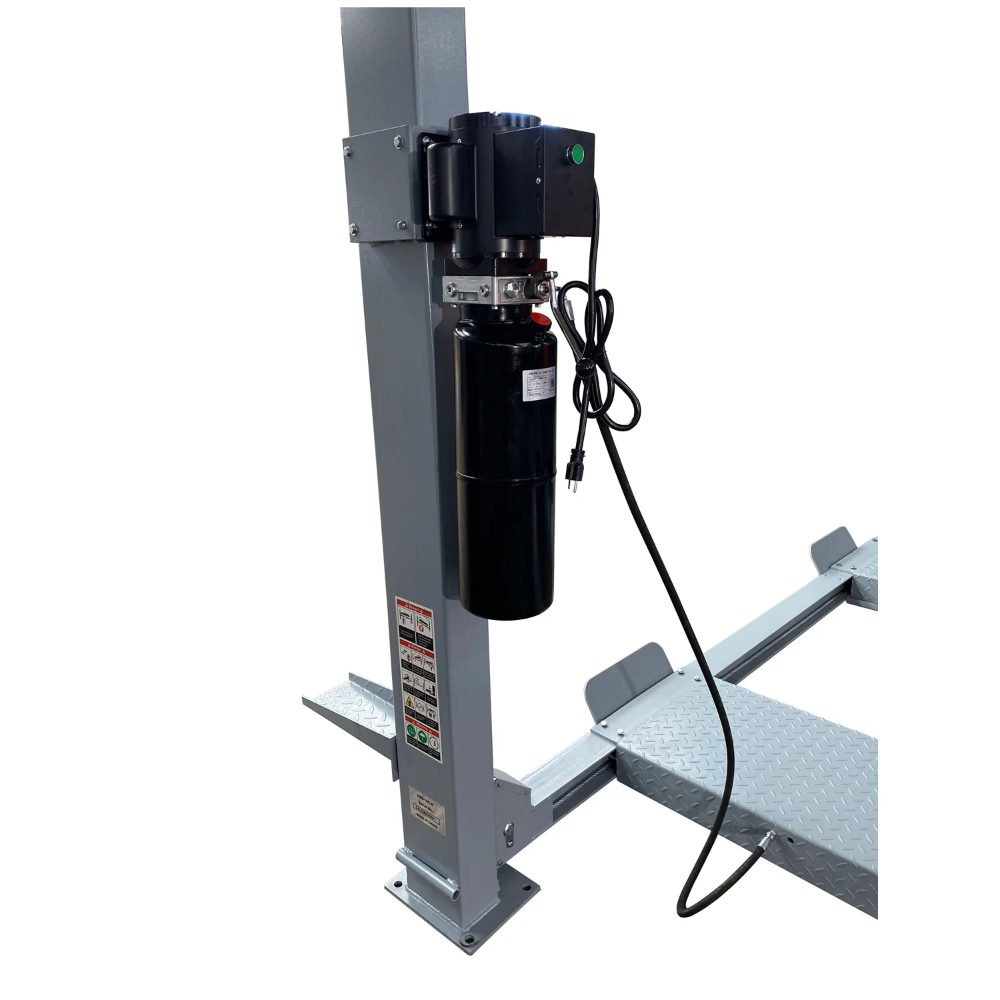

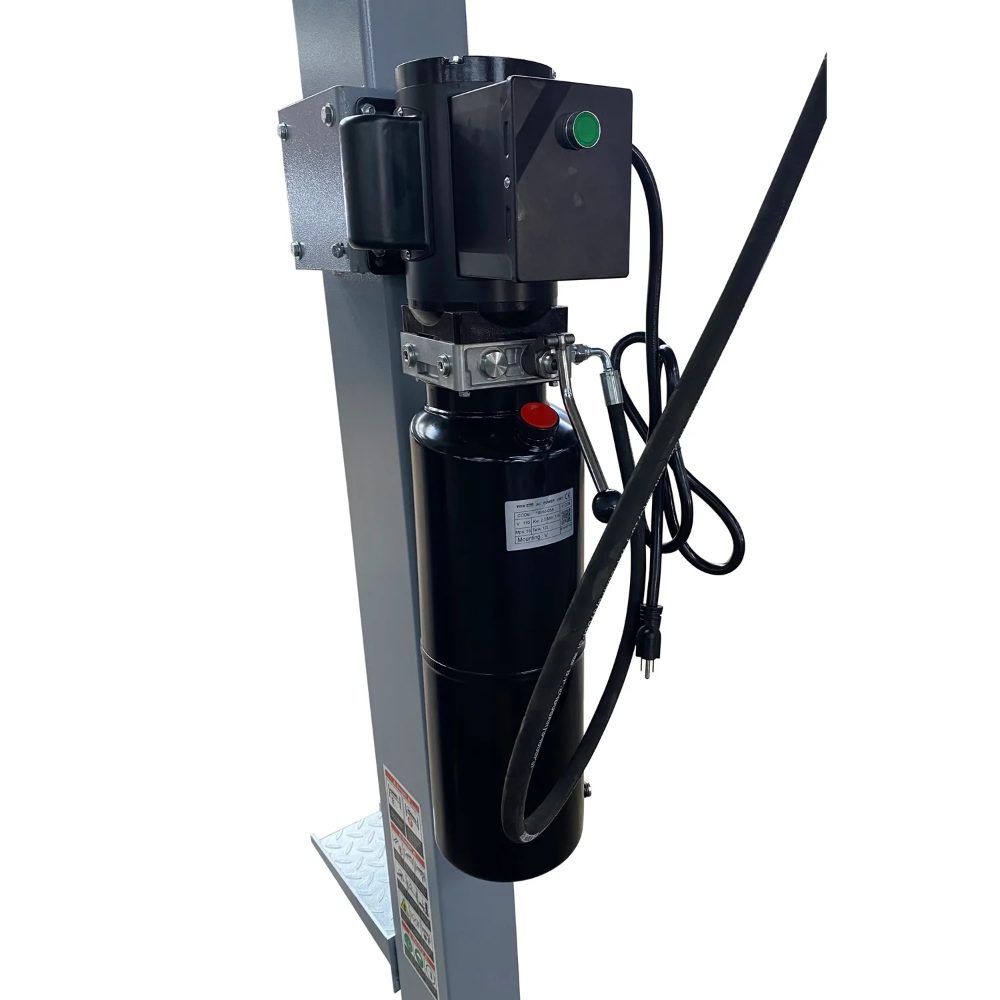

✔ 110V Plug-In Operation — No Electrical Upgrade Needed
Despite its 11,000 lb capacity, the NSS-11 runs on standard 110V, 60 Hz, single-phase power. No three-phase service, no electrician, no dedicated circuit required before delivery.
✔ Six Drip Trays and Wheel Chocks Included
Six drip trays — double the number included with the NSS-8 — cover the full underside footprint when stacking vehicles, catching oil, coolant, and brake fluid before they reach the vehicle below. Wheel chocks are also included to keep the upper vehicle securely positioned on the runway.

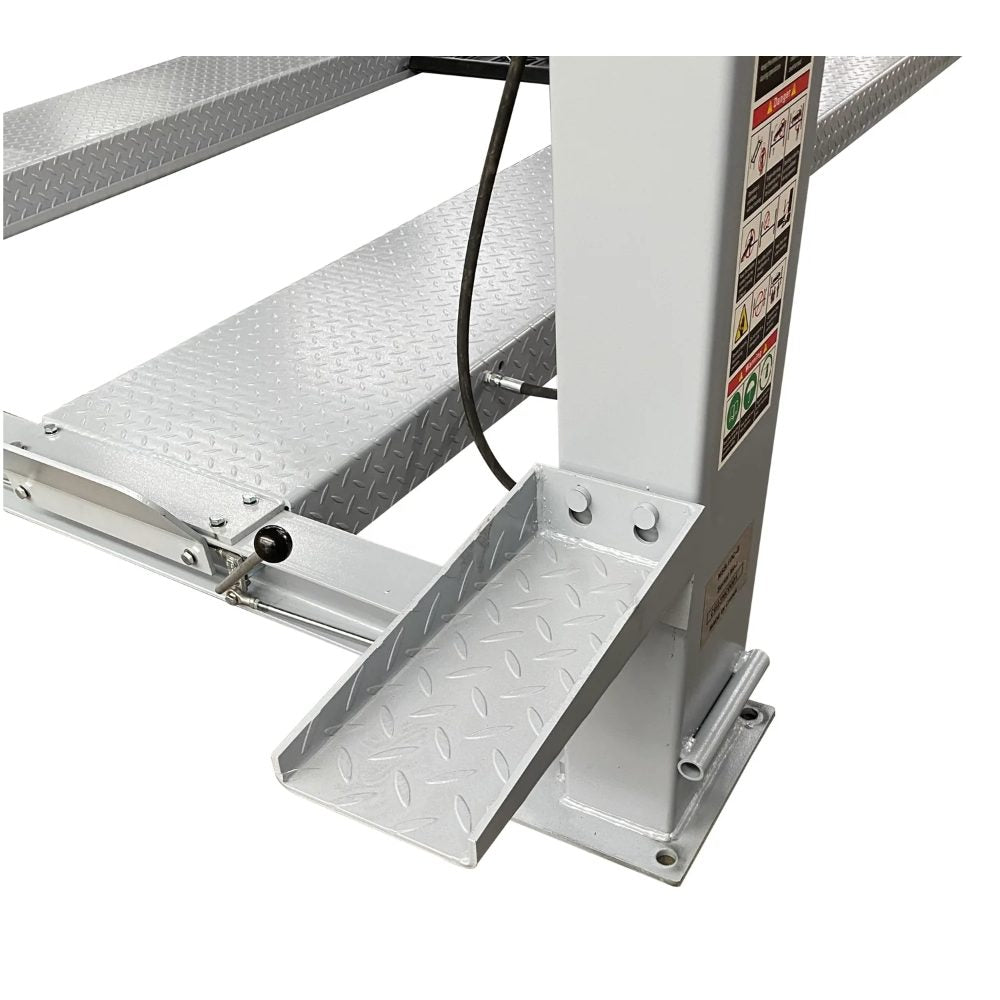

✔ Portable — Caster Kit and Jack Tray Included
The included caster kit lets you reposition the unloaded lift anywhere in the shop or garage when your layout changes. The steel jack tray accepts a standard bottle or floor jack to lift one end of the vehicle for brake, tire, and suspension work.
