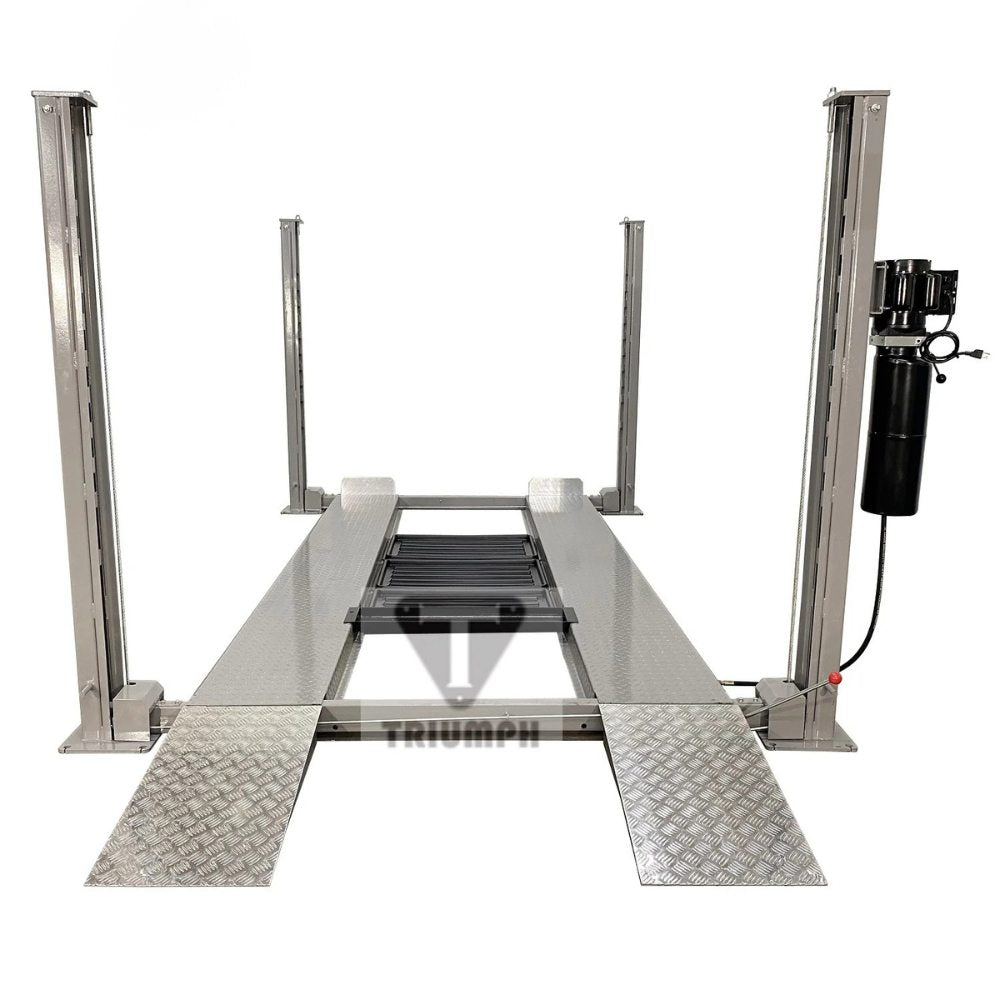

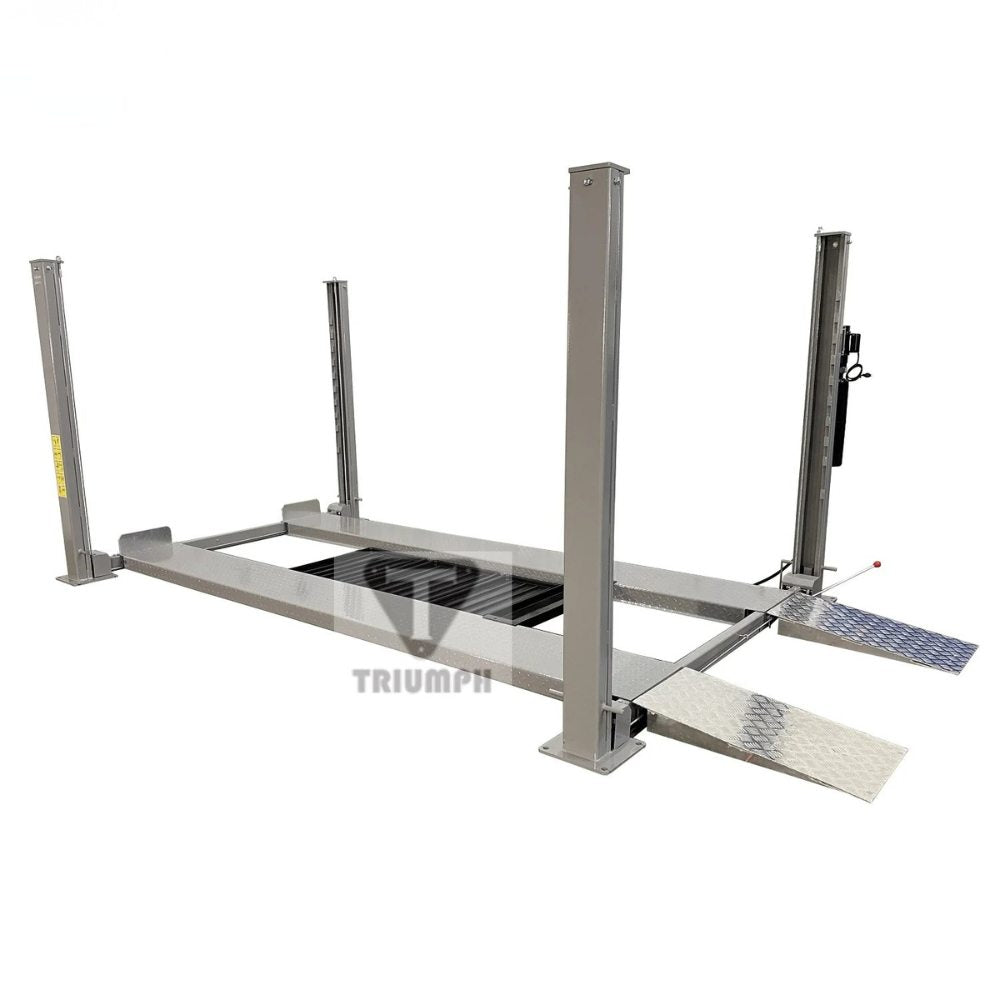

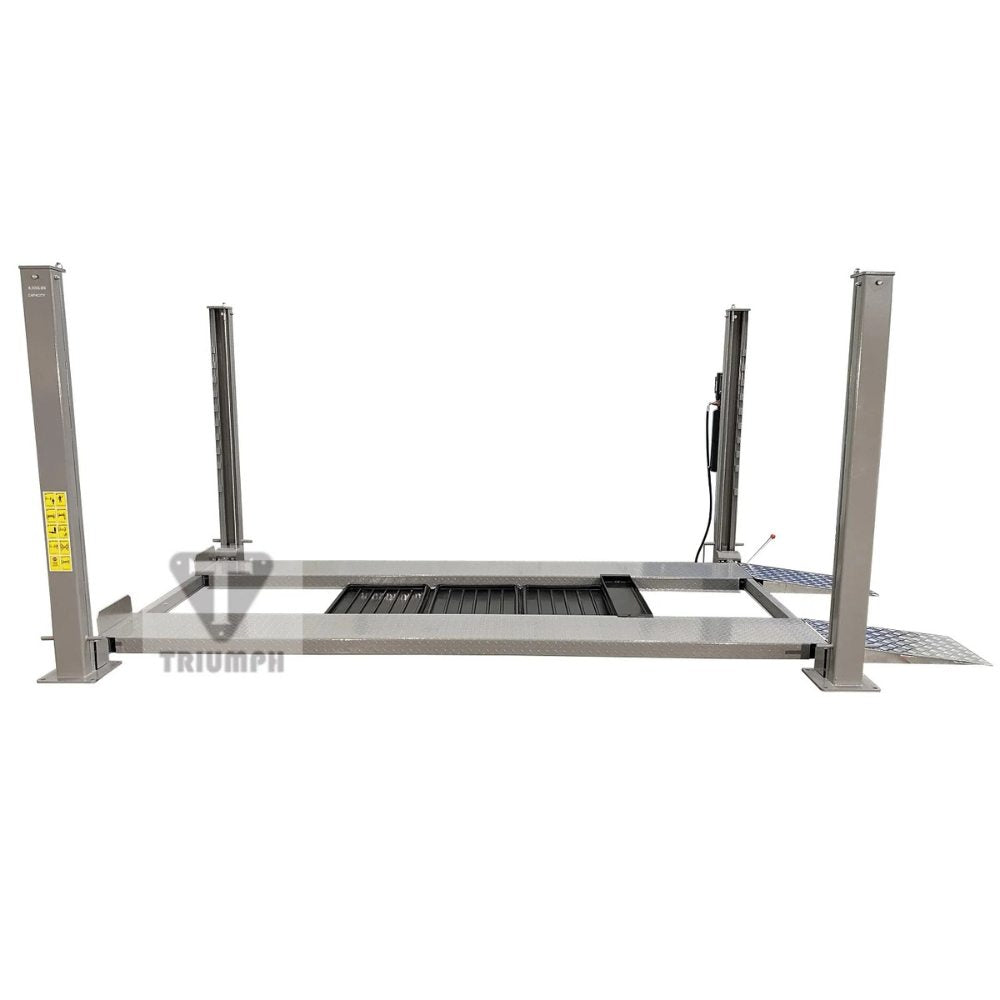

Triumph NSS-8 Classic | 8,000 lb Short Four-Post Car Lift

✔ 141 Inches Without Ramps — Built for Shorter Garages

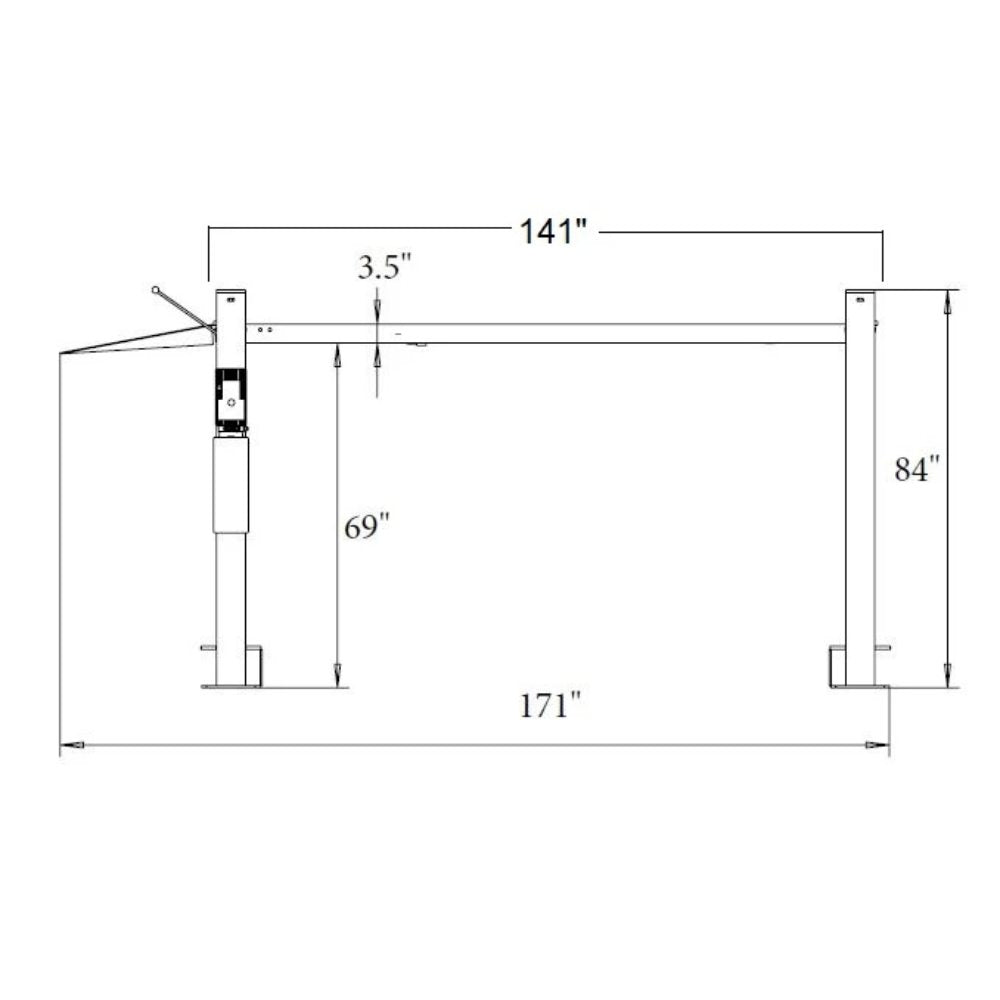

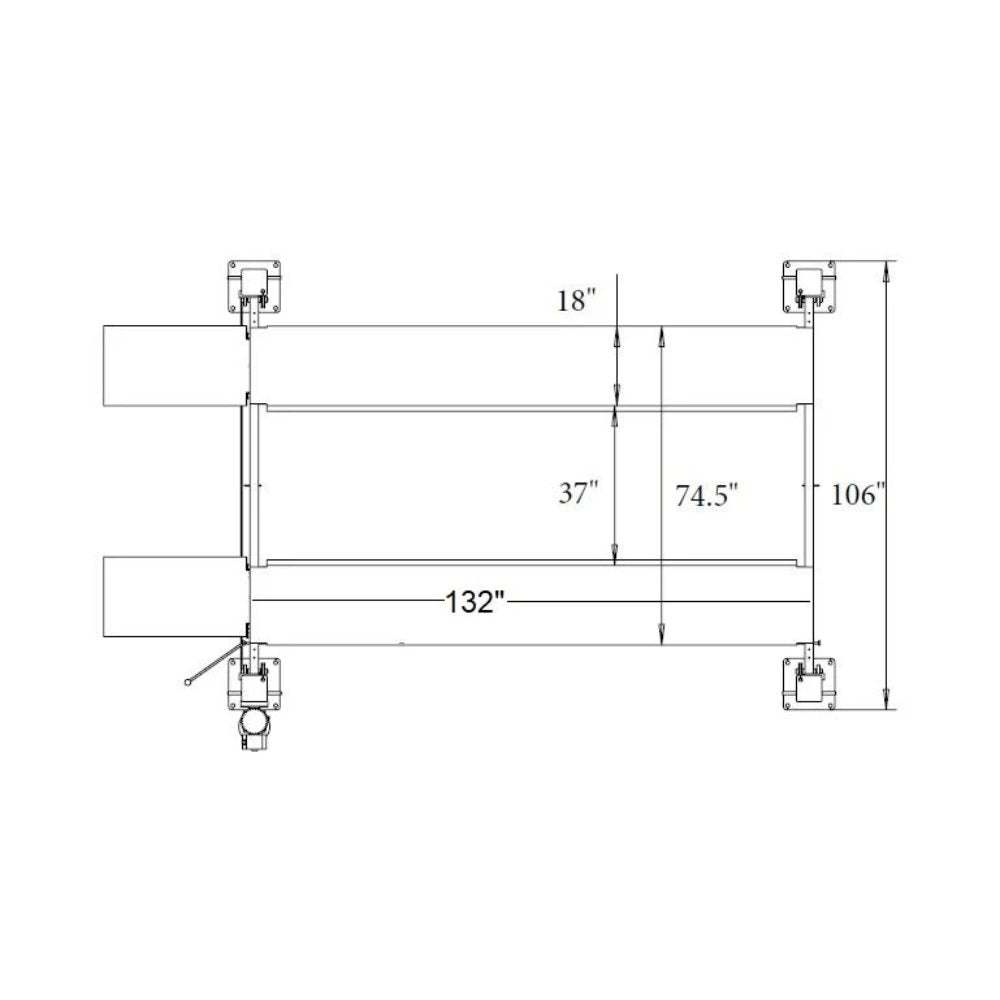

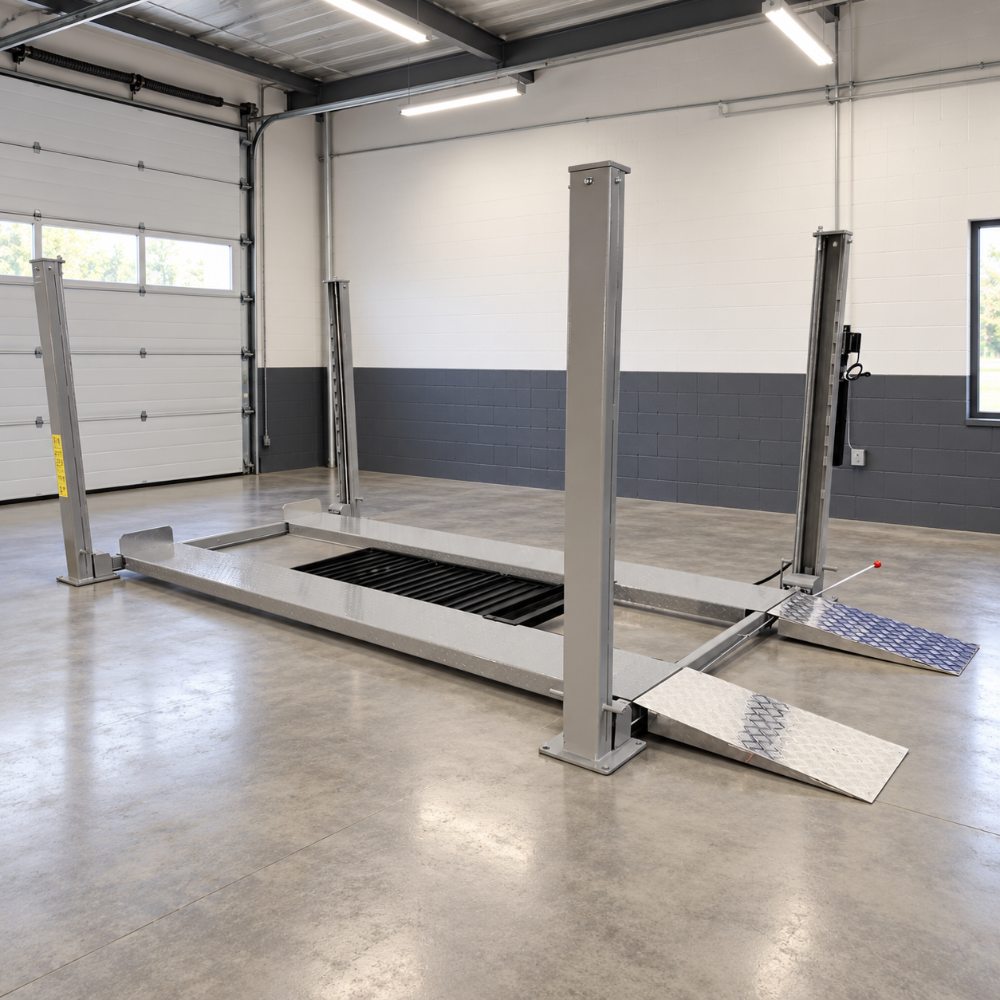

The NSS-8 Classic runs 141 inches overall without approach ramps — 34 inches shorter than the standard NSS-8. That difference is the entire reason this model exists. Garages too short for a full-length four-post can often take the Classic. Measure your bay length against 141 inches before ordering — that is the number that decides it.

✔ Same 8,000 lb Capacity as the Standard NSS-8

The shorter deck does not compromise the capacity. The NSS-8 Classic carries the same 8,000 lb rated load as the full-size NSS-8 — suitable for most passenger cars, light trucks, and SUVs within that weight range.

✔ 10 Locking Positions — Precise Storage Height Control

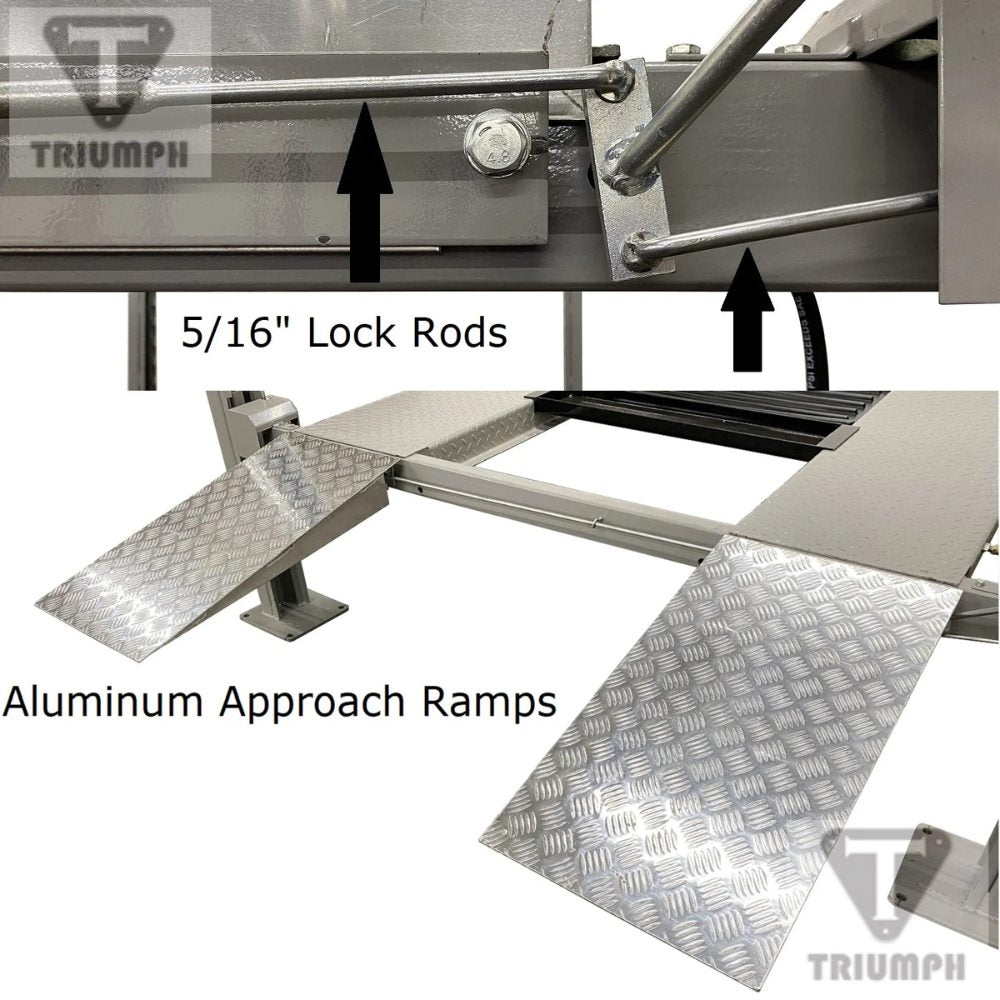

Ten automatic locking positions engage as the lift rises. On a lift used for long-term storage, the lock count matters — ten positions means parking the upper vehicle at the exact height that clears the vehicle underneath rather than the nearest notch. A raised vehicle rests on mechanical steel locks rather than hydraulic pressure, making it safe to leave stored at height for months. A single-point release drops all four columns together from one location.

✔ 72-Inch Lift Height — 69 Inches of Working Clearance

Lift height at the top of the runway is 72 inches. Height under the runway is 69 inches — the space you work in with the deck over your head. Most adults work upright underneath the vehicle without stooping.

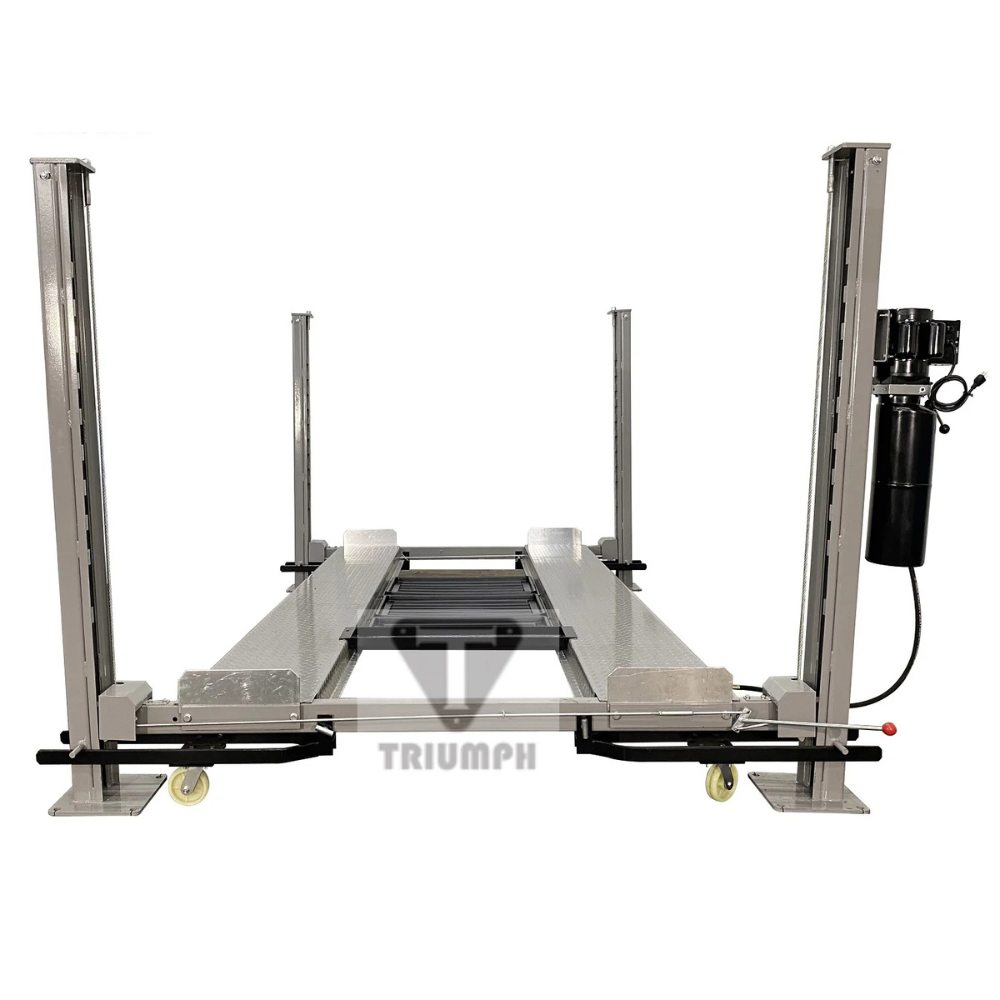

✔ Fully Portable — Caster Kit Included

The included four-wheel caster kit lets one person lift one end and roll the assembled lift to the side of the garage when the floor is needed for something else. A four-post that moves is a four-post you can put away — that is the whole argument for this style of lift in a shorter garage.

✔ 110V Plug-In Operation — Standard Garage Outlet

Runs on standard 110V household power from a normal garage outlet. No electrician, no dedicated circuit, no delay between delivery and first use. Full lift cycle completes in approximately 40 seconds. Steel oil tank on the hydraulic power unit.

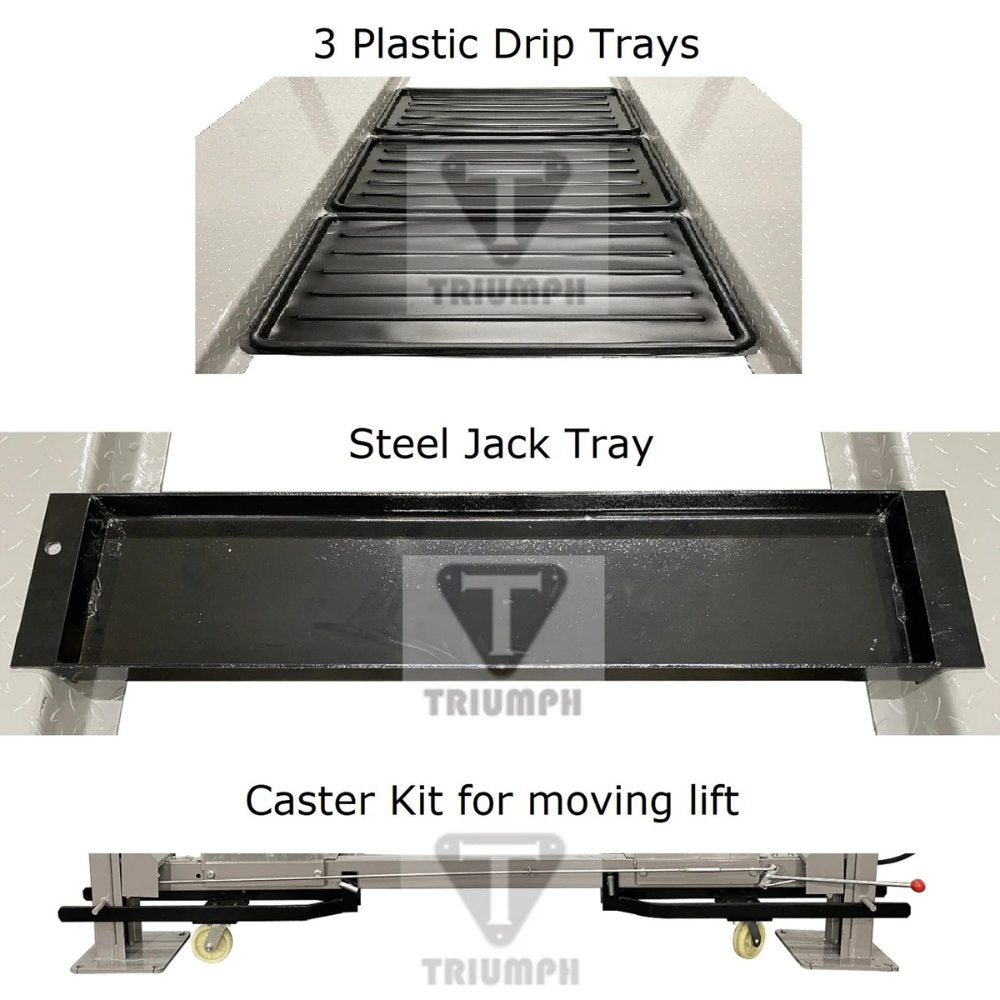

✔ Steel Jack Tray & Three Drip Trays — All Included

Steel jack tray accepts a standard bottle or floor jack to lift one end of the vehicle for brake, tire, and suspension work. Three drip trays catch oil, coolant, and brake fluid from the upper vehicle before they reach the one parked below. Both included in the box at no extra charge.
