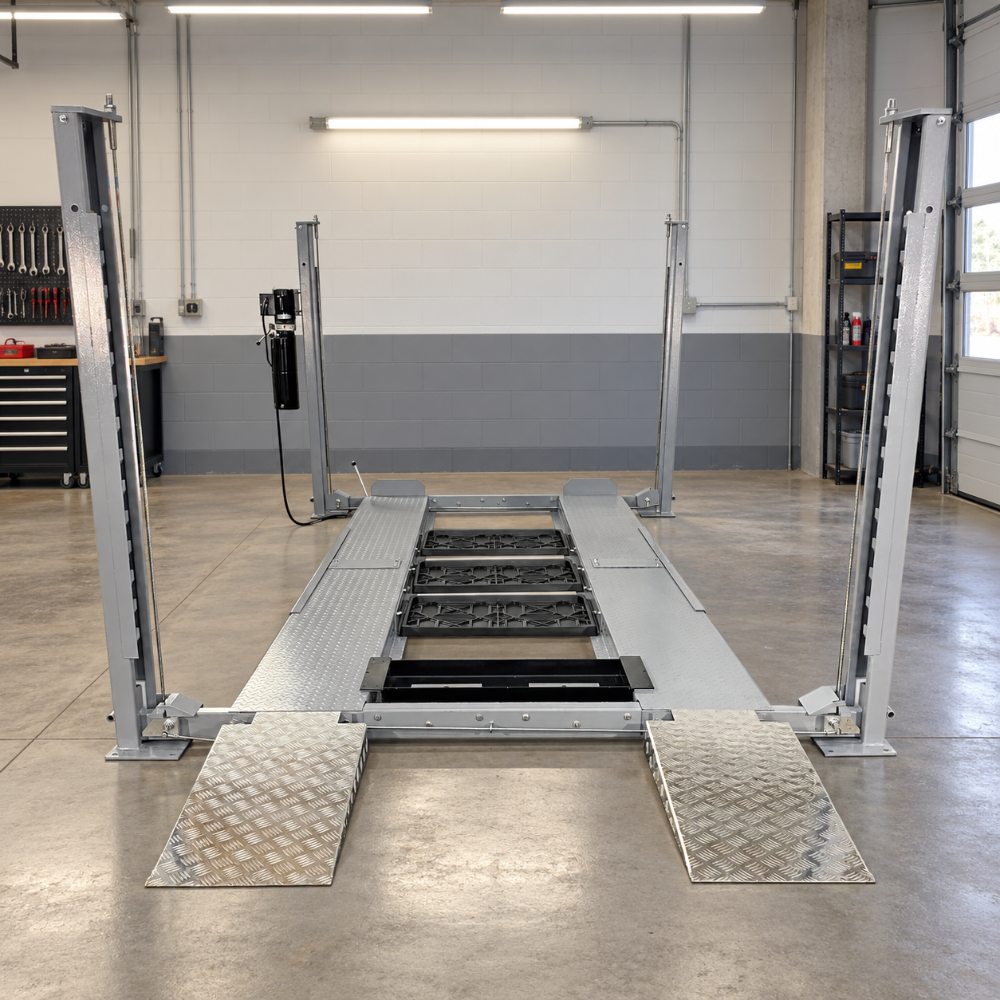

Triumph NSS8X-1 | 8,000 lb Four-Post Car Lift | Lift-Gate Delivery

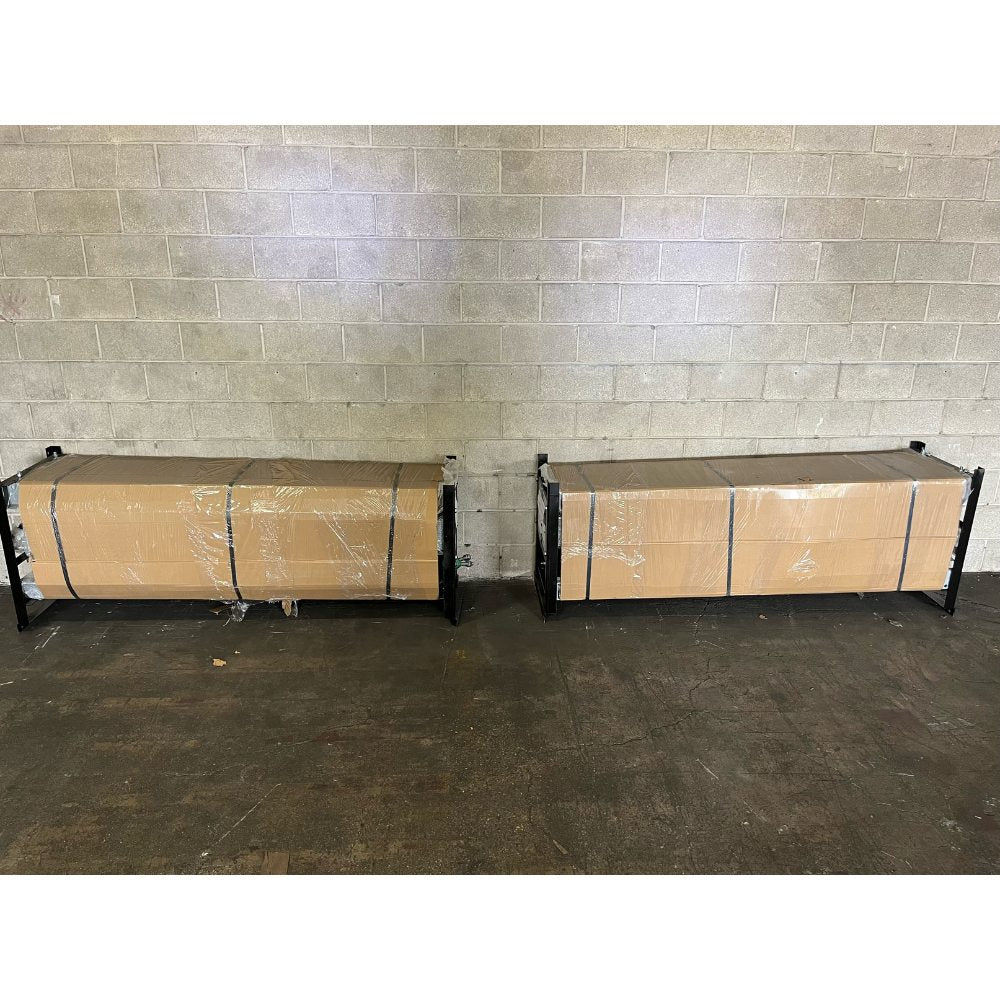

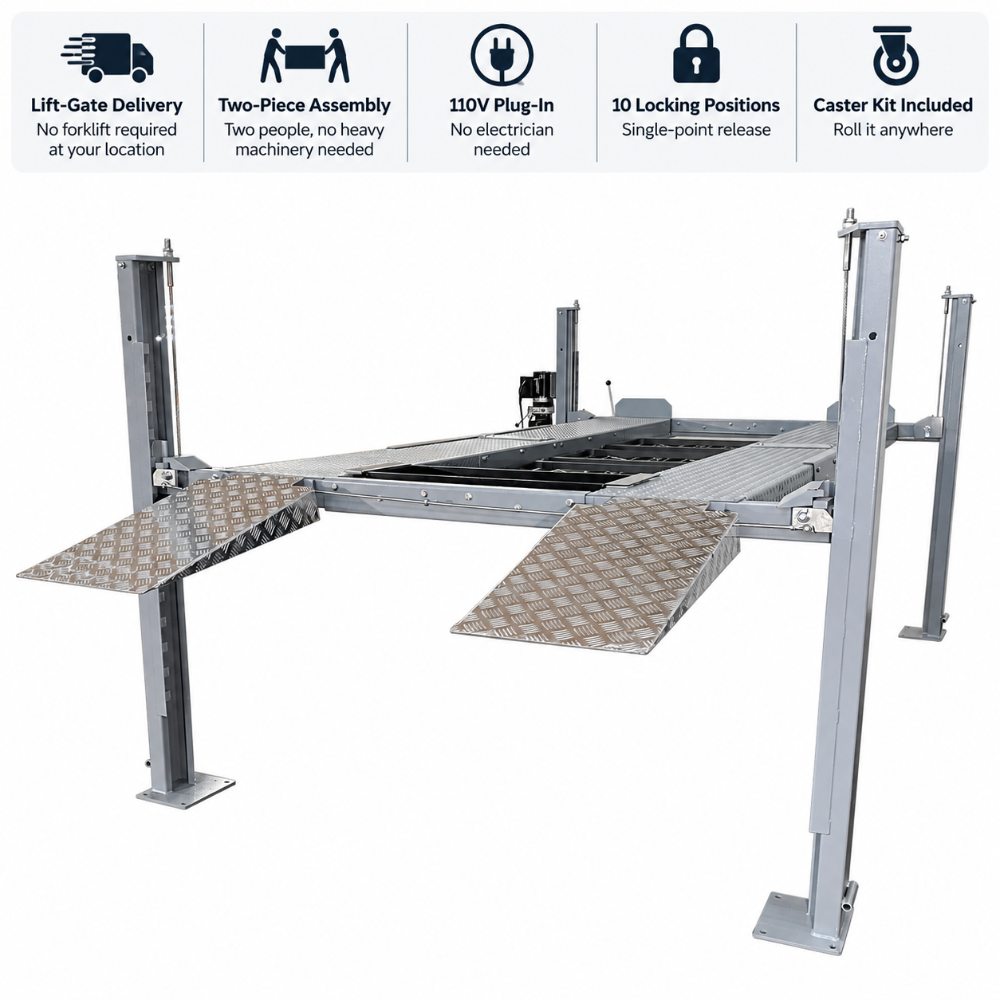

✔ Lift-Gate Delivery — No Forklift Required

The NSS8X-1 ships in two pieces specifically so it can be delivered to addresses with no forklift, no loading dock, and no heavy machinery. A lift-gate service unloads both pieces at your location. This is the single feature that separates the NSS8X-1 from the standard NSS-8 — the same lift, delivered where a standard freight drop cannot go.

✔ Two-Person Assembly — No Heavy Machinery Needed

Two people can unpackage and assemble the NSS8X-1 without any heavy lifting equipment. The two-piece design breaks the lift at the runway joints and crossrails — manageable pieces that two people handle without a crew or a machine.

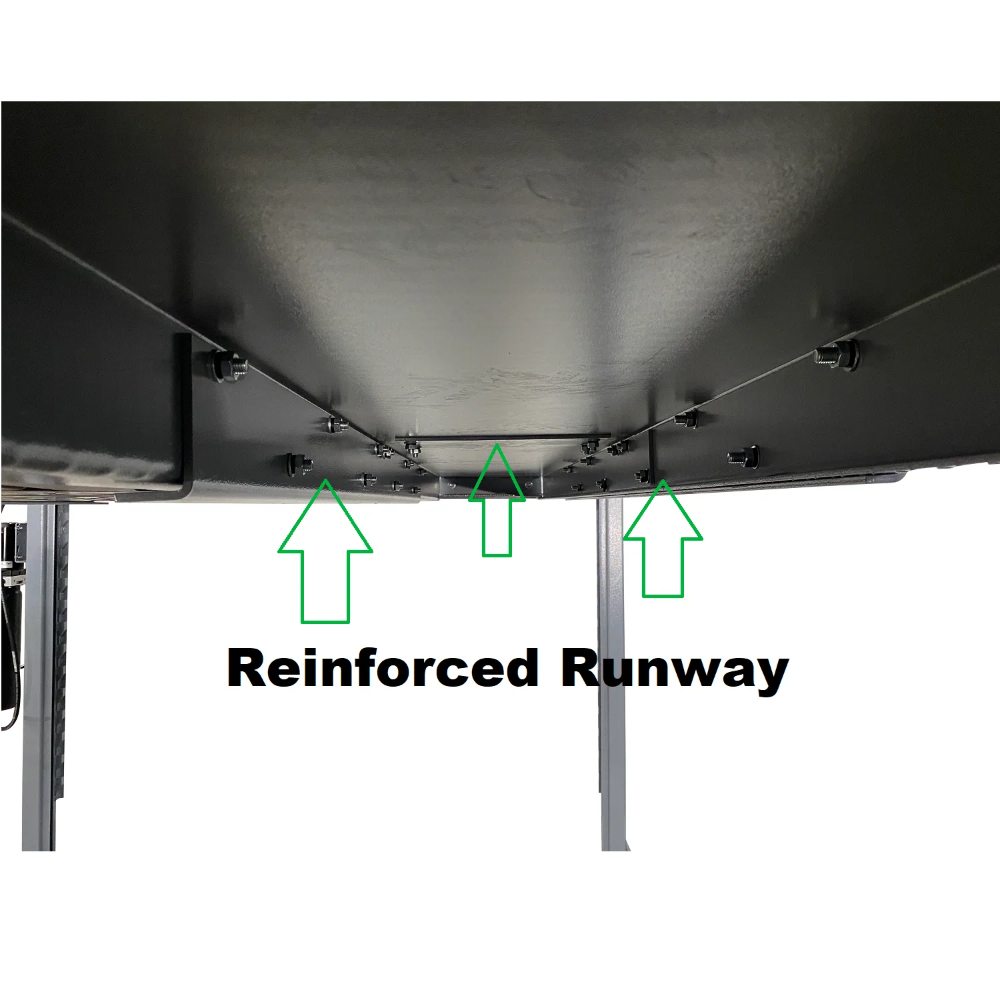

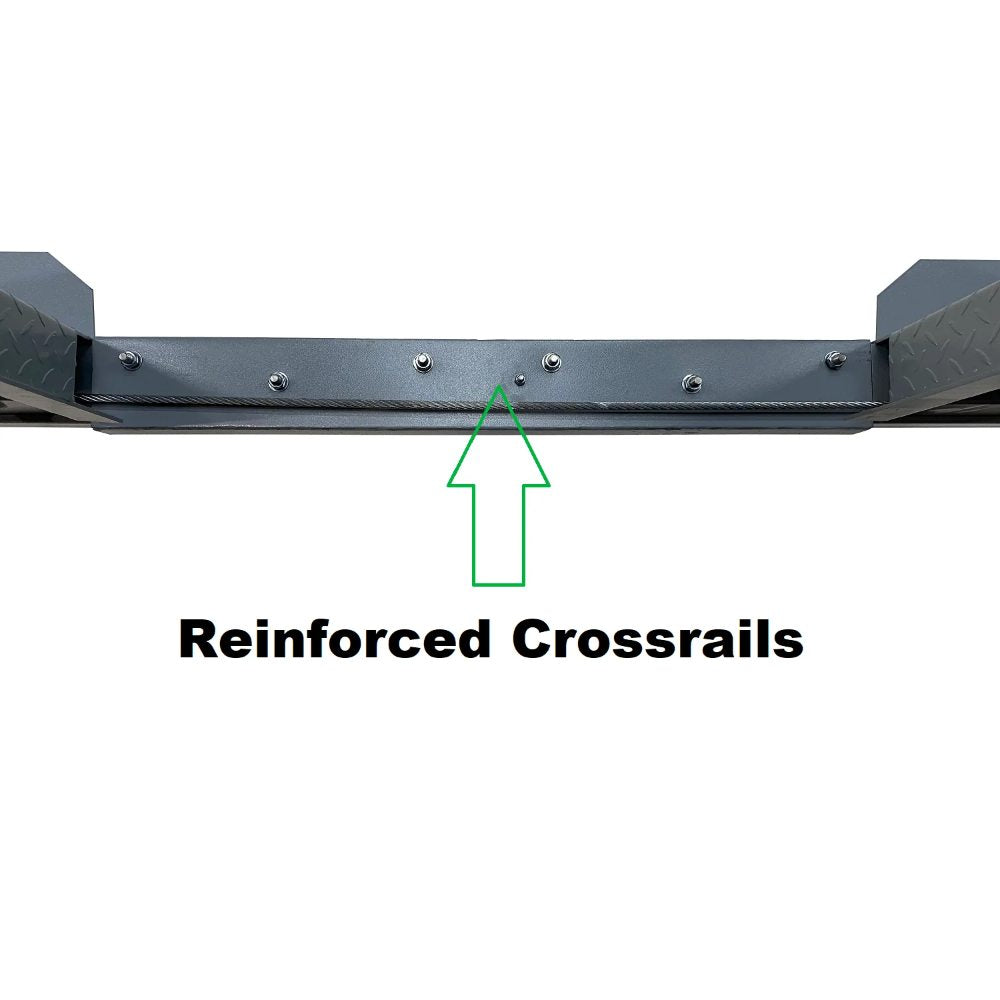

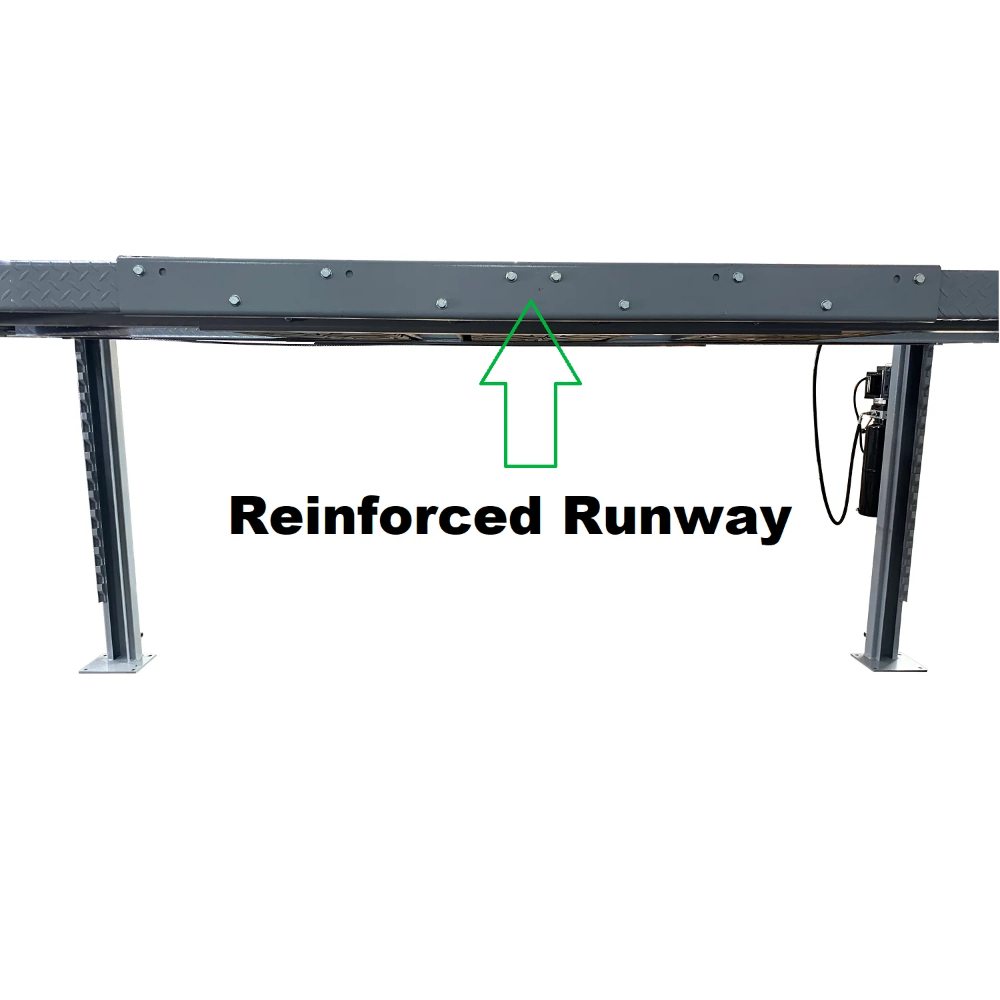

✔ Reinforced Runways and Crossrails — Full 8,000 lb Capacity

The runways and crossrails are reinforced at the assembly joints with bolted reinforcement plates. The load path is the same as a one-piece lift — the reinforcement ensures the NSS8X-1 holds its full 8,000 lb rated capacity once assembled. No compromise on strength for the convenience of residential delivery.

✔ 10-Position Automatic Lock Ladder — Single-Point Release

Ten automatic locking positions engage as the lift rises. The vehicle rests on mechanical steel locks rather than hydraulic pressure — the right choice for a lift that holds a vehicle for months rather than minutes. A single-point release drops all four columns together from one location — no walking around the lift to free each post individually.

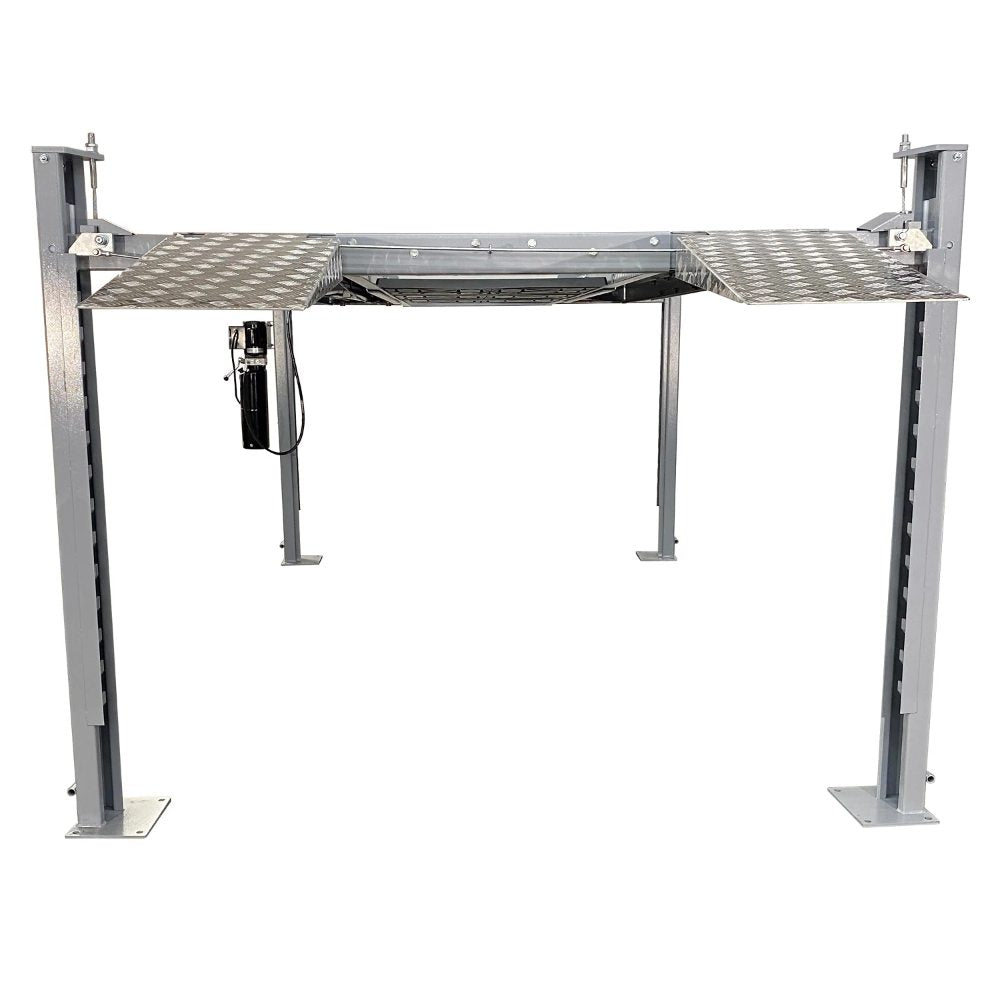

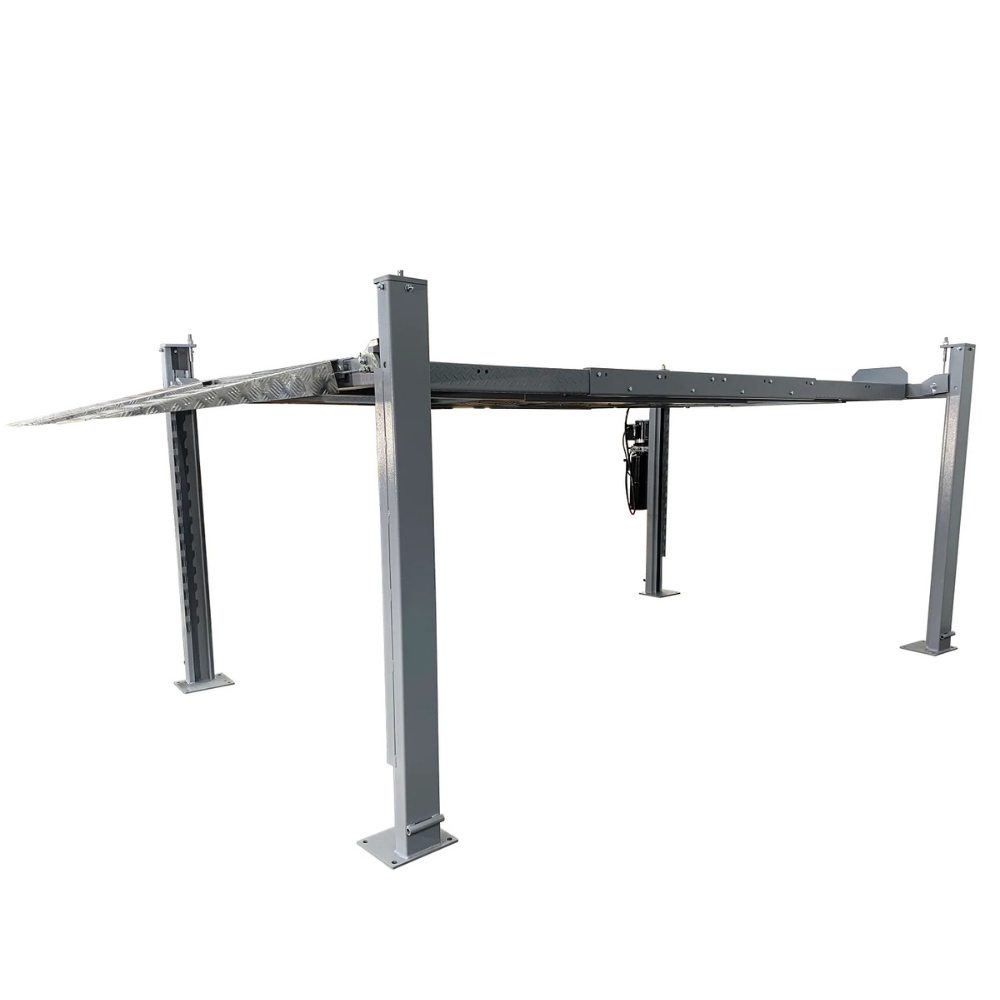

✔ 72-Inch Lift Height — 69 Inches of Working Clearance

Lift height at the top of the runway is 72 inches. Height under the runway is 69 inches — the space you work in with the deck over your head. A passenger car parks cleanly underneath while you walk through the bay without ducking.

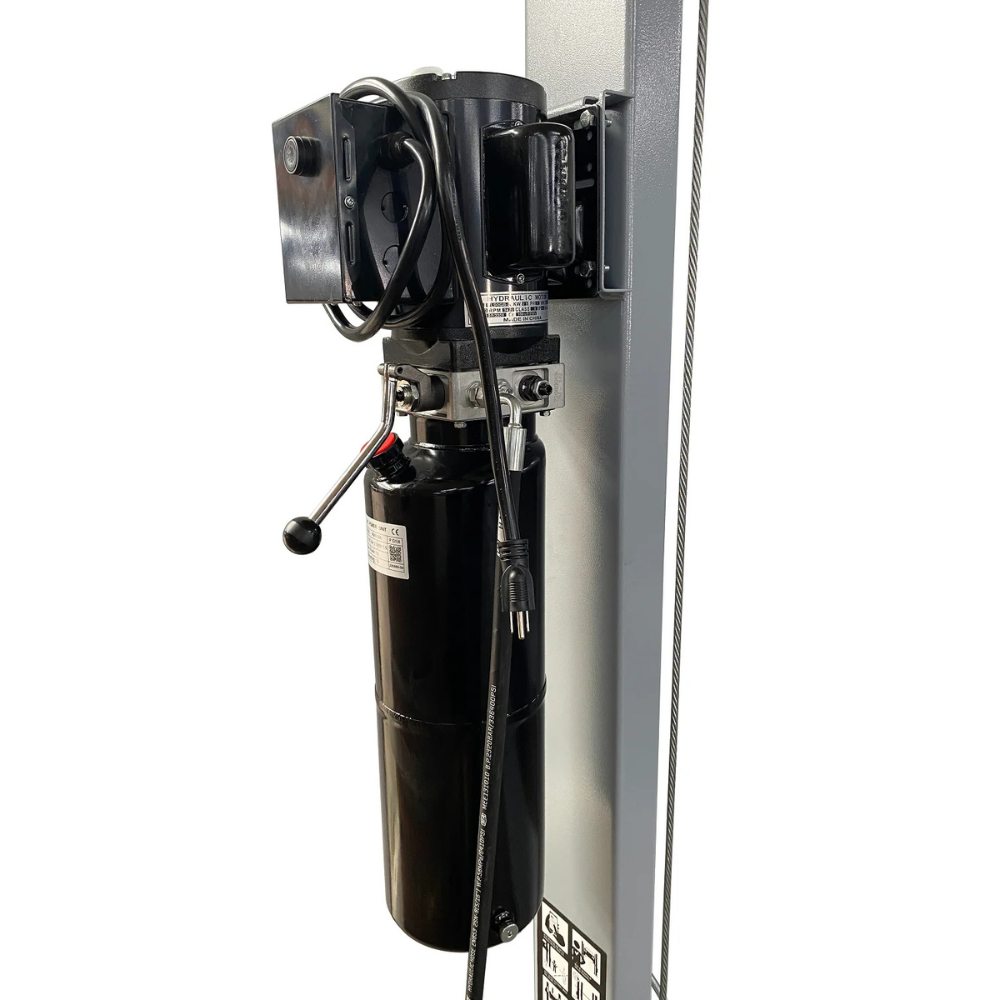

✔ 110V Plug-In Operation — Standard Garage Outlet

Runs on standard 110V household power from a normal garage outlet. No electrician, no dedicated circuit, no delay between delivery and first use. Full lift cycle completes in approximately 40 seconds.

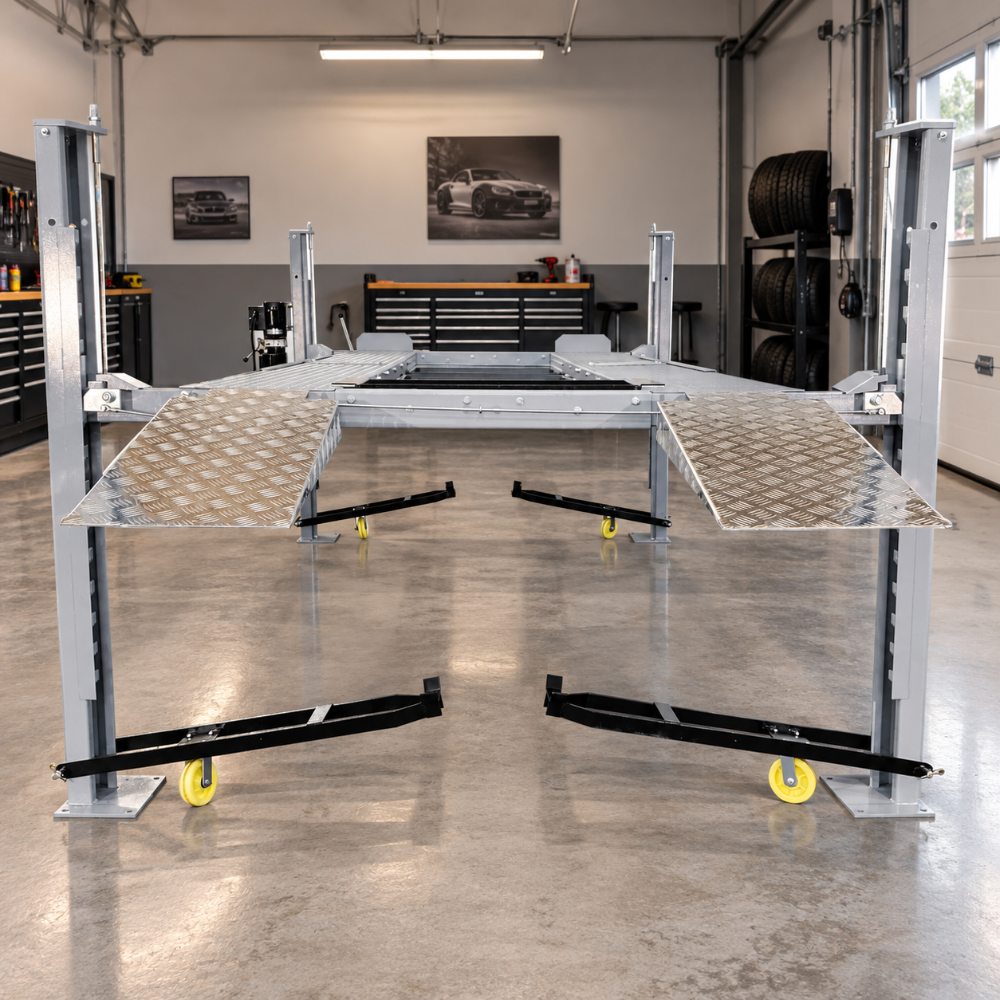

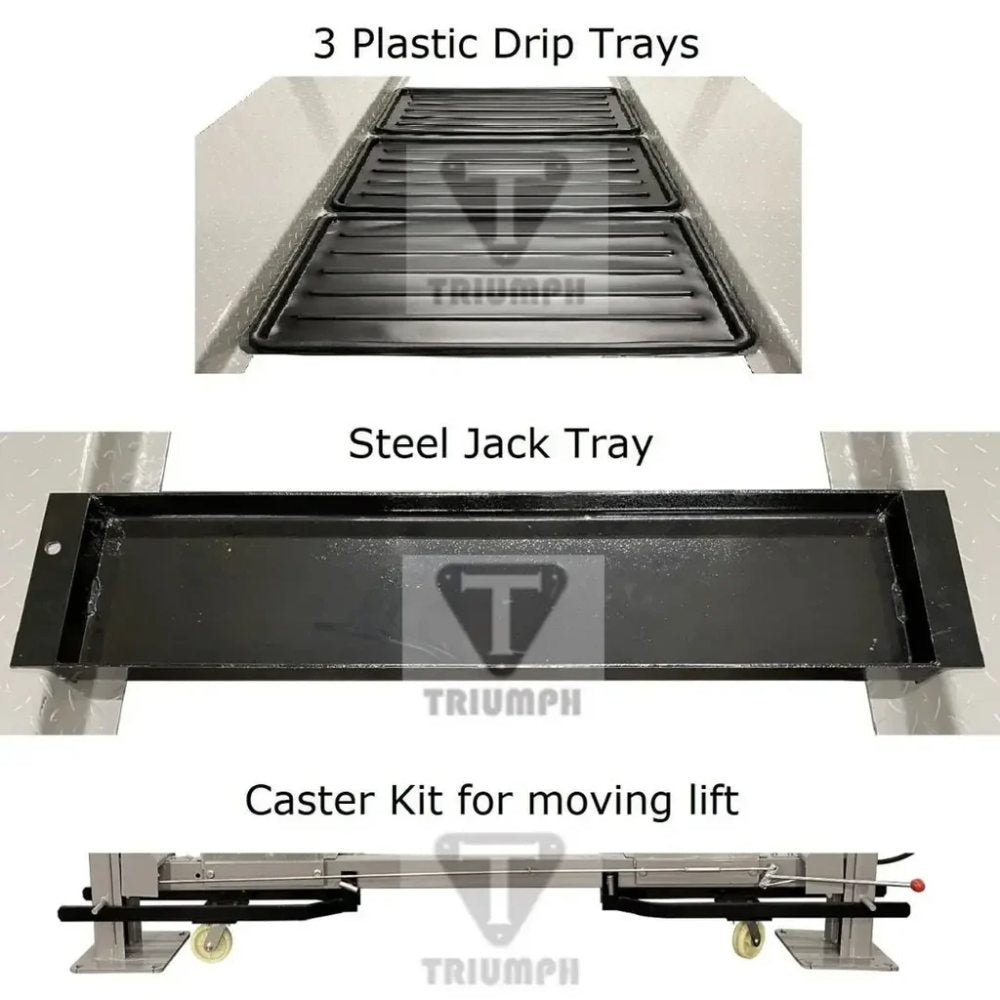

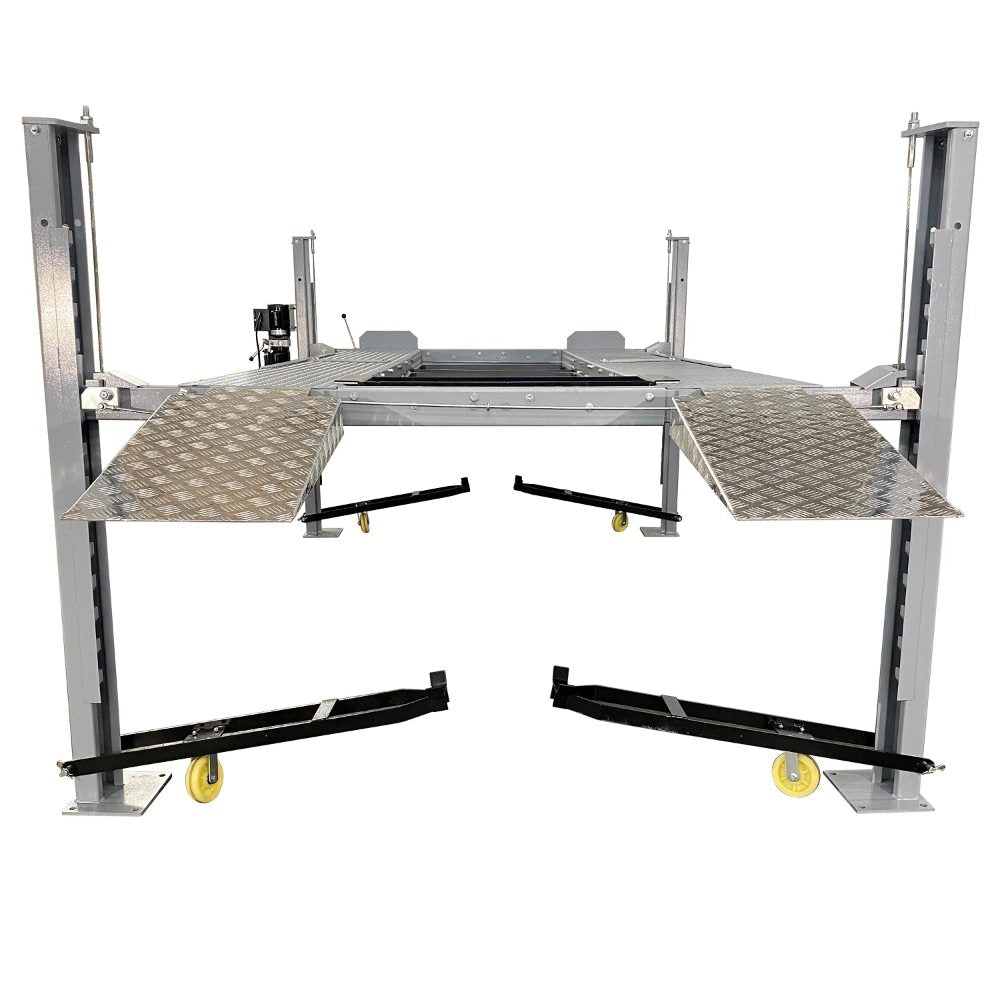

✔ Caster Kit, Jack Tray & Three Drip Trays — All Included

Caster kit for repositioning the assembled lift around the garage. Jack tray for one-end service with a standard bottle or floor jack. Three drip trays to catch oil, coolant, and brake fluid from the upper vehicle before they reach the one parked below. All three included in the box at no extra charge.
