The Triumph NSS-8 8,000 lb Four-Post Lift Built for Real Garages

The Triumph NSS-8 8,000 lb Four-Post Car Lift adds practical vehicle storage and service capability to your garage. Its proven four-post design supports up to 8,000 lbs, making it suitable for a wide range of cars, SUVs, and light-duty vehicles.

With a 72-inch lift height and up to 69 inches of clearance beneath the runways, the NSS-8 can create additional parking space or provide easier access for routine maintenance. Automatic safety locks engage at 10 positions, while the single-point lock release simplifies lowering.

A caster kit, jack tray, and three drip trays are included as standard. The unloaded lift can be repositioned around the garage, while the jack tray and drip trays add extra flexibility for service and stacked vehicle storage.

Powered by 110V, 30A, the NSS-8 reaches full height in approximately 40 seconds and uses a time-tested design that has been used for more than 20 years.

Triumph NSS-8 8,000 lb Four-Post Car Lift Features

Why Buy From Bay One Auto Equipment?

Price Match Guarantee

Price Match Guarantee

Best Prices Online, Guaranteed

Placeholder Image

30 Day Easy Returns

No Questions Asked

Expert Support

Expert Support

Real People, Real Answers

Satisfaction GuaranteedSatisfaction Guaranteed

Satisfaction Guaranteed

Quality Products, Backed by Us


What Makes the NSS-8 Car Lift Stand Out from Every Other Vehicle Lift

✔ 10-Position Adjustable Lock Ladder

Automatic safety locks engage at 10 different positions as the lift rises, giving you multiple secure working and storage heights. A single-point lock release lets you disengage the locking system from one location when lowering the lift.

✔ 110V Plug-In Operation

The NSS-8 operates on 110V, 30A power and reaches full lift height in approximately 40 seconds. Verify that your garage has a suitable 30A electrical supply and receptacle before installation.

✔ Caster Kit Included Standard

The included caster kit allows you to reposition the unloaded lift around your garage when your layout changes. Move it between bays or reposition it when additional floor space is needed, without purchasing a separate caster kit.

✔ Three Drip Trays Included

Three included drip trays fit between the runways to help catch oil, coolant, and other fluid drips from the upper vehicle before they reach the vehicle parked below.

✔ Jack Tray for One-End Service

The included jack tray fits between the runways and provides a platform for a suitable bottle jack or floor jack, allowing you to raise one end of the vehicle for applicable maintenance and wheel-service tasks.

✔ 20+ Years of Field-Proven Design

The NSS-8 uses a time-tested four-post design that has been used for more than 20 years, giving you an established platform for both vehicle storage and routine service work.

Triumph NSS-8 8,000 lb Four-Post Car Lift in Garage

Triumph NSS-8 — Does It Fit Your Garage?

Ceiling Height

The NSS-8 stands 84 inches tall at its columns. That's the lift alone, no vehicle on it. If you're planning to stack two vehicles, your ceiling needs to clear the roof of whatever is sitting on the upper runway at your chosen lock height. Measure your actual vehicles — don't estimate.

Floor Length

The NSS-8 runs 175 inches without approach ramps and 195 inches with ramps deployed. Add walking clearance at both ends before deciding it fits. Most standard two-car garages handle this comfortably, but measure yours before ordering.

Floor Width

The overall base width is 106 inches. That's just under 9 feet. Check your bay width against that number first — width is the dimension that most often catches buyers off guard after delivery.

Vehicle Size

The drive-thru opening between the posts is 93 inches wide. Runways are 18 inches wide, sitting 37 inches apart, and run 165 inches in length. Full-size pickups, crew cabs, and most large SUVs load and park without issue. If your vehicle has an unusually long wheelbase, measure it against the 165-inch runway before ordering.

Power

The NSS-8 runs on 110V with a 30A breaker. Check that your garage has a 30A receptacle available before delivery day — not after.

Foundation

Triumph's installation manual covers the slab requirements for this lift.

Triumph NSS-8 8,000 lb Four-Post Car Lift Raised in Garage

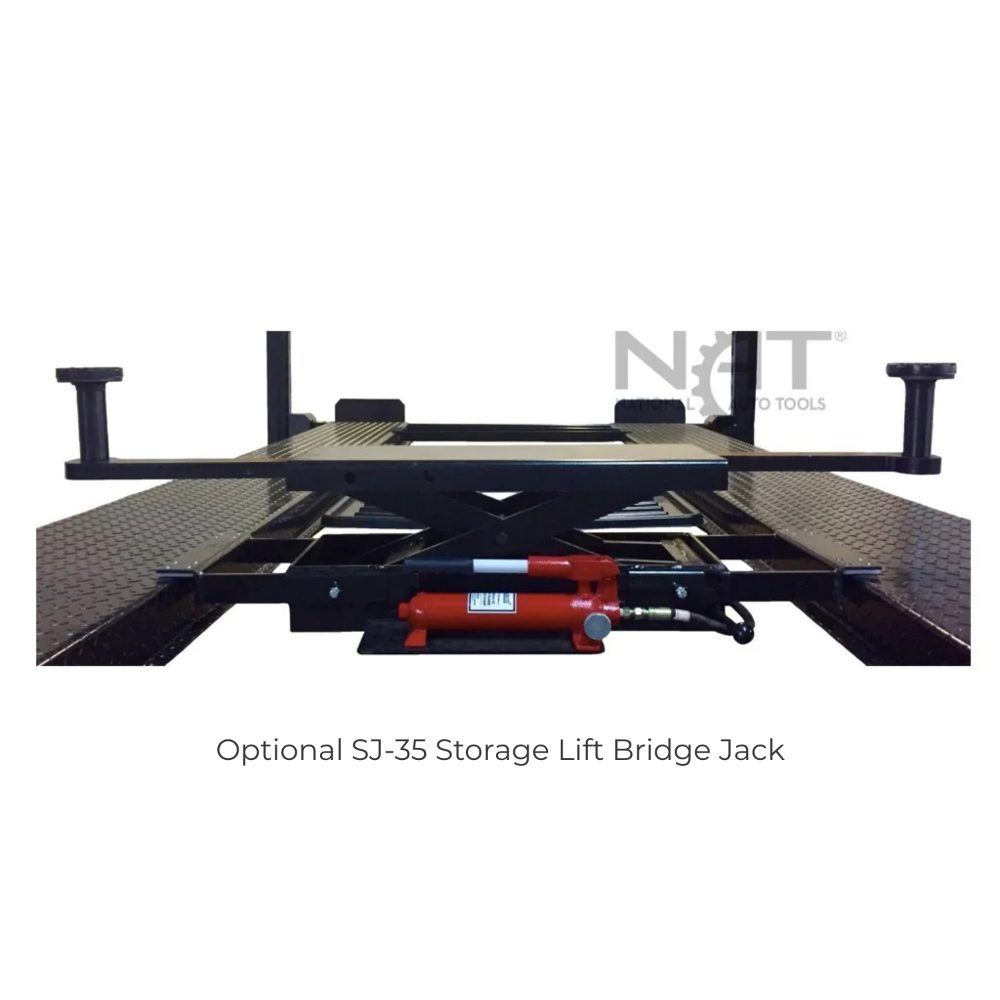

Triumph SJ-35 Storage Lift Bridge Jack (Optional)

The Triumph SJ-35 is designed specifically for the Triumph NSS-8 and NSS-8XLT lifts. It slides into the runway gap to give you wheels-off access for brake jobs, tire rotations, and suspension work without removing the vehicle from the lift.

Operated by manual pump, the SJ-35 raises from a collapsed pad height of 4.75 inches up to 11 inches, with extensions available up to 16.5 inches. The adjustable pad width spans 31 inches to 46 inches, fitting the NSS-8's 37-inch between-runway gap cleanly.

  • Fits the NSS-8 and NSS-8XLT
  • Manual pump operation — no air or power supply needed
  • Pad height: 4.75" collapsed / 11" extended / 16.5" with extensions
  • Adjustable pad width: 31" min / 46" max
Triumph NSS-8 8,000 lb Four-Post Car Lift - Optional SJ-35 Lift Jack

What's Included With Your NSS-8 Car Lift

Everything you need is included with your Triumph NSS-8 and more!

  • Triumph NSS-8 Car Lift
  • Four Lifting Columns with Approach Ramps
  • Hydraulic Power Unit and Hose
  • Four-Wheel Caster Kit
  • Steel Jack Tray
  • Three Drip Trays
  • Assembly Hardware
  • 1-Year Warranty

Triumph NSS-8 | 8,000 lb Four-Post Car Lift Technical Specifications

Manufacturer Triumph
Lifting Capacity 8,000 lbs
Lift Height 72"
Height Under Runway 69"
Lift Time 40 seconds
Locking Positions 10 Positions
Lock Release Single Point
Overall Height 84"
Overall Width 106"
Drive-Thru Width 93"
Between Runways 37"
Runway Width 18"
Runway Length 165"
Overall Length (with ramps) 195"
Overall Length (without ramps) 175"
Lowered Height 5"
Base Plate Size 12" x 12"
Voltage 110V
Shipping Weight 1,600 lbs
Warranty 1-Year Warranty on Parts


Triumph NSS-8 Four-Post Car Lift Product FAQs

Does the Triumph NSS-8 require special electrical wiring or a dedicated circuit?

No 220V circuit is needed — the NSS-8 runs on 110V, 30A power. A 30-amp, 110V receptacle isn't a standard wall outlet, though, and most garages don't have one. Have a licensed electrician confirm your circuit or add a 30A receptacle before delivery. If you already have a suitable 30A, 110V outlet, the NSS-8 plugs straight in.

Does the Triumph NSS-8 four-post lift need to be bolted to the floor?

No permanent floor installation is required. The NSS-8 is a free-standing, portable lift. The included caster kit lets you reposition it around your garage whenever your layout changes. Your concrete must meet the minimum requirements — 4" thickness at 3,000 PSI — but no anchoring or concrete work is needed.

What vehicles will fit on the NSS-8 car lift?

The NSS-8 supports most cars, SUVs, and light-duty trucks up to 8,000 lbs. The 93" drive-thru width accommodates crew cabs and full-size pickups, and the 165" runway length handles most standard wheelbases. Always verify your specific vehicle's weight and wheelbase against the specs before ordering.

Can I do brake and tire work on the Triumph NSS-8, or is it storage only?

The NSS-8 handles both storage and service. The included jack tray accepts a standard bottle jack or floor jack to lift one end of the vehicle off the runways, giving you access for brake jobs, tire rotations, and basic suspension work. For full wheels-off access, the Triumph SJ-35 rolling bridge jack is available as an add-on.

How is the Triumph NSS-8 delivered and do I need a forklift?

The NSS-8 ships LTL freight at approximately 1,600 lbs. The freight carrier will contact you to schedule delivery, but the driver does not unload the lift. You will need a forklift, tow truck, Bobcat, or similar equipment rated for 1,600 lbs available at your delivery address. Plan for this before placing your order.
